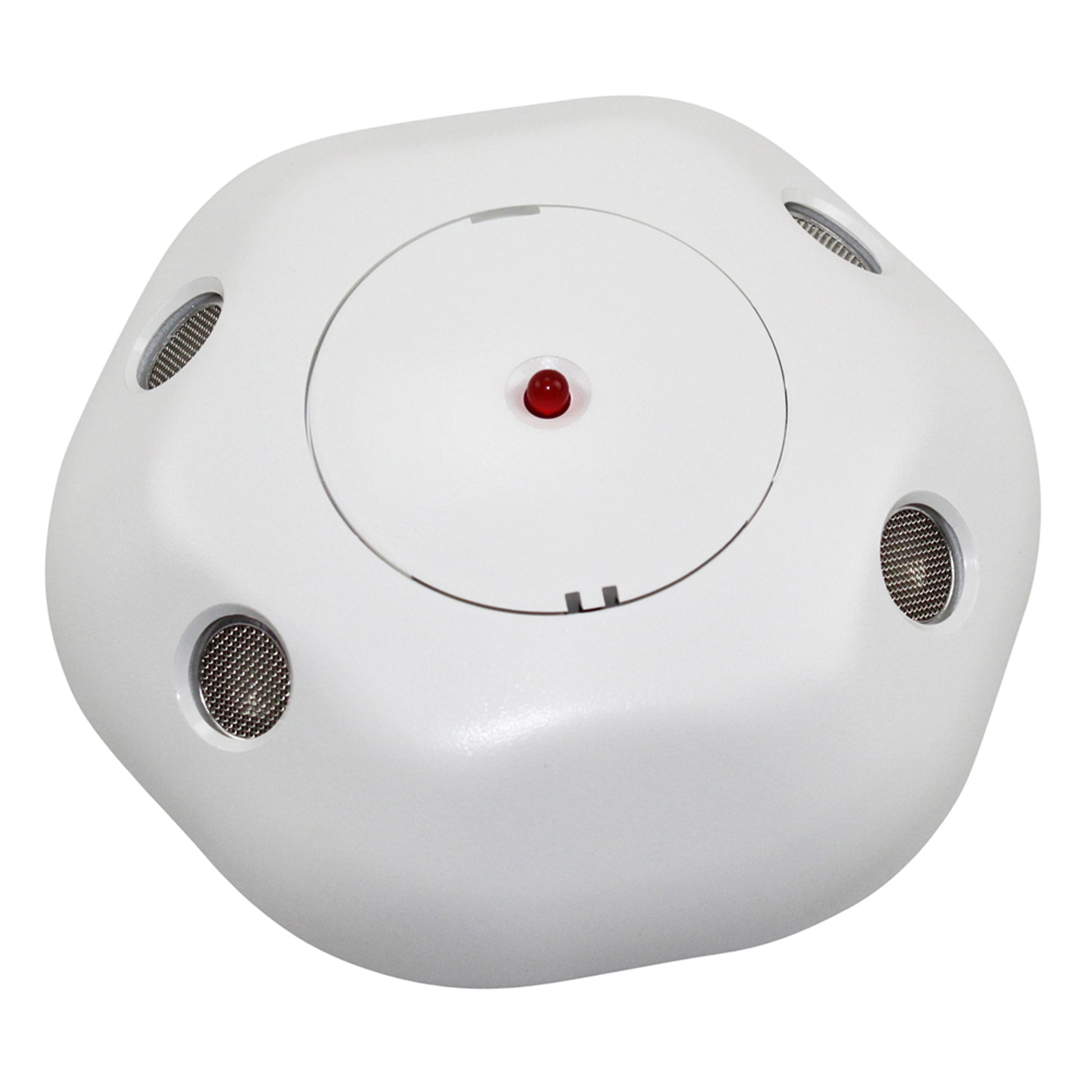

WATTSTOPPER WT-1100 MOTION SENSOR ULTRASONIC CEILING OCCUPANCY SENSOR

Features:

• The Watt Stopper ultrasonic sensors operate on 24VDC automatically turn lighting systems on and off based on occupancy.

• The sensors use Doppler technology to sense occupancy. They broadcast high frequency sound waves into the controlled area.

• Movement in the area will cause the sound waves to return to the sensor at a fast or slower rate resulting in a Doppler shift in occupancy detection.


• WT sensors are advanced ultrasonic occupancy sensors with a 32 KHz frequency. This 24 VDC ultrasonic sensor utilizes advanced, omnidirectional, Doppler technology. When an ultrasonic sensor detects movement in a controlled area, it switches lighting on through a Watt Stopper/Legrand power or auxiliary pack (sold separately). The sensor controls the power pack through low voltage wiring. Once the area is vacated and the time delay has elapsed, lighting systems automatically switch off.Placement of ultrasonic sensors is critical for proper operation. It is best to place the sensor so that ithas a clear view of all desktops and work surfaces within the coverage area.Note: 24V sensors use the following power pack (Sold Separately): #149; Watt Stopper BZ50 Features:#149; Ultrasonic Technology with 32 KHz Frequency #149; Utilizes Advanced, OmniDirectional, Doppler Technology #149; Advanced Signal Processing Automatically Adjusts Detection Threshold #149; UserAdjustable DIP Switch Time Delay and Sensitivity Settings#149; 1100 sq ft Coverage#149; Isolated Relay Allows Sensor to Interface with Building Control Systems Specifications:#149; Voltage: 24V#149; Area of Coverage: Omnidirectional transmission 360deg twosided, 1100 sq. ft.#149; Current: 40 mA#149; Temperature and humidity resistant 32 kHz receivers#149; Delay: Digital DIP switch time delay (15 seconds to 30 minutes)#149; Feature: Isolated relay with N/O and N/C outputs; rated for 1 Amp at 30 VDC/VAC#149; Mounting: Mounts to ceiling tiles or Wiremold V5738WH box (sold separtaley)#149; Dimensions: 4.8" x 1.5" (122mm x 38mm) diameter x depth#149; UL and cUL listed#149;

Color: White

Condition: New

Dims: -Inches x -Inches x -Inches (Length Width Height)

Model: WT-1100

Package quantity: 1
