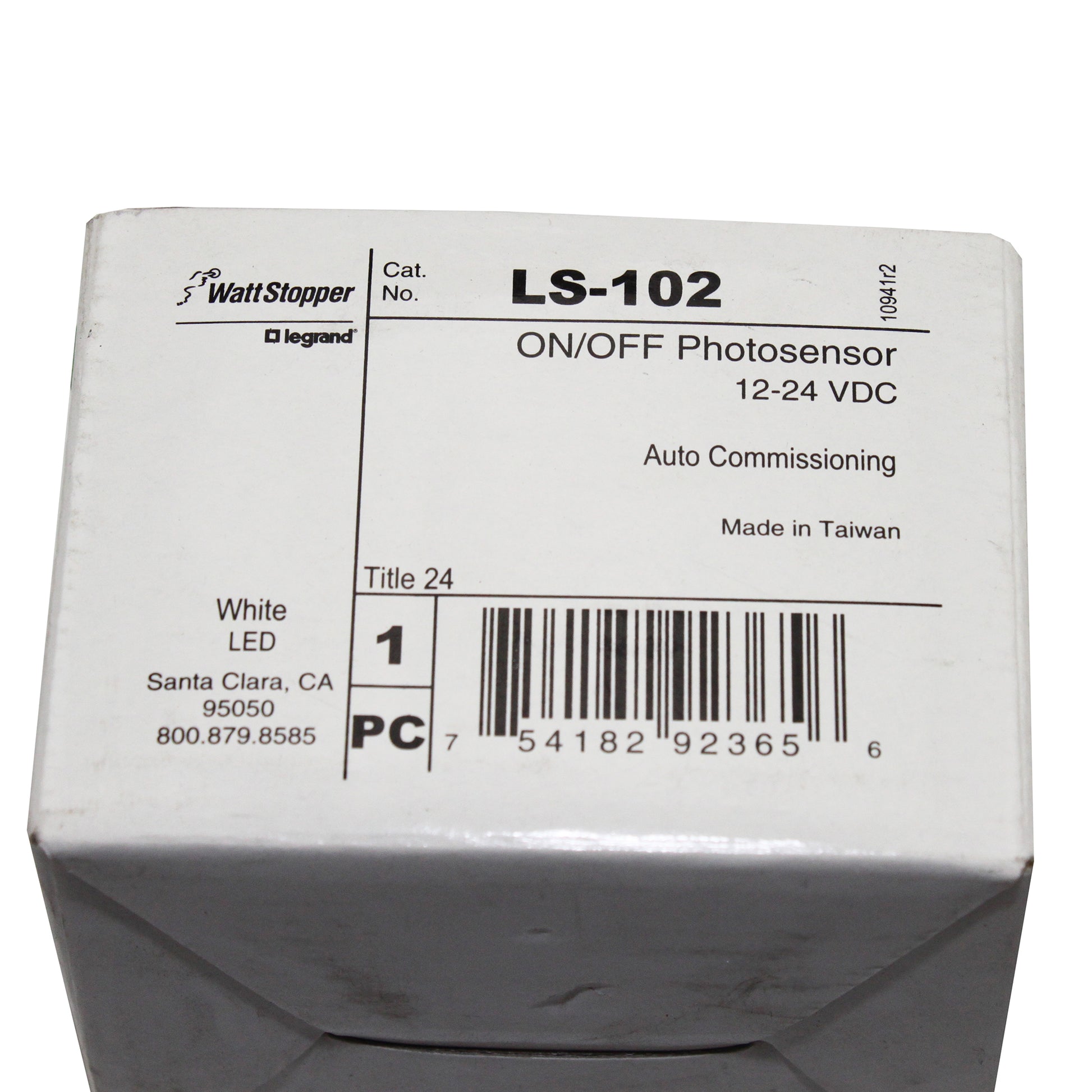

WATTSTOPPER LS-102 CLOSED LOOP PHOTO SENSOR CONTROLLER

Product information

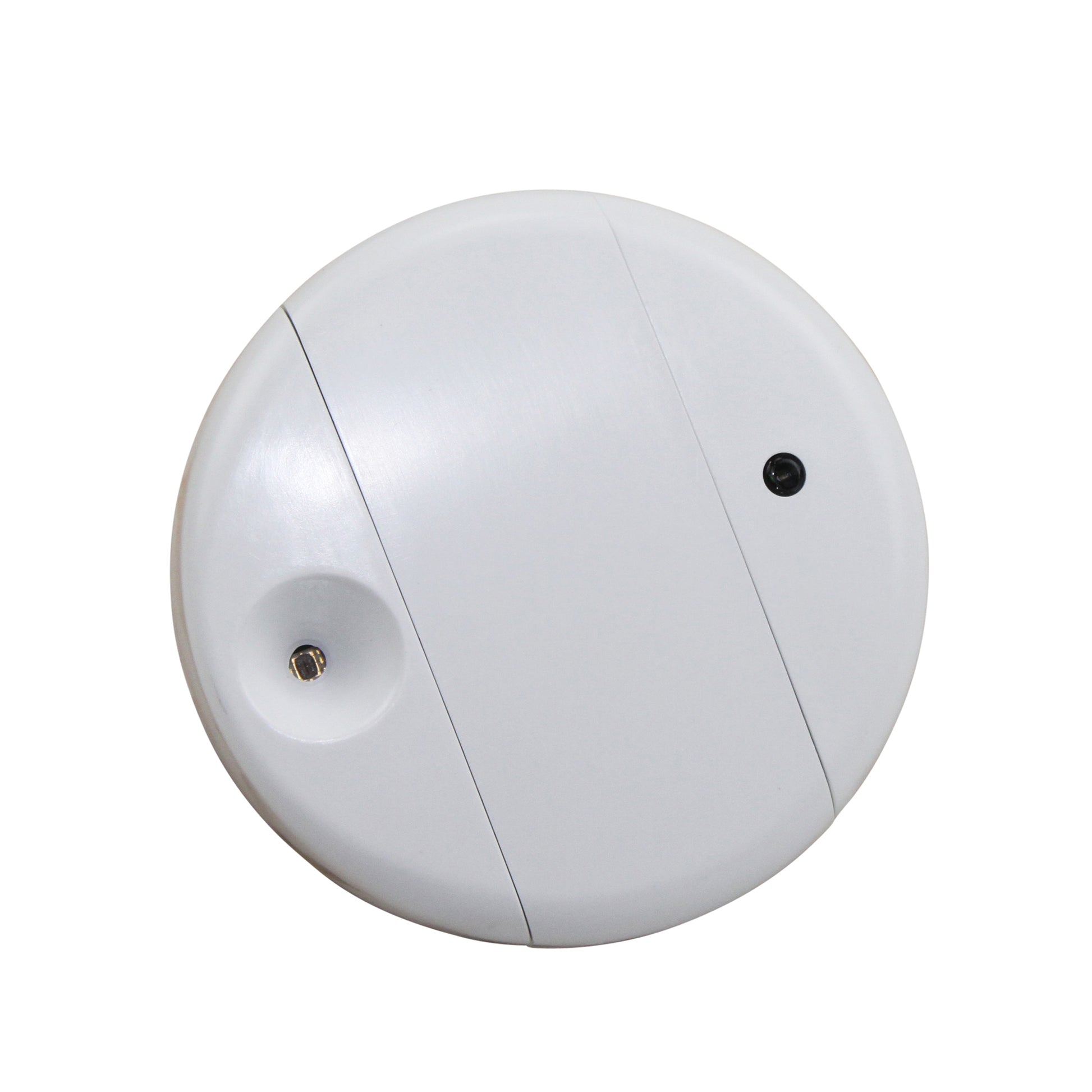

Photosensor, Sensor Type Daylight, Coverage 1400 sq. ft., Installation Type Ceiling, Viewing Angle 100 Degrees , Timer Range 3/10/20/30 min., Time Delay Manual, Watts @ 120V -, Watts @ 277V -, Voltage 24VDC, For Use With All Lighting Loads, Color White, Standards UL Listed, Includes Photocell. The LS-102 Daylighting Controller is a single zone, on/off switching device designed to be installed in a closed loop application. A self-contained 24 VDC device with an extended range of 1-1400 footcandles, the LS-102 requires a low voltage power pack to operate. The controller consists of an advanced digital multi-band photosensor, an on-board microcontroller, and an LCD display. This photosensor is positioned behind a 100º cone that cuts off unwanted light, preventing false triggers.
