TORK PP-100R-P4P1 SERIES POOL SPA CONTROL PANELS W/ TIME SWTICH, 240/120V

Tork - PP-100R-P4P1
Condition: New


AVAILABLE STOCK: 292

  • $199.00
  • Save $209


    PRODUCT INFORMATION:

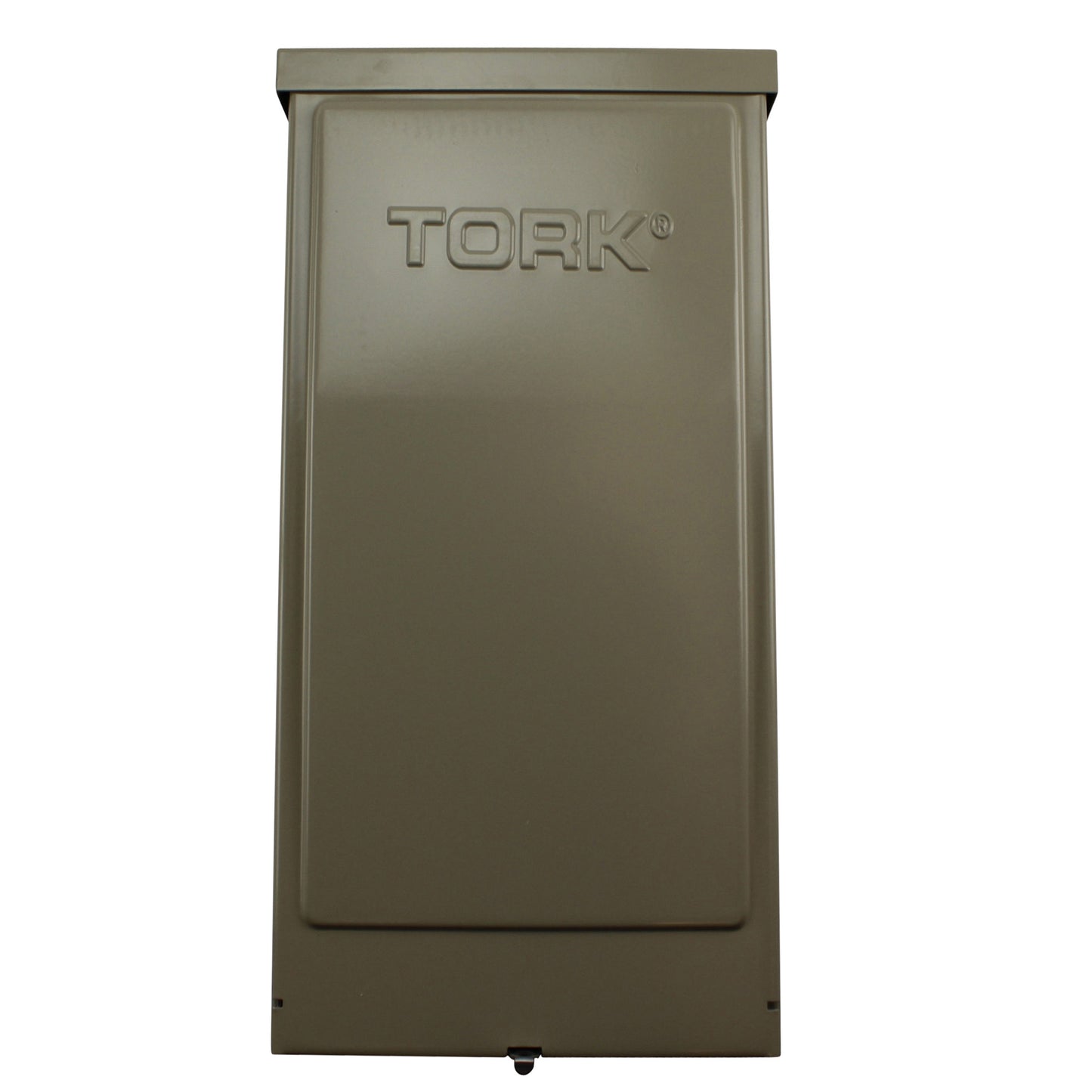

  • Easy-hinge patented removable and reversible door
  • Change from left to right opening
  • Solves installation issues in the field
  • While-in-use compartment: inside mounting for two devices with cord exit
  • Applicable for pumps, swimming pools, fountains, and ponds

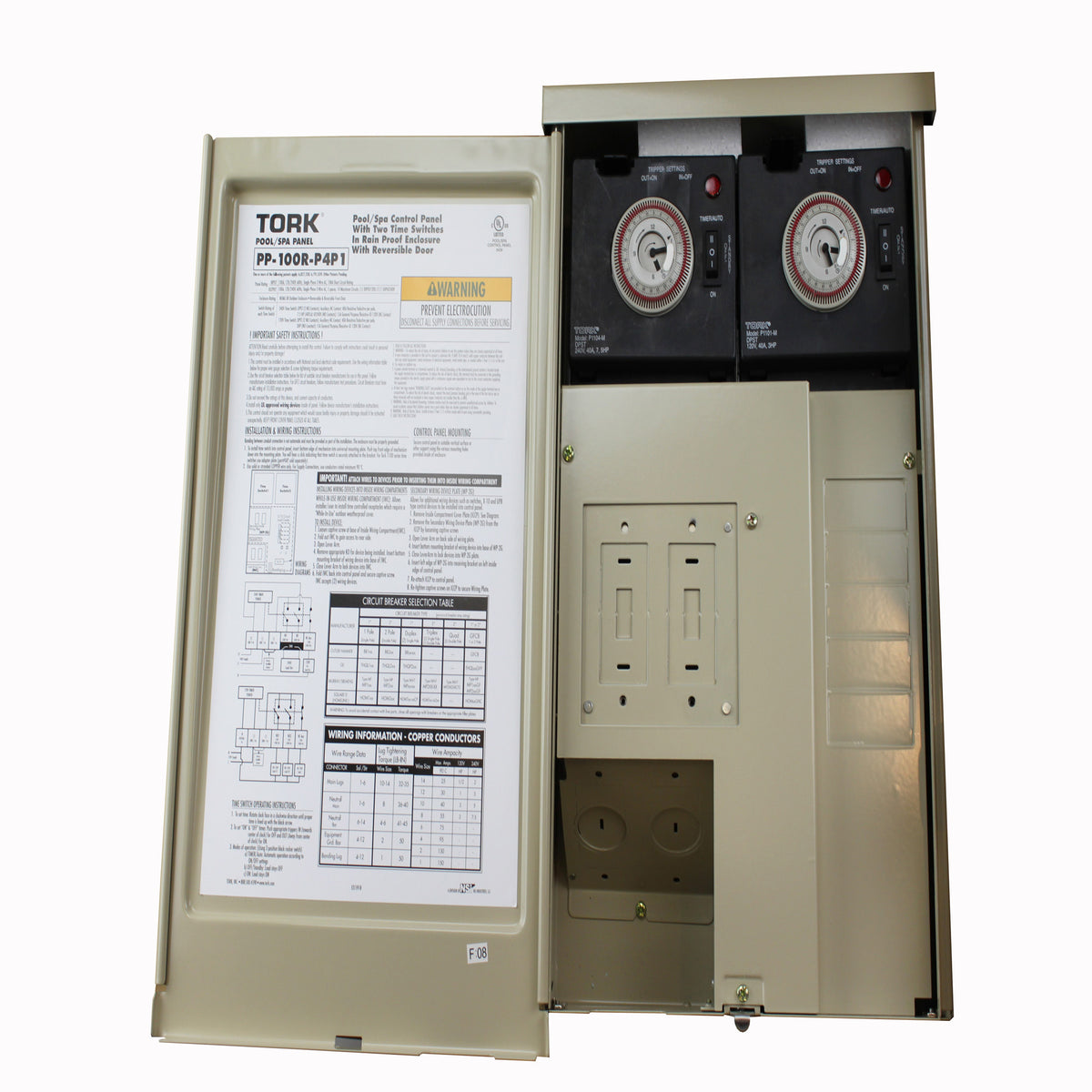

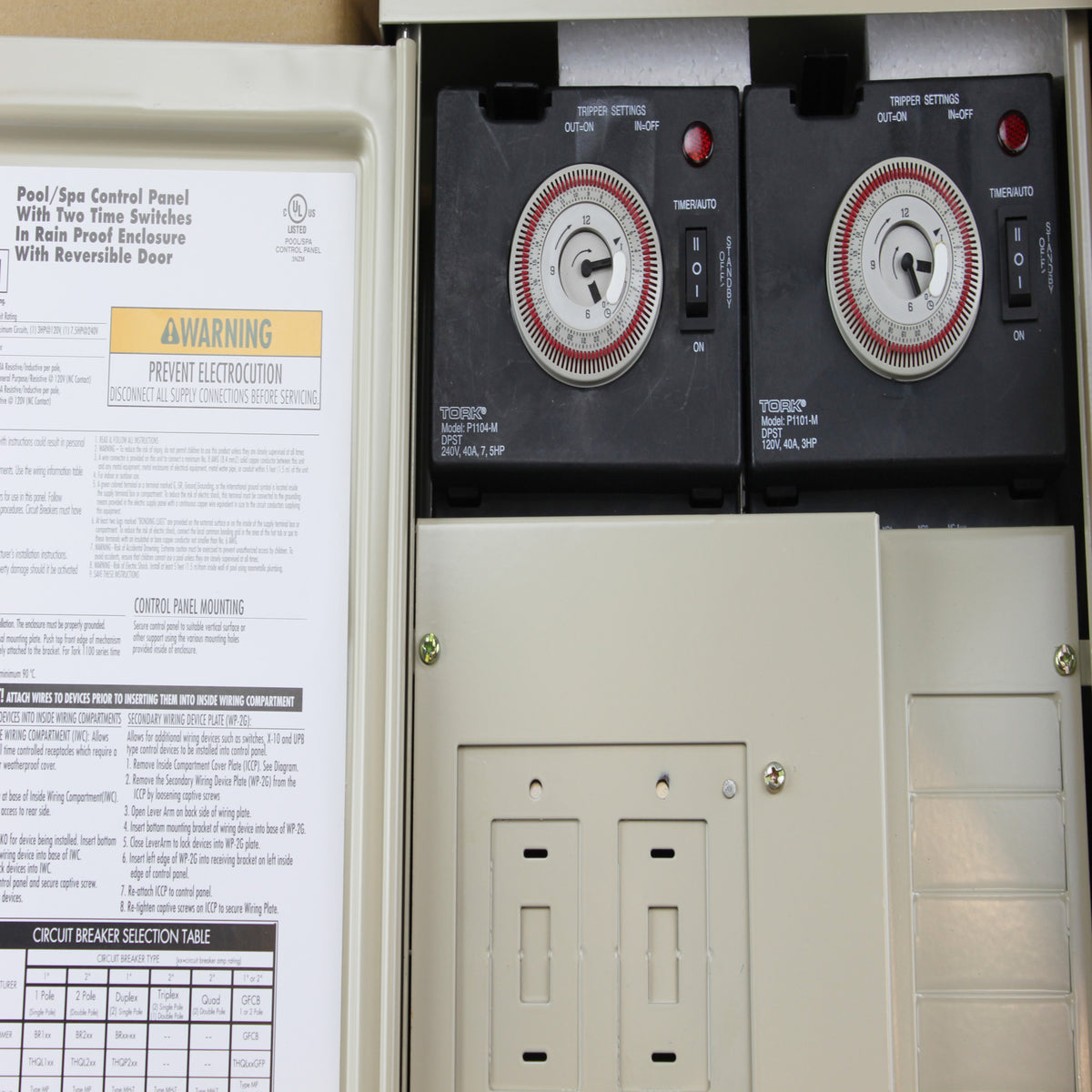

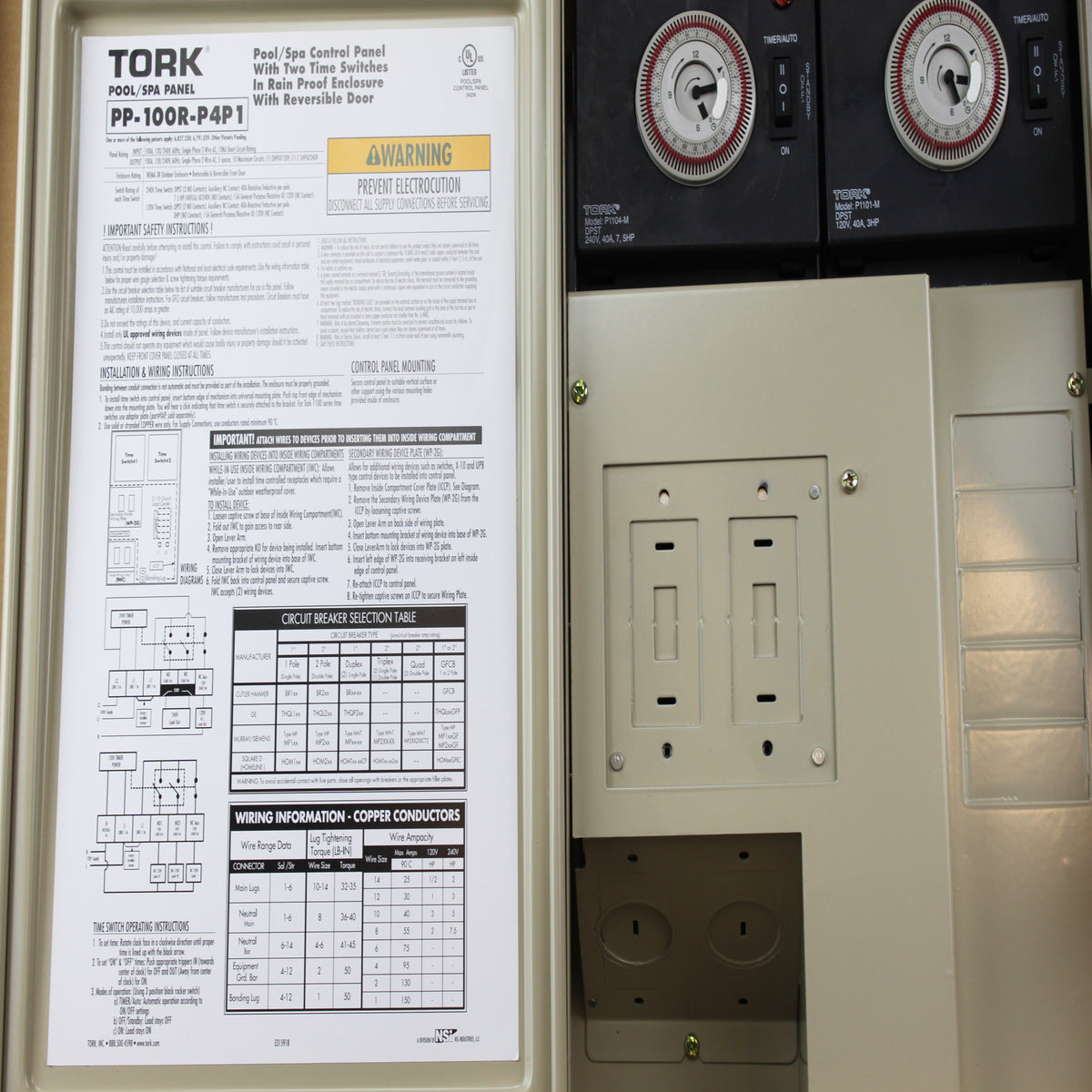

  • COMBINATION PANEL: The PP panel series provides a flexible platform to create a custom pool and spa control at an off the shelf price. Start with a blank panel and addtimers, freeze controls, circuit breakers, switches and outlets for a custom installation. Or select a pre-assembled timer/panel available in many popular combinations. PP-10R: 15 amp timed GFCI protected outlet with additional GFCI outlet. PP-20R: 20 amp load center 120-240V, 1/2 circuit breaker base. PP-100R: 100 amp load center 120-240V, 5/10 circuit breaker base. PP-125R: 125 amp load center 120-240V, 8/16 circuit breaker base. CONTROLS: Freeze protection or mechanical and digital timers are all available with unique features not found elsewhere in the industry. BREAKERS: Listed for Cutler Hammer (BR), GE (THQL), Murray/Siemens (MP) and Square D (HOM) (not included).REVERSIBLE DOOR: Easy-Hinge patented removable and reversible door. Change from left to right opening. Solves installation issues in the field. WHILE-IN-USE COMPARTMENT: Inside mounting for two devices with cord exit. DEVICE MOUNTING: Provision for mounting one or two devices in any combination accepts toggle, GFCI, X-10 and UPB type devices in, PP-100R and PP-125R enclosures. TRANSFORMER: Select panels include 120V input: 100 watt with output 12V/13V or 300 watt with output 12V/13V/14V. COMPACT 2-IN-1: PP-20R-2P1 and PP-20R-2P4 includes two timers in a compact housing. Interlock switch allows second timer to turn ON only if first timer is in operation. ENCLOSURE: Metal NEMA 3R with lockable hasp. NEMA 3R 100 Amp Pool/Spa Panel with Inside Wiring Compartment. Removable/reversible side opening door. 100A, 120/240V, 10 circuit load center. Complete with (1) installed P1104-M and (1) installed P1101-M time switches. Provision for (2) While use wiring devices & (2) Device plates. P1104-M - 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 7.5HP@240V 1NC: 15A Resistive & GP@120V. P1101-M - 24 Hour Mechanical time

      COLOR/FINISH: Ivory
      CONDITION: New
      MODEL NUMBER: PP-100R-P4P1
      PACKAGE QUANTITY: 1
      POWER SPECS: 240-Volt 40-Amps
      DIMENSIONS: 20.0-Inches x 11.0-Inches x 5.0-Inches (Length Width Height)
      AVAILABLE STOCK: 292
