THOMAS BETTS 2559 LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1-1/4" MALE (5 PACK)

Features:

• Male connector has a trade size of 1-1/4 Inch and provides superior connectivity

• Dimension: 2-3/32 Inch Dia x 2-5/32 Inch Length

• Reduced overall size, fits into tighter spaces

• Fittings used in a trade size knockout requiring a NEMA 3R, 4, 6 or 13 listing require a 5262 Series sealing ring

• Box of 5

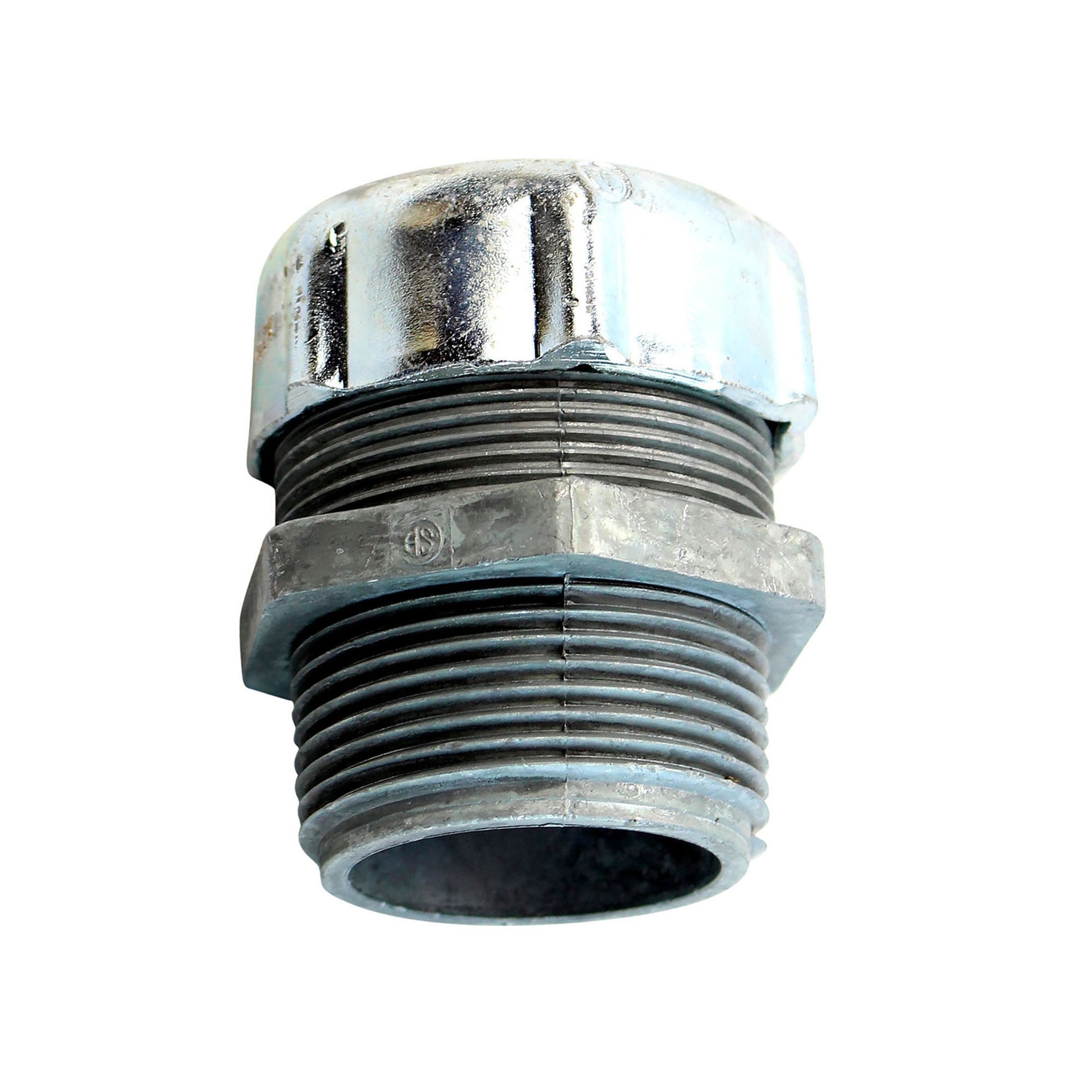

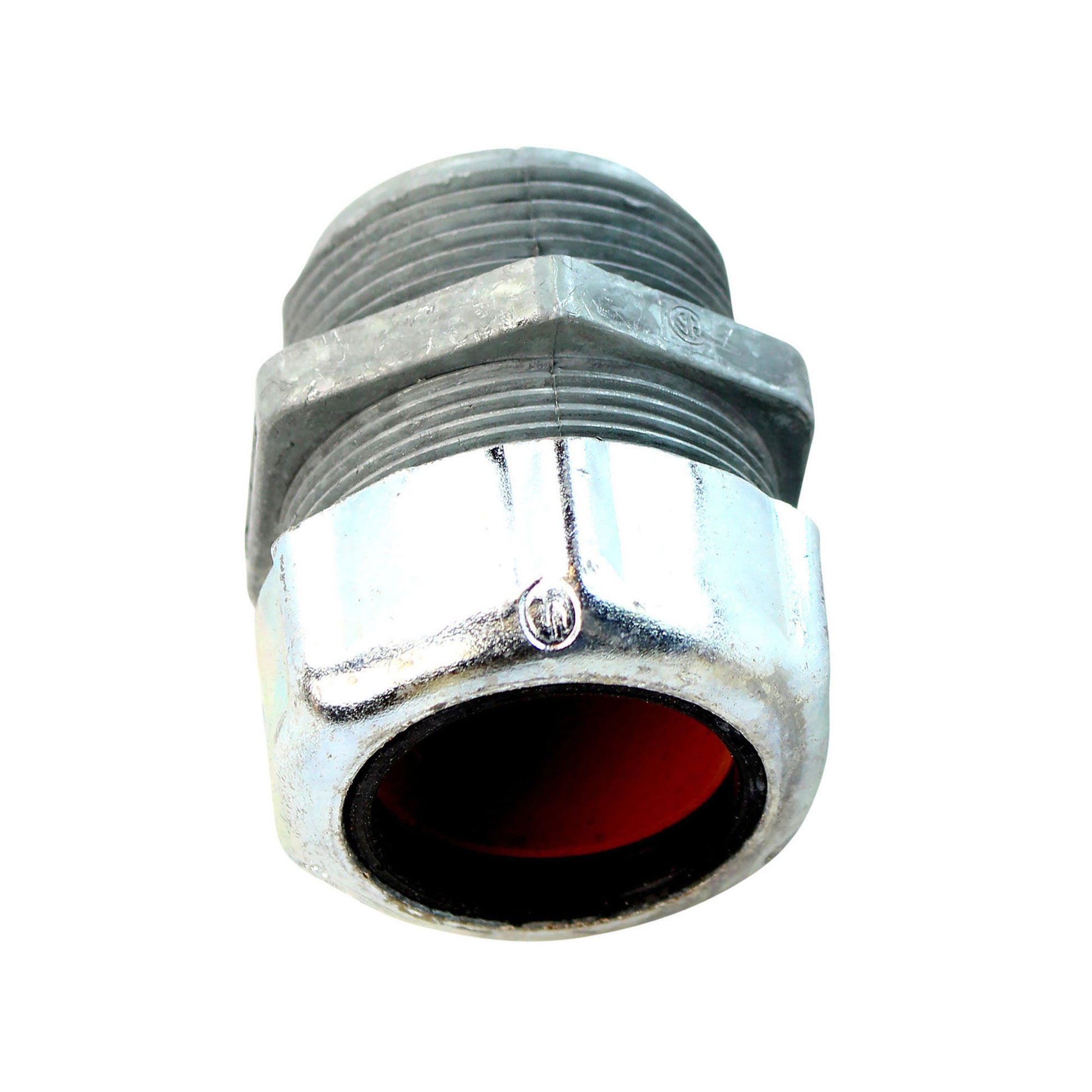

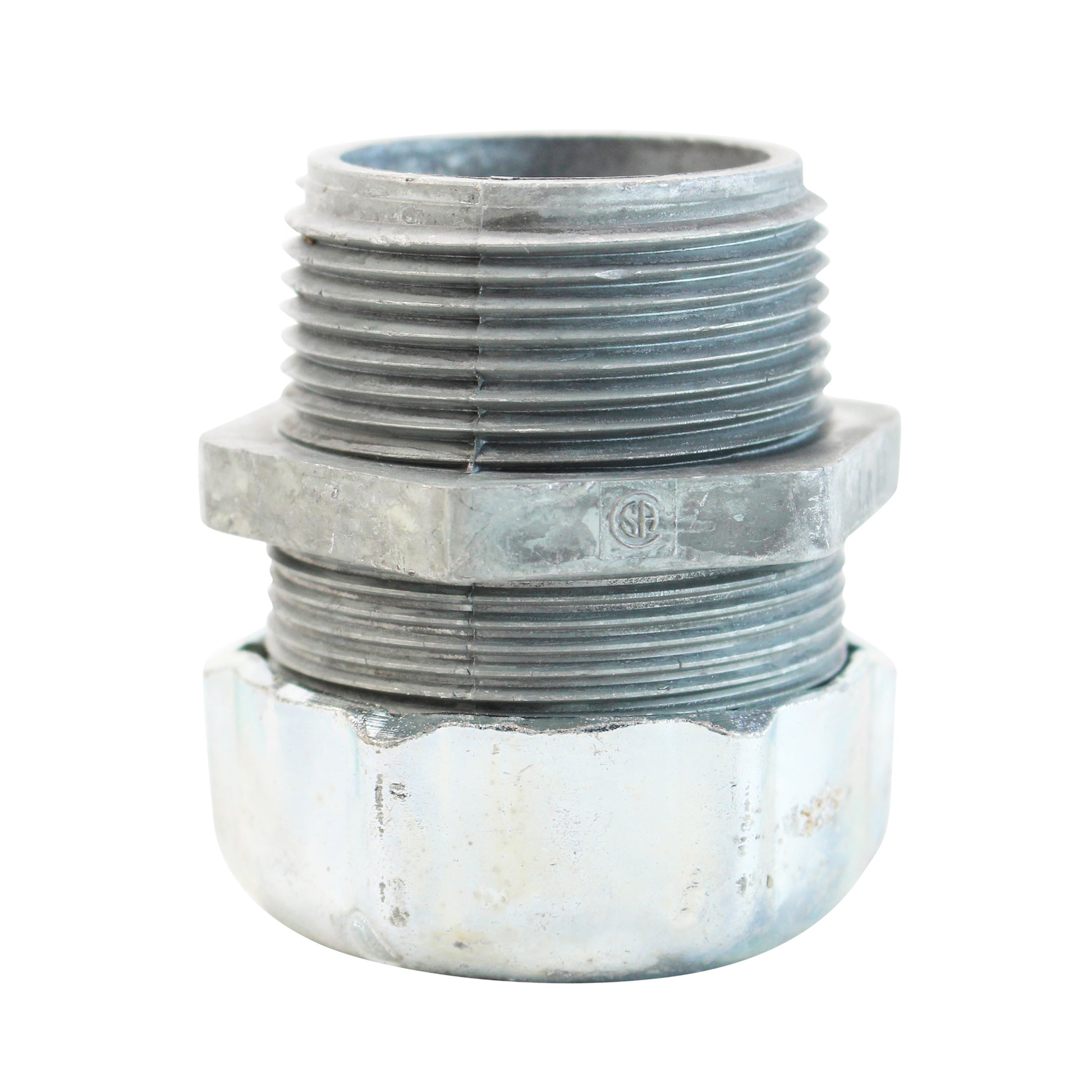

• Thomas & Betts Straight Cord connector has die-cast zinc construction with neoprene bushing that provides high impact resistance and ductility. It measures 2-3/32 Inch diameter x 2-5/32 Inch. Connector has a throat diameter of 1-17/64 Inch and thread size of 5/8 Inch length. It is designed to connect a conductor size of 1.065 - 1.205 Inch. It can withstand a temperature of 105 deg C. Connector features gland nut design that restricts the cable bending. It forms a liquid tight connection and provides ground continuity for cable armor.

Color: Die Cast

Condition: New

Dims: -Inches x -Inches x -Inches (Length Width Height)

Model: 2559

Package quantity: 5
