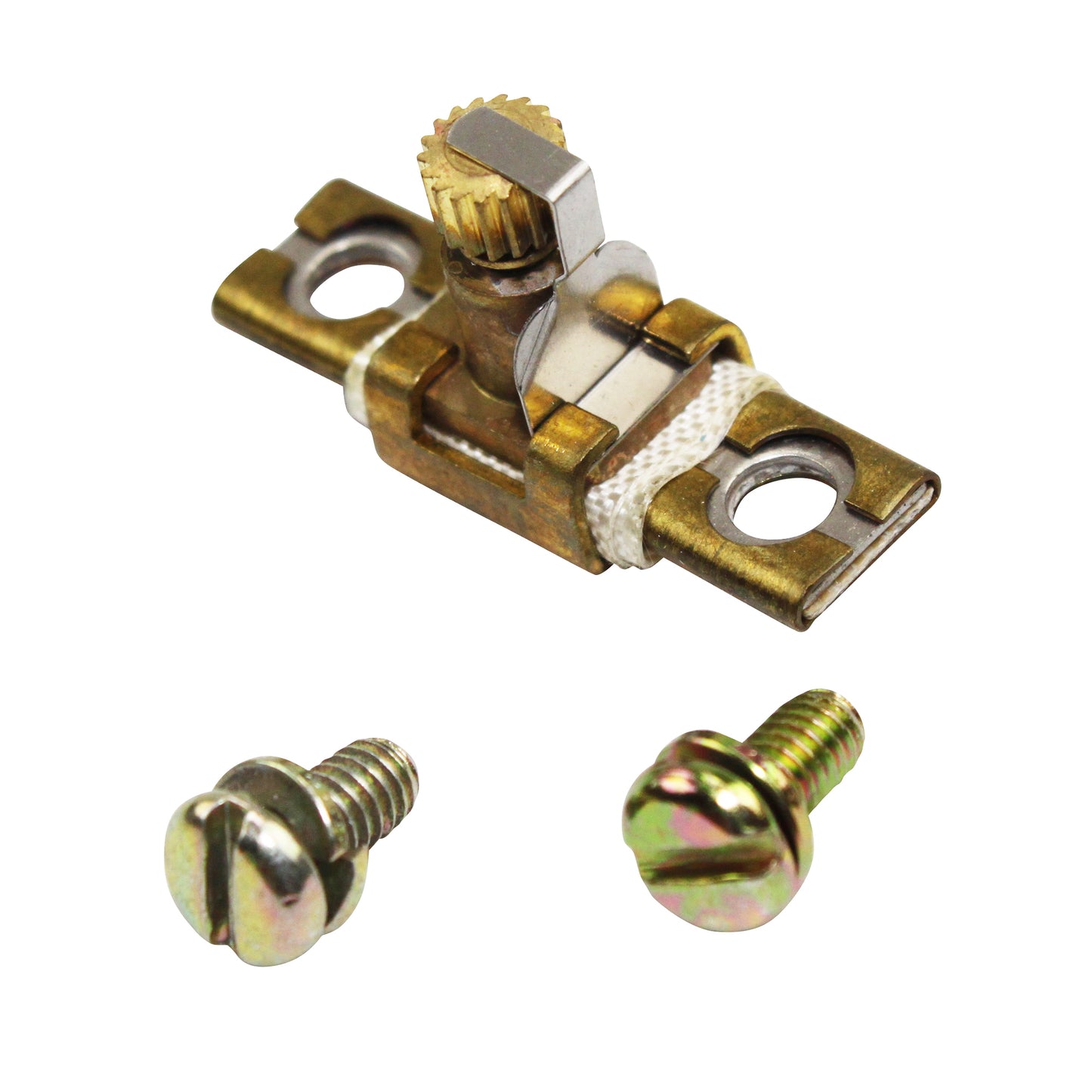

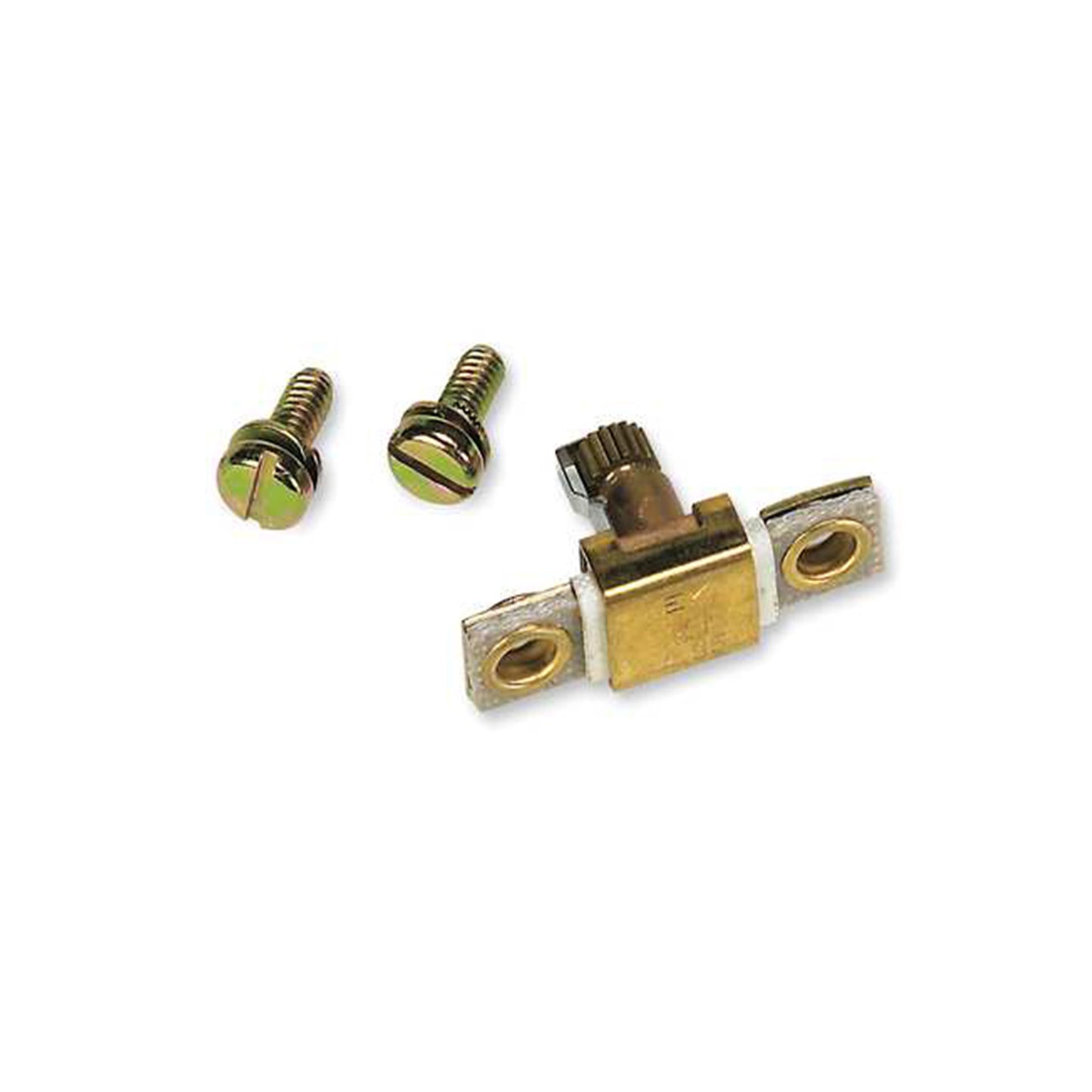

SQUARE D A5.30 OVERLOAD RELAY THERMAL UNITS USE WITH MOTOR STARTERS (PACK OF 6)
AVAILABLE STOCK: 37
- Full Load Amps 3.71 to 4.07, Thermal Unit
- Model A5.30
- For Use With Square D Motor Starters
- Full Load Amps: 3.71 to 4.07
- Pack of 6
- Full Load Amps 3.71 to 4.07, Thermal Unit, Model A5.30, For Use With Square D Motor Starters, NEC Article 430 Part C, Selection (1) Motor FLA/SF (2) Motor and Starter in SAME Ambient Temp (3) For 1.15 to 1.25SF Thermal Unit Amp Equal Motor FLA/1.0SF Thermal Unit Amp Equal 90% Motor FLA, IF Motor Ambient Temp +18F of Starter-Thermal Unit Amp Equal 10% Derate of (3), IF Motor Ambient Temp -18F of Starter-Thermal Unit Amp Equal 5% Increase of (3), Do NOT Exceed Starter Rating
-
COLOR/FINISH: Gold
CONDITION: New
MODEL NUMBER: A5.30
PACKAGE QUANTITY: 6
DIMENSIONS: -Inches x -Inches x -Inches (Length Width Height)
AVAILABLE STOCK: 37
PRODUCT INFORMATION:
Enlarge Images:
