Square D 2510FG1

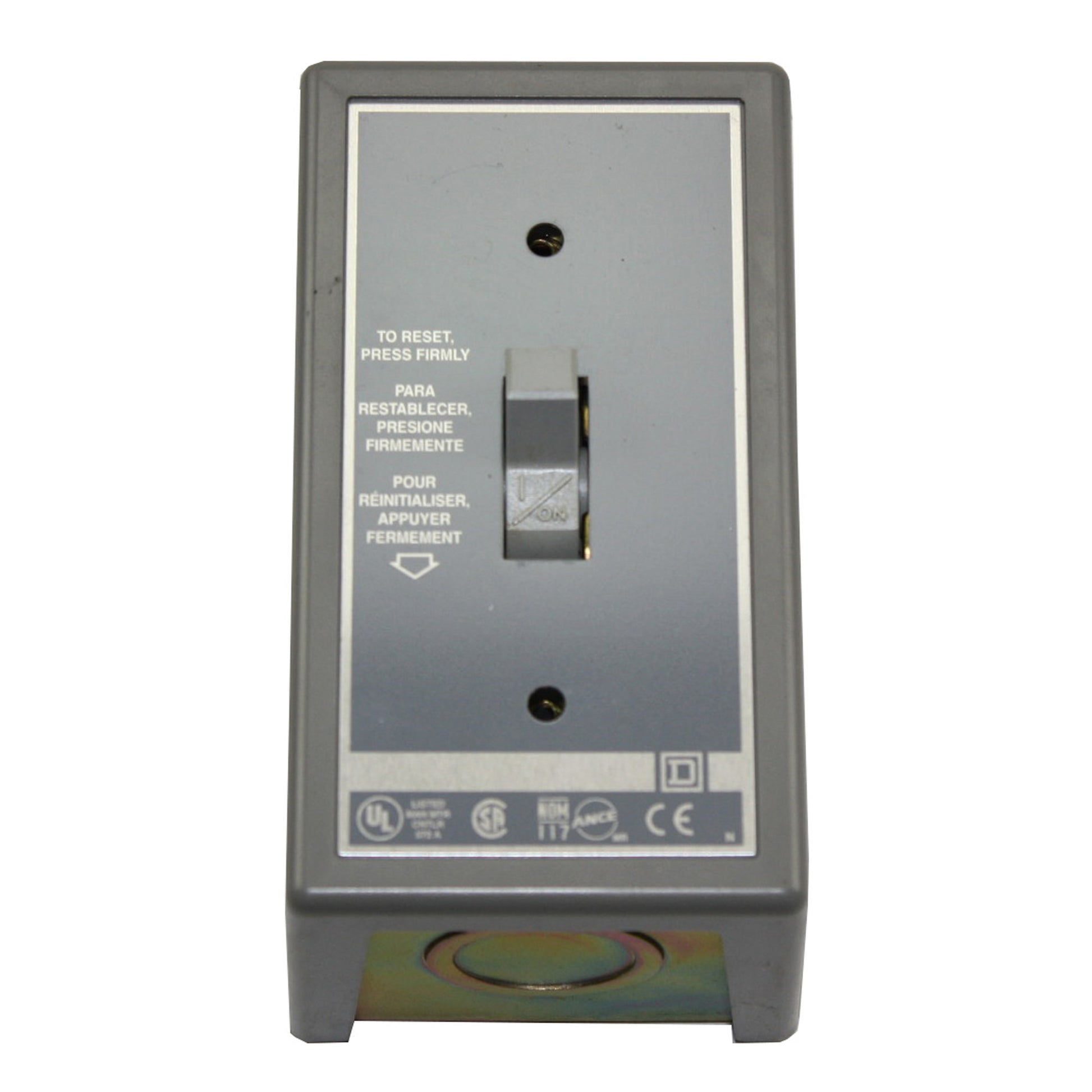

SQUARE D 2510FG1 FHP MANUAL MOTOR STARTER TOGGLE SWITCH, NEMA-1, 16A, 115-277V

Square D - 2510FG1
Condition: New


AVAILABLE STOCK: 1

  • $18.50
  • Save $35

Only 1 left!

    PRODUCT INFORMATION:

  • FHP Type F Manual Motor Starter Toggle Switch, NEMA-1 Enclosure
  • Horsepower Rating: 1-HP @ 115-VAC, 1-HP @ 230-VAC, 1-HP @ 277-VAC.
  • 1-Phase, 1-Pole 16-Amp, 115-277-VAC (System Voltage: 277-VAC).
  • 1/2" and 3/4"" Knock-Outs (Top and Bottom).
  • Overload Relay Type: Melting Alloy.

  • Single Unit Manual Starter Type F. Overload Relay Type: Melting Alloy. Complementary Line Rated Current: 16-Amp. Cable Entry: 1/2" and 3/4"" Knock-Outs (top and bottom). Horsepower Rating: 1-HP @ 115-VAC, 1-HP @ 230-VAC, 1-HP @ 277-VAC. System Voltage: 277-VAC. Number of Poles: 1P (Single-Pole). Control Unit: Toggle switch. Phase: 1 Phase. Pilot Light: No Indicator. Reset Manual Motor Starter Type: Non-Reversing. Electrical Connection: Screw clamp terminals. Wire Gauge: AWG 14 thru AWG 12 (copper). Height 4.25" x Width 2.44" x Depth 2.75". Product Certifications: CSA LR25490 class 3211 05 UL listed file E42243 CCN NLRV. NEMA Enclosure Rating: NEMA 1 Plastic Standard Size. Number of Units in Package: 1. Package Weight (Lbs): 1.46. Country of Origin: Mexico.

      COLOR/FINISH: Gray
      CONDITION: New
      MODEL NUMBER: 2510FG1
      PACKAGE QUANTITY: 1

      DIMENSIONS: 2.44-Inches x 2.75-Inches x 4.25-Inches (Length Width Height)
      AVAILABLE STOCK: 1
