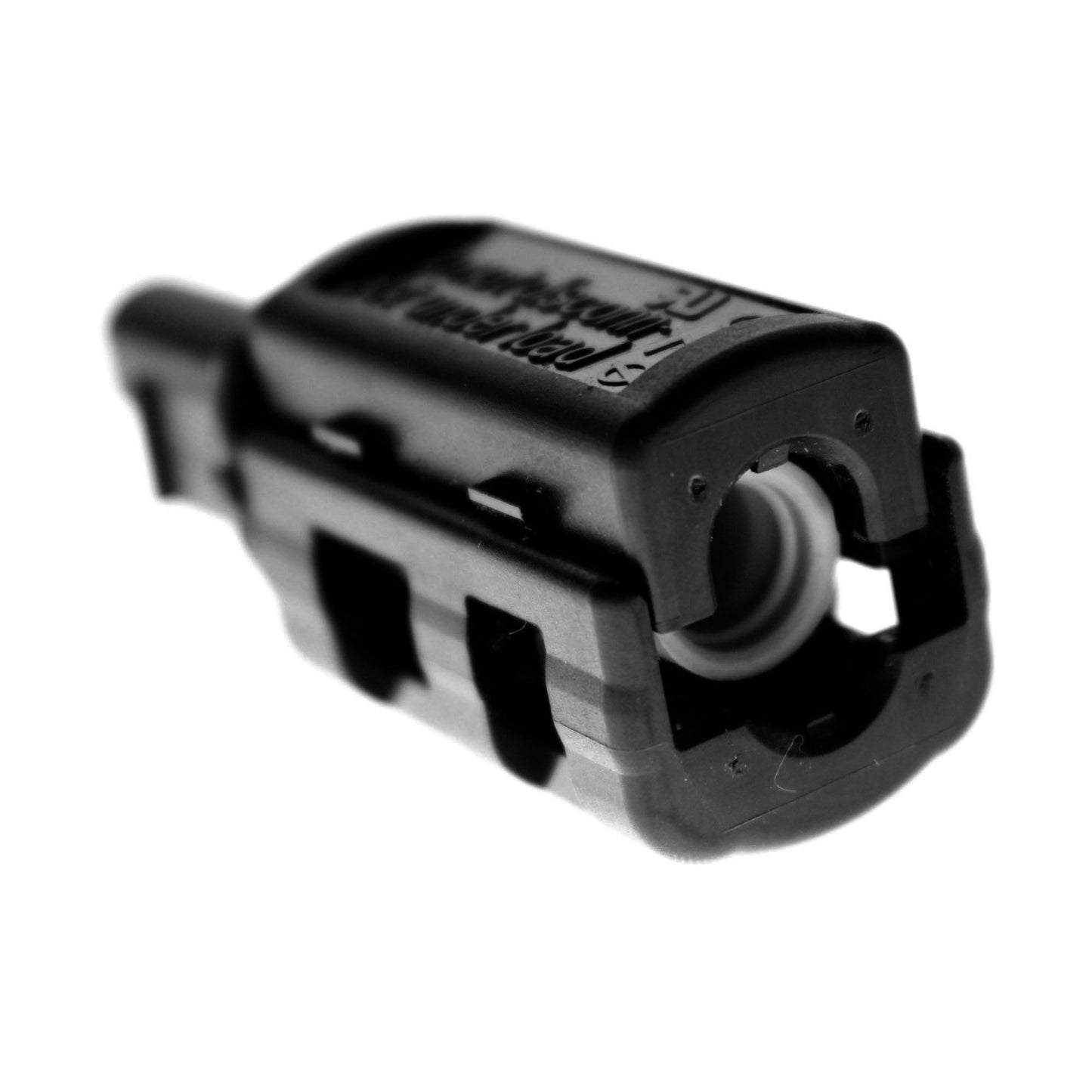

SMK CCT9901-2452FSZ 6.5MM FEMALE PV 03 SERIES CABLE CONNECTOR (100 PACK)
SMK CCT9901-2452FSZ 6.5MM FEMALE PV 03 SERIES CABLE CONNECTOR (100 PACK)
$18750
Save $-62.49
Request Special Pricing
Couldn't load pickup availability
Product information
These connectors are compatible with Sharp modules and can be assembled quickly enabling custom cables to be made at the job site. A special crimping tool and wrench set are required to assemble the connector.Features:
- Excellent contact performance due to multipoint contact structure.
- Rated DC 600V/1000V 30A
- Operating Temperature Range of –40°C to +90°C
- Thermoplastic Resin, Black, 94V-0 Housing & Cover
- Cu Alloy, Sn Plating Terminal Sold Seperate - Housing Only
- These connectors are compatible with Sharp modules and can be assembled quickly enabling custom cables to be made at the job site. A special crimping tool and wrench set are required to assemble the connector.
Color: Black
Condition: New
Dims: 2.3-Inches x 0.6-Inches x 0.8-Inches (Length Width Height)
Model: CCT9901-2452FSZ
Package quantity: 100
VWA: 600-Volt 30-Amps
