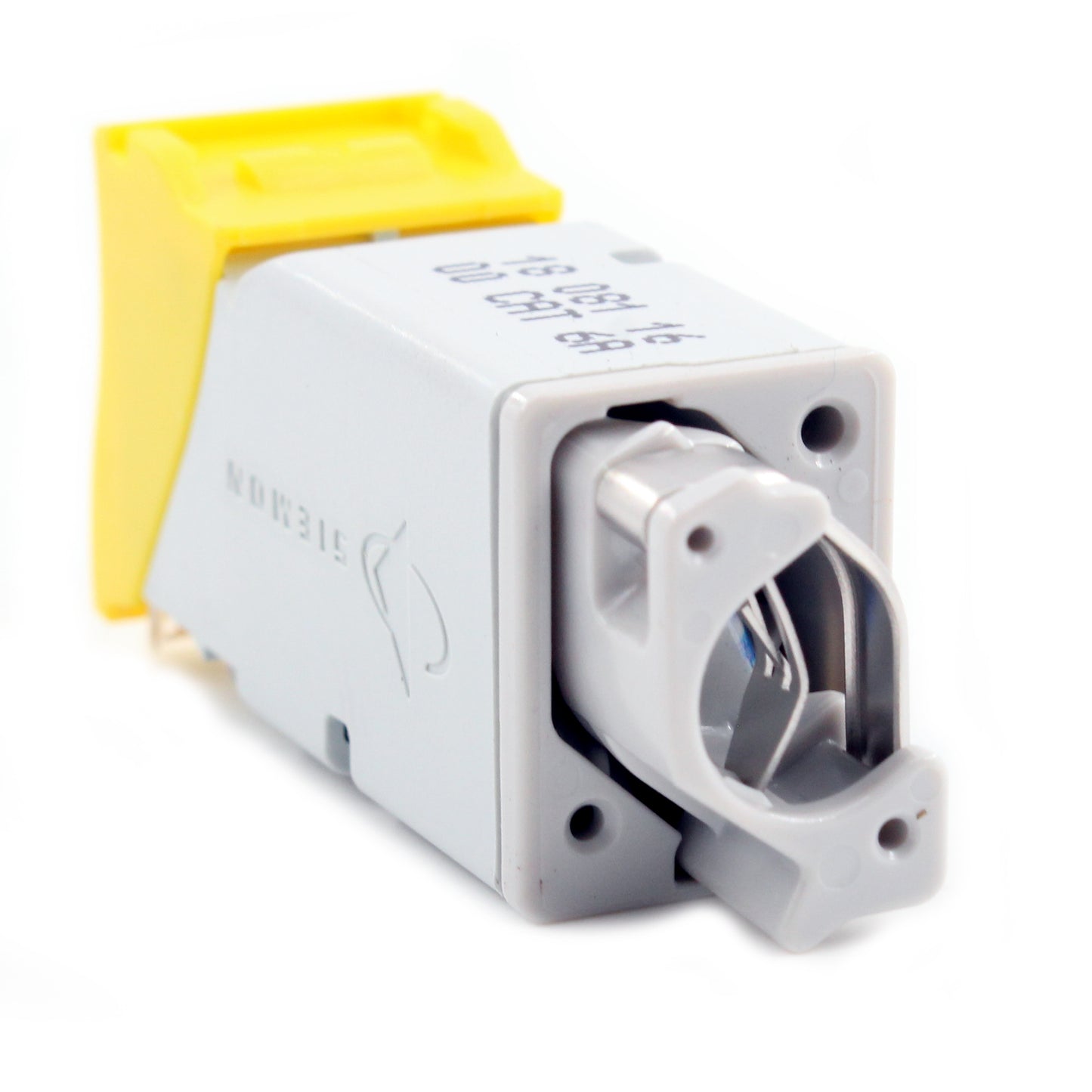

SIEMON Z6A-05 ZMAX HYBRID CAT6A MODULAR JACK, UTP, RJ45, 10GIG, YELLOW
- ANSI/TIA-568-C.2, ISO/IEC 11801, ETL, IEEE 802.3an, IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
- UTP (Unshielded Twisted-Pair Jack)
- Z-MAX module exceeds all applicable industry standards.
- 10-GB, Yellow Bezel, RJ45
- For use with Siemon Z-Max Cabling System Fits ZMAX Patch Panels and FacePlates.
- Siemon ZMAX Series UTP Jacks combine exceptional category 6A performance with best-in-class termination time, the Z-MAX 6A UTP outlet is a vital part of an end-to-end Z-MAX 6A UTP cabling system. The Z-MAX module exceeds all applicable industry standards, including ANSI/TIA-568-C.2 and Amendments 1 and 2 of ISO/IEC 11801 2nded. This exceptional performance is achieved through Z-MAX's innovative Z-TOOL termination process, Zero-Cross termination module, unique diagonal IDC alignment for alien cross-talk control and advanced tuning capabilities in conjunction with the patented PCB-based smart plug technology integrated into Z-MAX patch cords. Ratings / Listings: ANSI/TIA-568-C.2, ISO/IEC 11801 2nd ed Amendment 1, ETL Tested, IEEE 802.3an, IEEE 802.3af (PoE), IEEE 802.3at (PoE+), ANSI/TIA 1096-A, IEC 60603-7-4. Outlet has been qualified to terminate UTP cable constructions with 23 24 AWG (0.574mm - 0.51mm) solid conductor and 24 - 26 AWG (0.61mm - 0.48mm) stranded conductors, with up to 1.48mm diameter maximum overall conductor insulation. Featuring Siemon's patented crowned jack contact geometry that improves electrical and mechanical performance and ensures that any jack or plug contact damage due to arcing caused by unmating under PoE load occurs well away from the final mated contact position. Product is compliant with UL2043 and is appropriate for use in air handling spaces. Robust glass-reinforced nylon housing provides durability. Terminates in as little as 60 seconds using the Z-Tool. Outlets are available in a wide range of colors and mount in MAX faceplates and accessories. Keystone version also available. Pass-thru feature allows mounting from either side of a faceplate. Optional spring loaded door minimizes exposure to dust and other .. Zero-cross termination module accelerates lacing and eliminates pair crossing. Rapid connection of cable jacket strain relief via integrated hinged metal clip.
MODEL NUMBER: Z6A-05
PACKAGE QUANTITY: 1
DIMENSIONS: 1.00-Inches x 0.40-Inches x 0.40-Inches (Length Width Height)
AVAILABLE STOCK: 396
