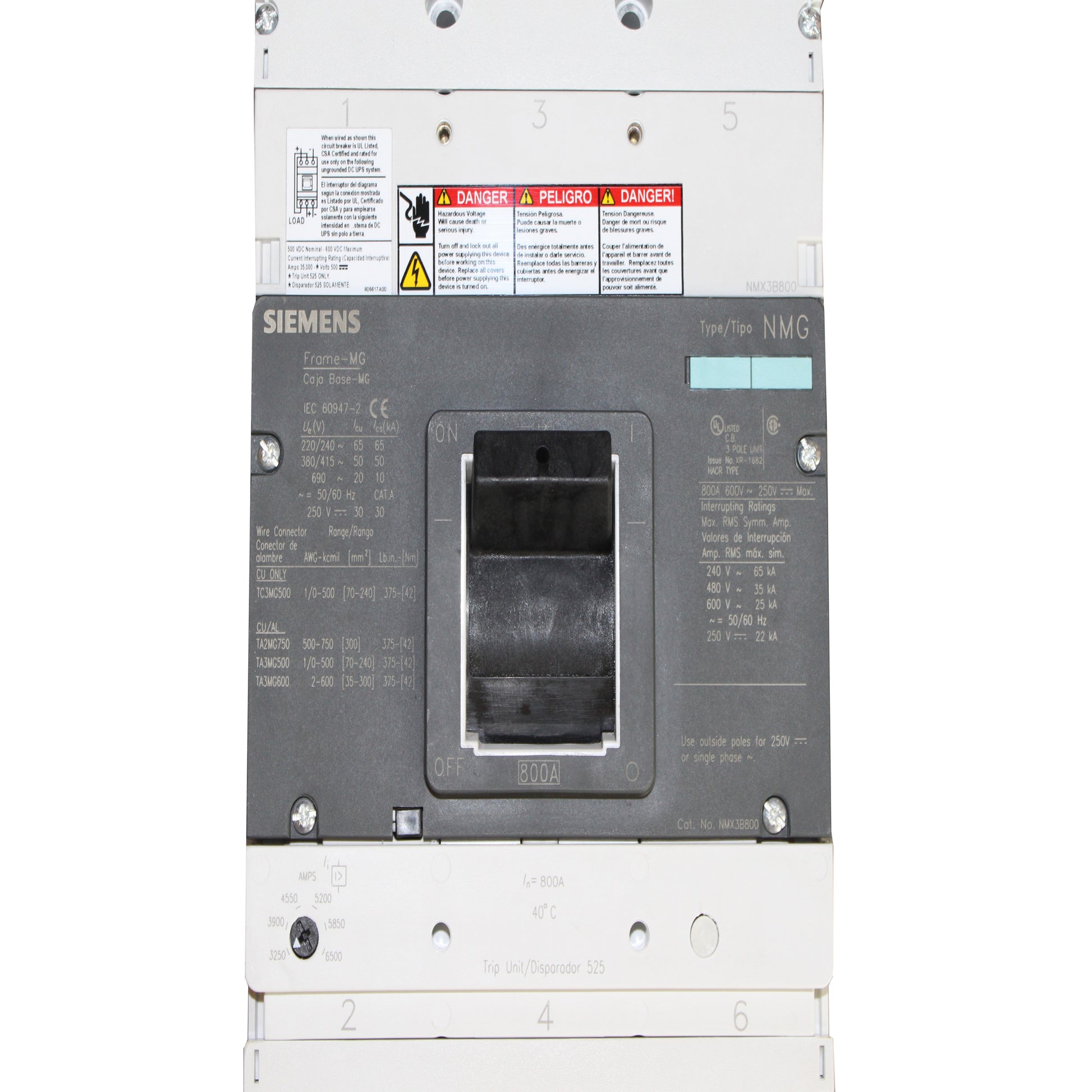

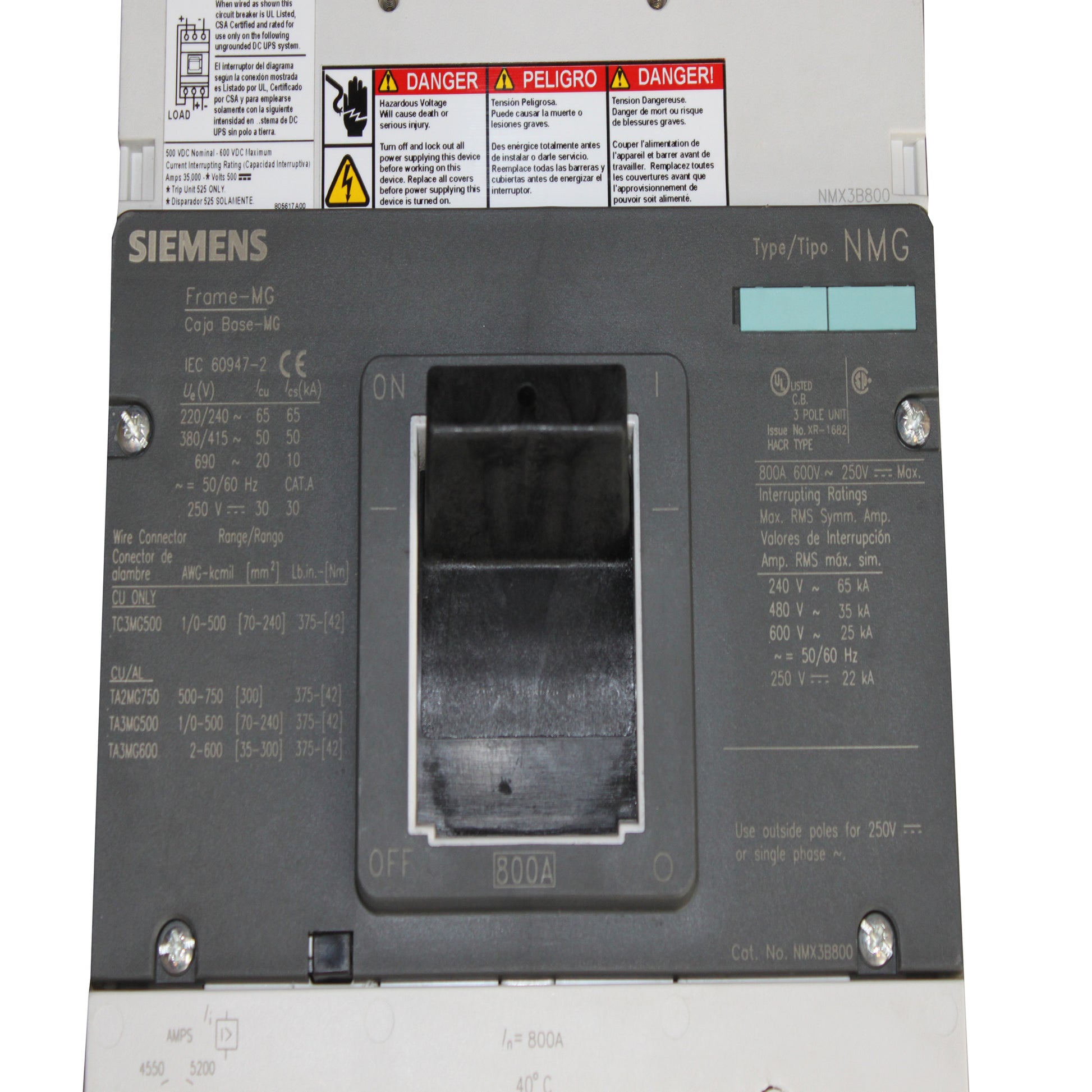

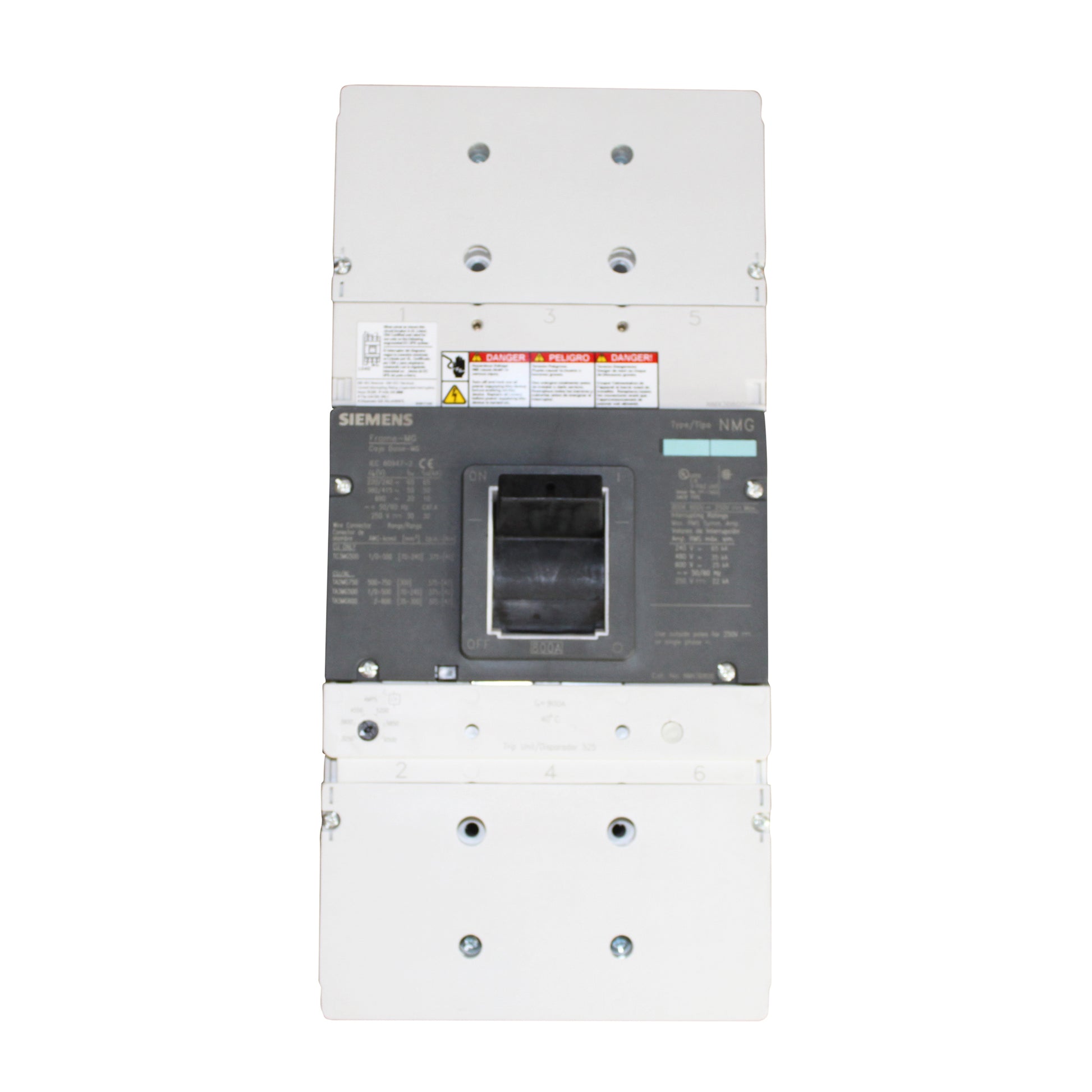

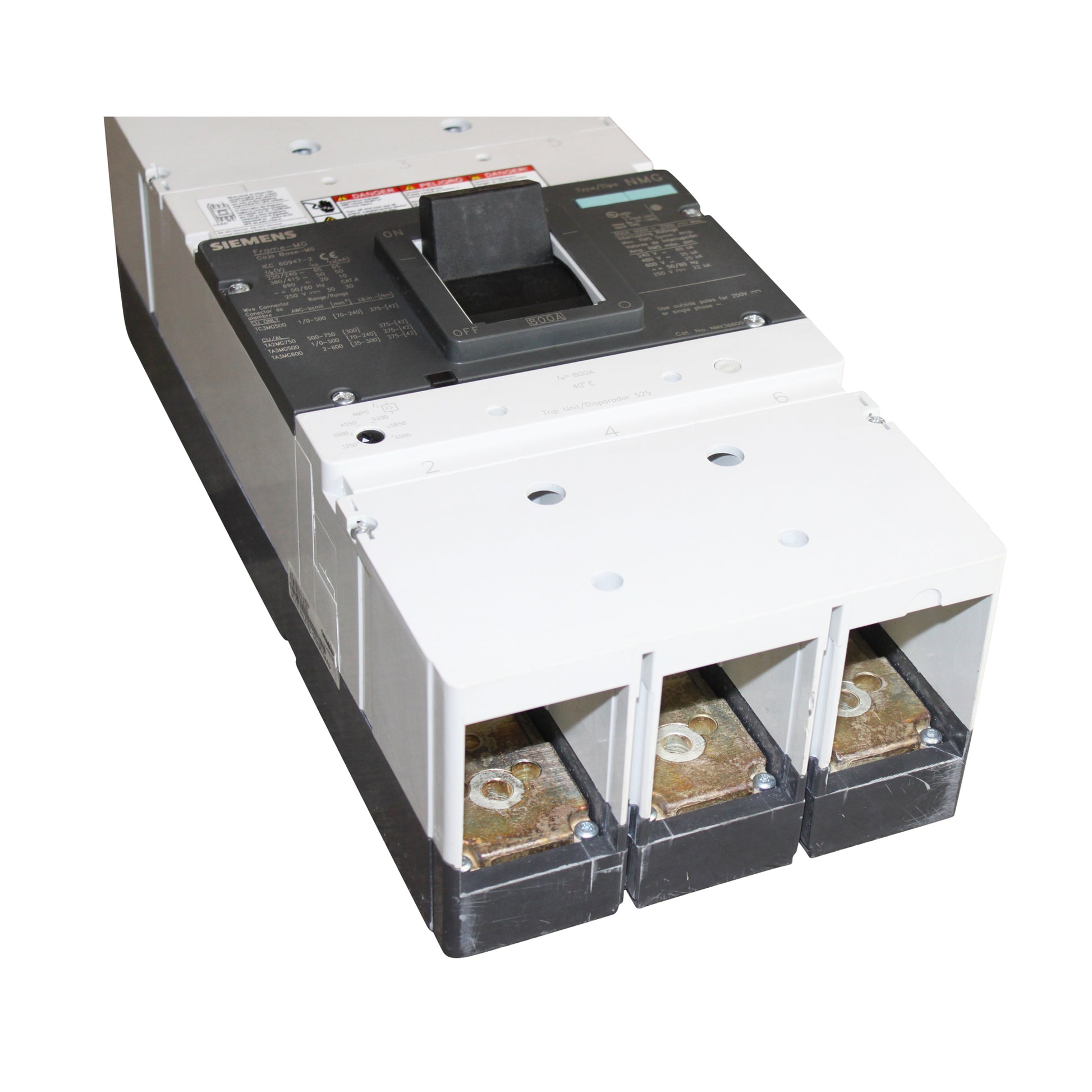

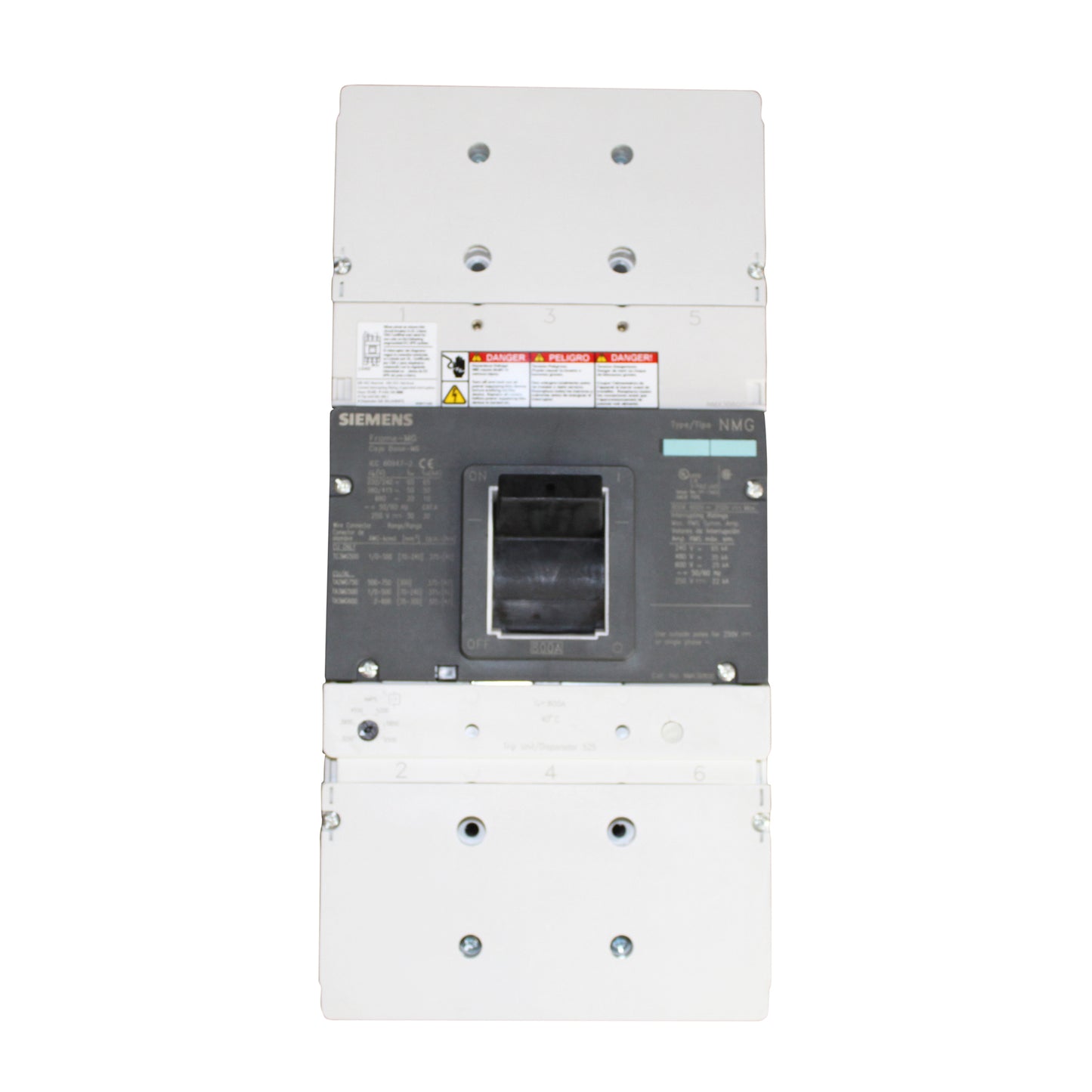

SIEMENS ITE NMX3B800 800A 240/480/600V 3P TYPE NMG FRAME-G CIRCUIT BREAKER

Features:

• 800 Amp, 600V 35k rated G frame industrial type molded case circuit breaker

• Made by Siemens world leader in circuit protection

• Magnetic Adjustable from 3250A to 6500A.

• SIZE 7.5 INCH WIDTH X 5.9 INCH DEPTH X 16 INCH HEIGHT

• 480V CIRCUIT BREAKER


• NMX3B800 Thermal magnetic, Industrial type molded case circuit breaker, MG frame, 240/480/600 VAC at 50/60 HZ, 500 VDC (ul), 220/240/380/415/690 at 50/60 HZ (iec), 800 ampere, 3 pole, interrupting rating 65 kiloampere at 240 VAC, 35 kiloampere at 480 VAC, 25 kiloampere at 600 VAC, 35 kiloampere at 500 VDC (ul), 65 kiloampere at 220/240 VAC, 50 kiloampere at 380/415 VAC, 20 kiloampere at 690 VAC (iec), size 7.5 inch w x 5.9 inch d x 16 inch h. Product condition is unused surplus

Color: Gray

Condition: UsedGood

Dims: 5.9-Inches x 7.5-Inches x 16.0-Inches (Length Width Height)

Model: NMX3B800

Package quantity: 1

VWA: 480-Volt 800-Amps
