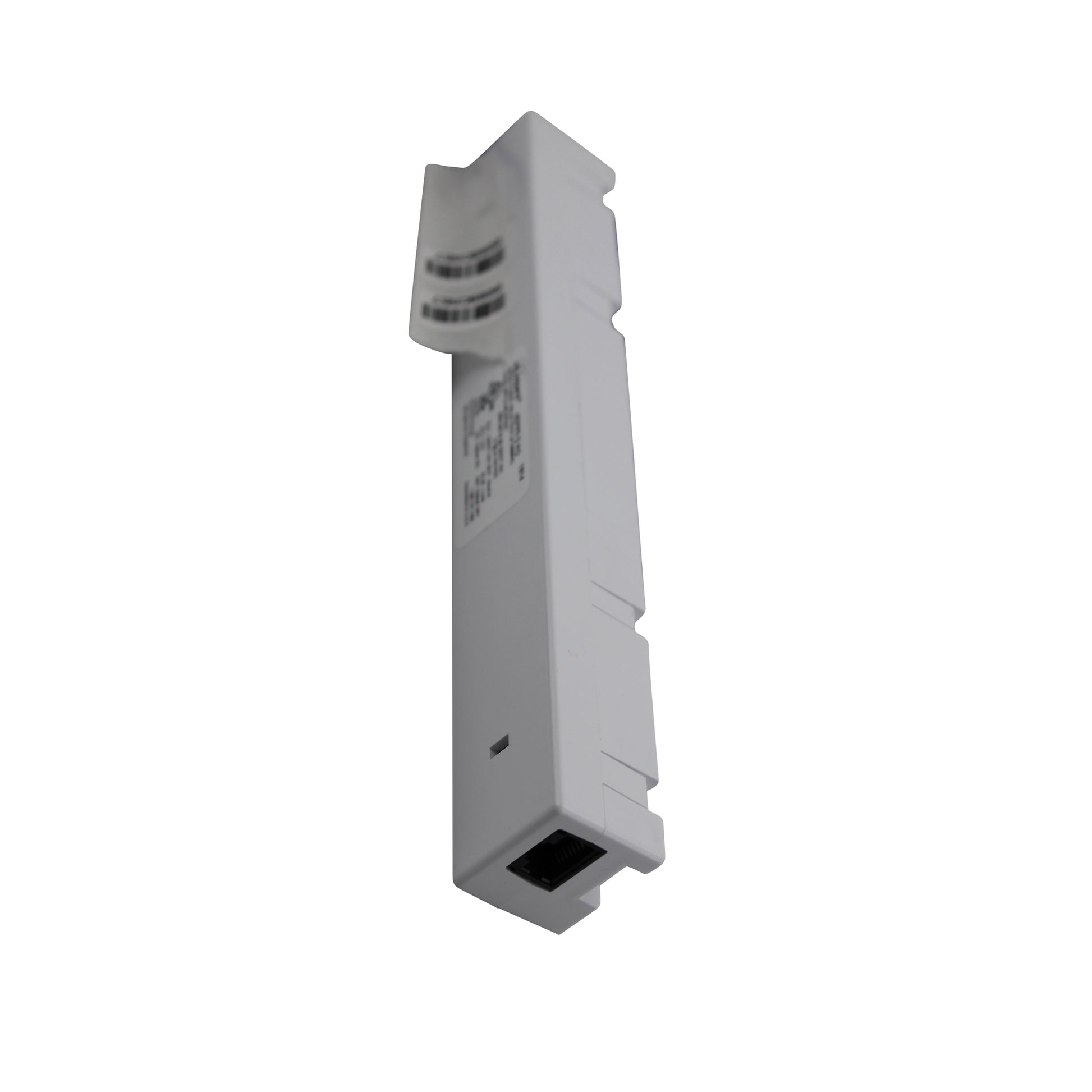

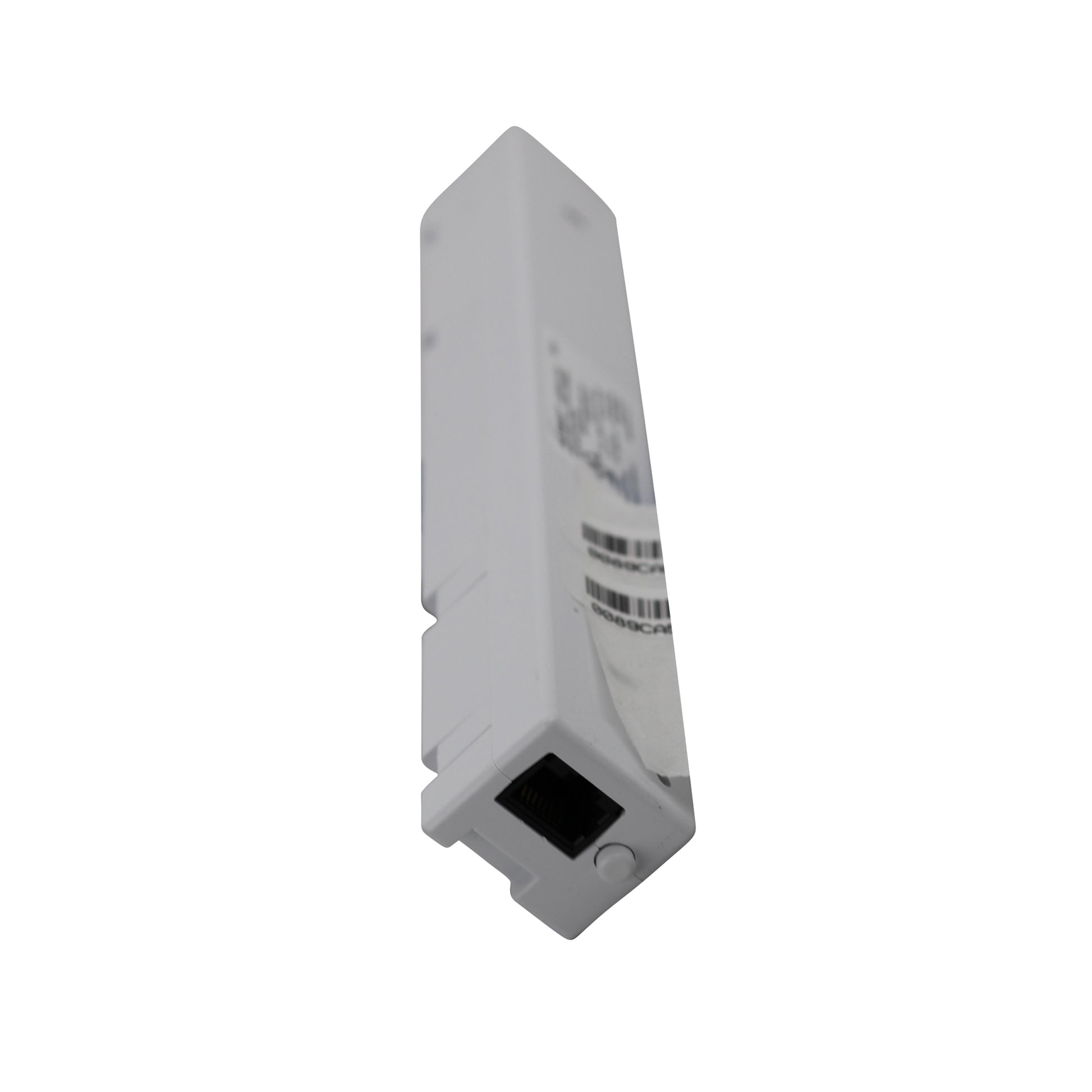

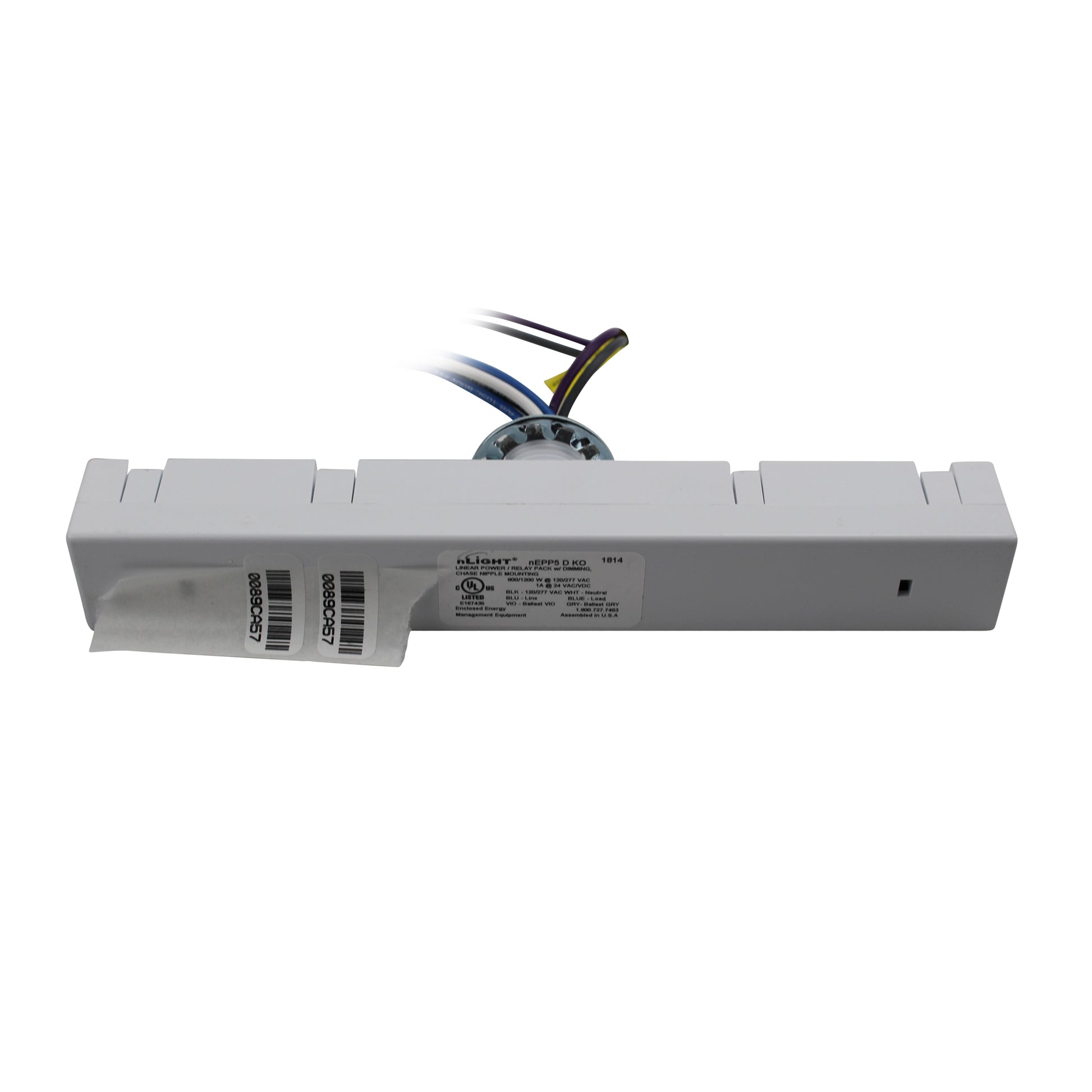

SENSOR SWITCH NEPP5-D-KO LINEAR POWER RELAY PACK DIMMING NLIGHT, WHITE

Features:

• Dimension: 9.500 Inch Length x 1.160 Inch Width x 1.040 Inch Height

• Self-contained relay switches

• Line voltage load

• Supplies 30 Milli-Amp of Bus Power/RJ-45 port


• Lithonia Acuty Sensor Switch, Linear dimming power pack in white color is a combination latching relay and bus power supply with optional 0 - 10 VDC dimming and current monitoring features. It can be used with sensor switch n Light control system that has the ability to communicate over an n Light network. It can withstand up to 120/277 Volts and enables mounting within a luminaire's internal ballast channel. It measures 9.500 Inch x 1.160 Inch x 1.040 Inch. Dimming power pack operates at a temperature of 14 to 160 deg C. The power pack's two RJ-45 connectors that are located in either end making control wiring with standard CAT-5e cabling easy and clean. The power is utilized by sensors and wallpod devices within the power pack's local z1. Dimming power pack is UL/CUL listed, title 24 compliant and plenum Rated.

Color: Multi-Colored

Condition: New

Dims: -Inches x -Inches x -Inches (Length Width Height)

Model: NEPP5-D-KO

Package quantity: 1
