RADIO DESIGN LABS FP-SVDA4 1X4 S-VIDEO DISTRIBUTION AMPLIFIER
AVAILABLE STOCK: 1
- Radio Design Labs FP-SVDA4 S-Video Distribution Amp
- Four Separate Outputs
- Adjustable Gain for Each Component
- 75 ? Input/Outputs
- Wide Bandwidth – Flat to 10 MHz

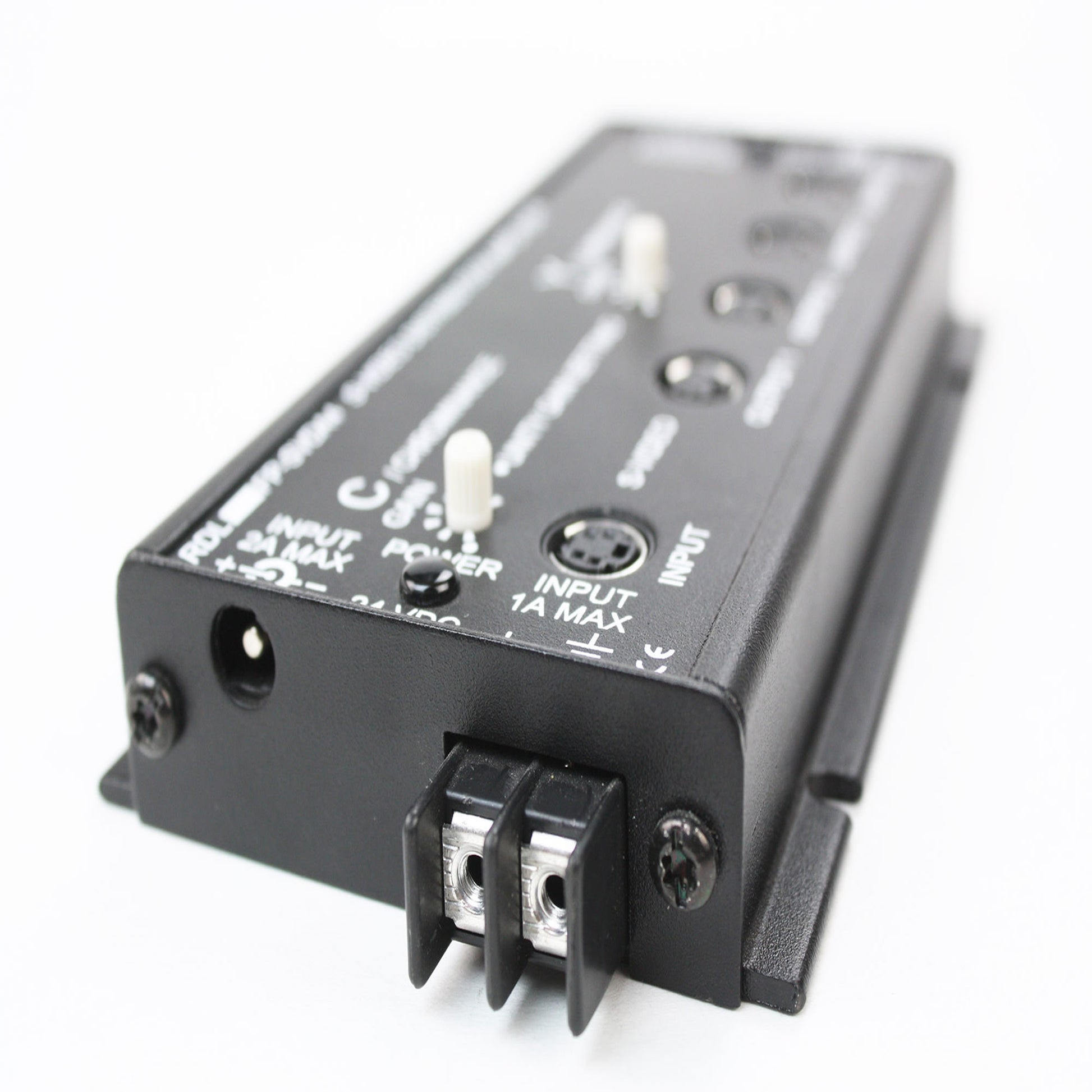

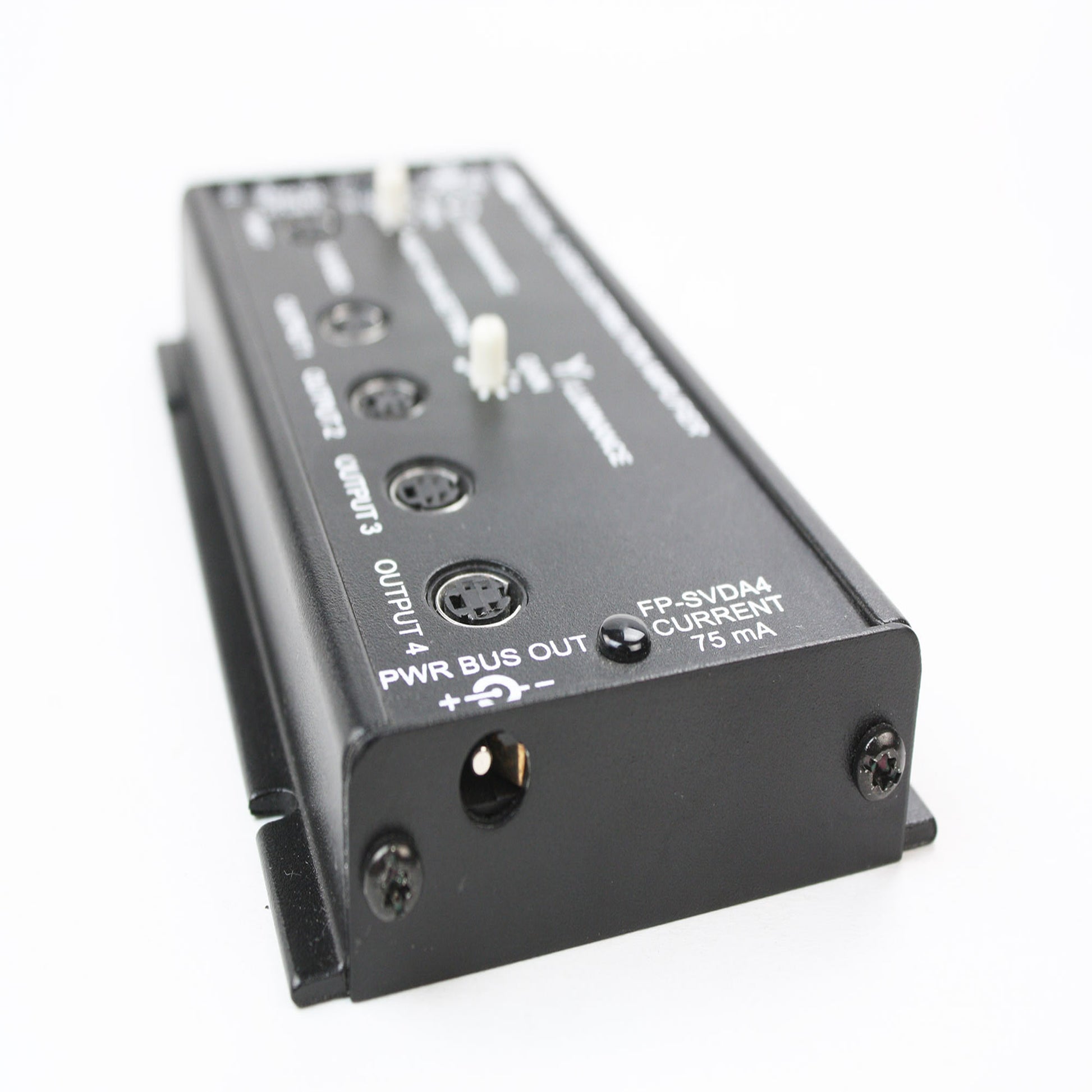

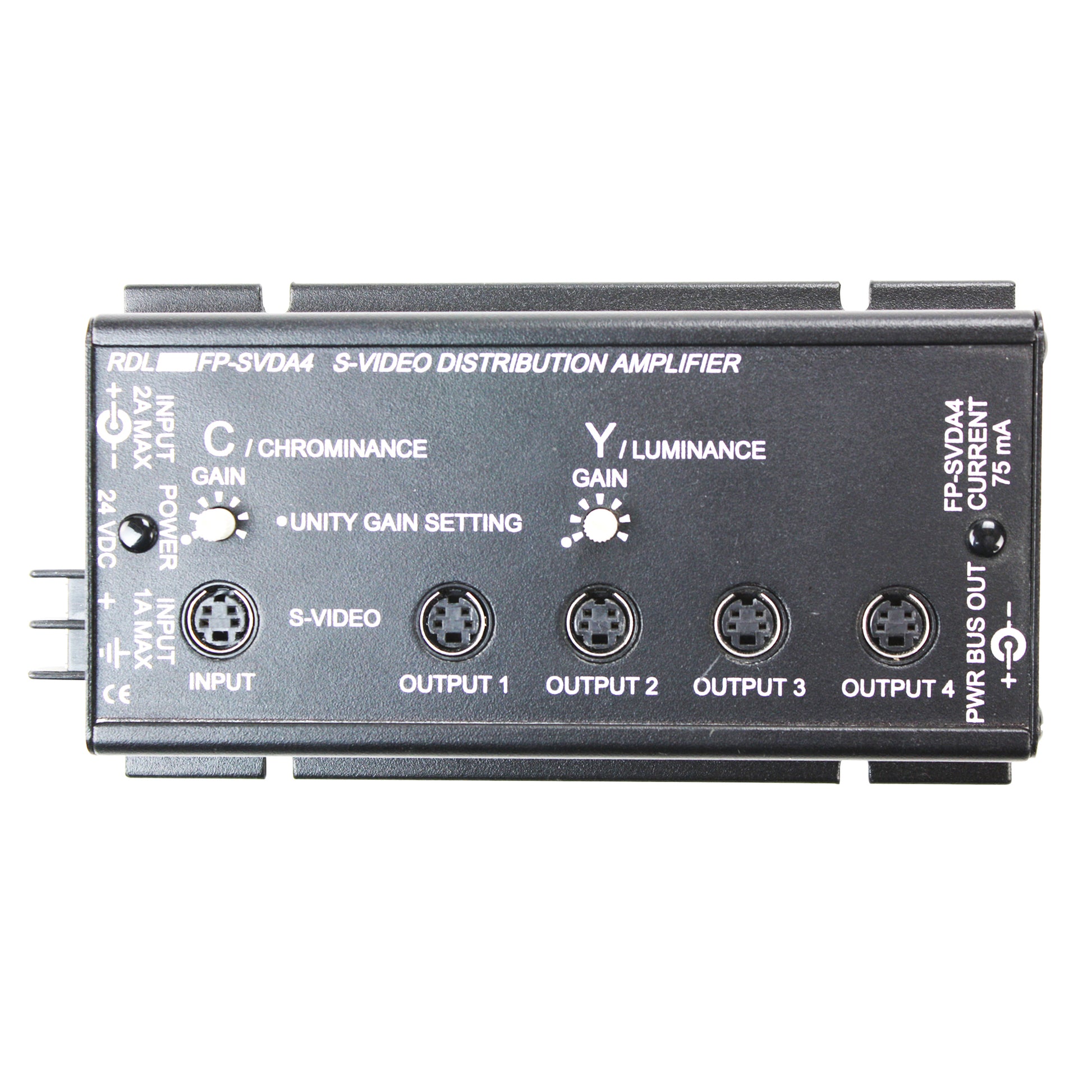

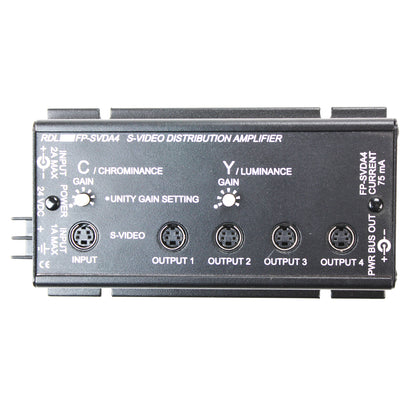

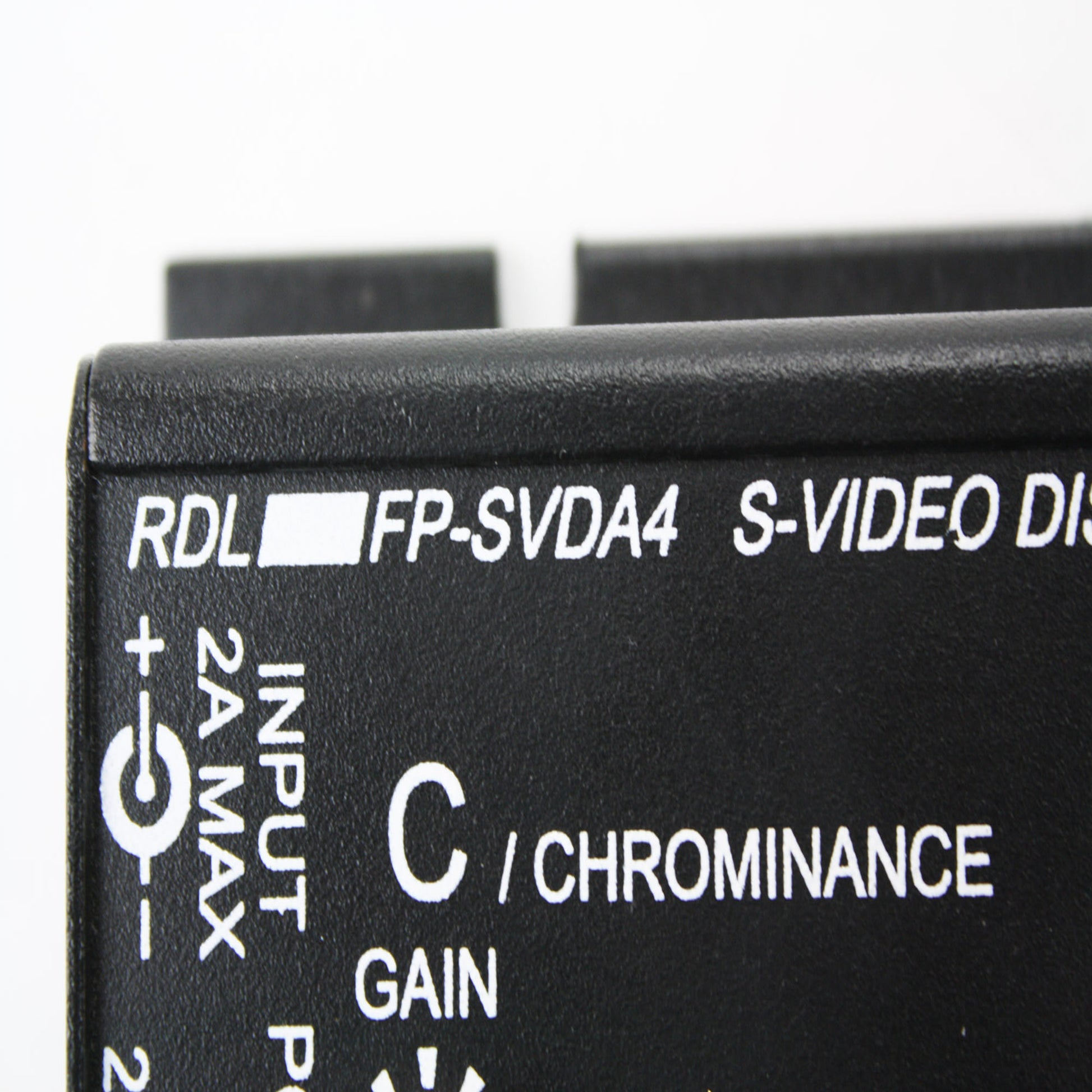

- The FP-SVDA4 is the ideal choice in many applications where component video signals need to be distributed. Video inputs and outputs are made on the top panel jacks. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules. The FP-SVDA4’s low profile and compact size permit mounting in confined spaces and in various locations in equipment racks. The location of the input/output jacks permits high-density mounting against flat surfaces while maintaining accessibility to the connectors. Installations requiring multiple distribution amplifiers are ideally designed using FP-SVDA4s affixed to rack sides, or by mounting them to either the front or rear rack rails using the RDL FP-RRA.
-
COLOR/FINISH: Black
CONDITION: New
MODEL NUMBER: FP-SVDA4
PACKAGE QUANTITY: 1
DIMENSIONS: 6.5-Inches x 3.3-Inches x 1.3-Inches (Length Width Height)
AVAILABLE STOCK: 1
PRODUCT INFORMATION:
