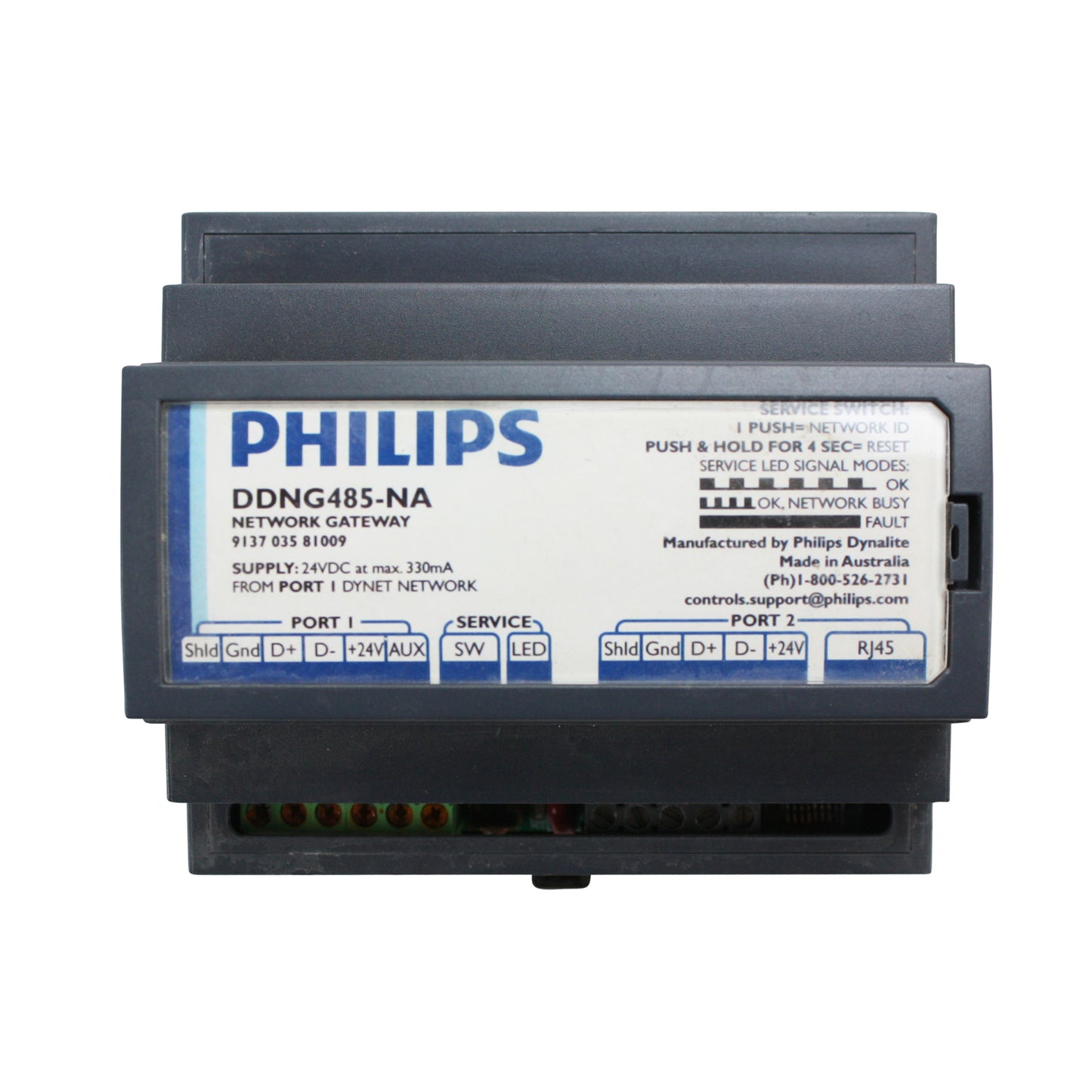

PHILIPS DYNALITE DDNG485-NA NETWORK GATEWAY DEVICE MODULE
AVAILABLE STOCK: 1
- Network Gateway
- Network Gateway
- 24VDC at max 330mA
- From Port 1 Dynet Network
- Service Switch
- The Philips DDNG485-NA is a flexible network communications gateway designed for DyNet RS485 networks. The two optoisolated RS485 ports enable the DDNG485-NA to implement a trunk and spur topology on large project sites, with the device providing a high-speed backbone optocoupled to many lower speed spurs. It also provides isolation of electrical faults to individual spurs. The device is also designed to enable cost effective integration between the Philips control system and third party devices. The on-board processor can assemble and transmit user-defined data strings. The DDNG485-NA has a DMX512 mode that can transmit or receive up to 64 slots (channels) of DMX512, with automatic DyNet conversion and Task triggering. This is a method of providing control of DMX512 devices that are not able to communicate with DyNet.
-
COLOR/FINISH: Black
CONDITION: UsedGood
MODEL NUMBER: DDNG485-NA
PACKAGE QUANTITY: 1
DIMENSIONS: 4.1-Inches x 3.6-Inches x 2.9-Inches (Length Width Height)
AVAILABLE STOCK: 1
PRODUCT INFORMATION:
