Bodine

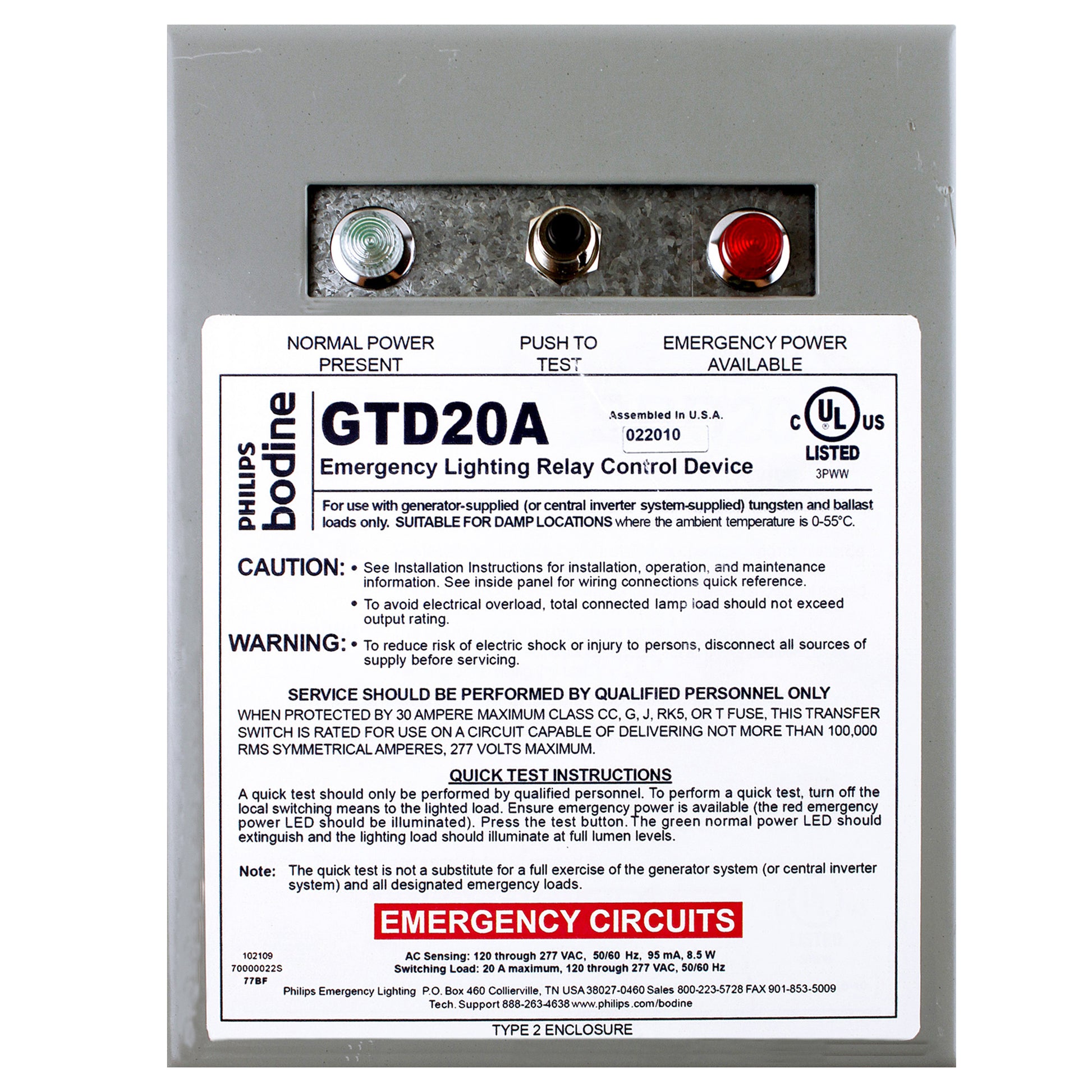

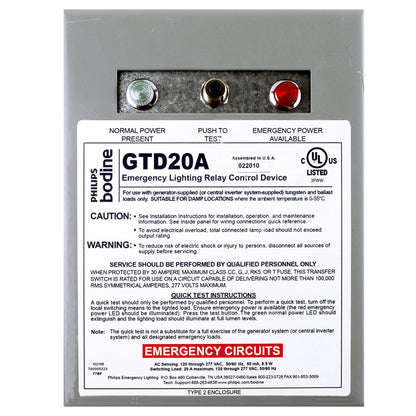

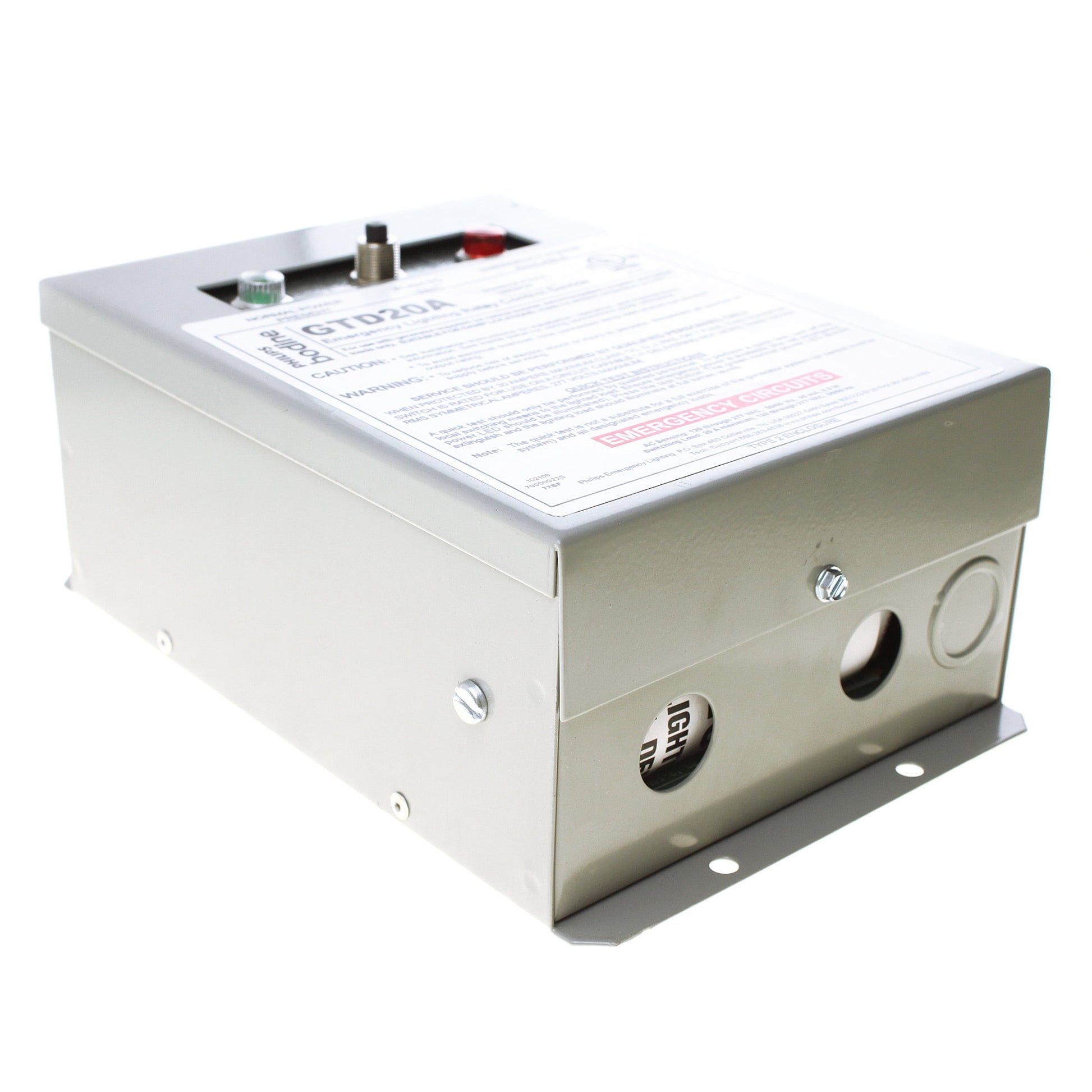

PHILIPS BODINE GTD20A LIGHTING RELAY CONTROL TRANSFER BYPASS DEVICE

PHILIPS BODINE GTD20A LIGHTING RELAY CONTROL TRANSFER BYPASS DEVICE

GTD20A
Regular price $27575
Regular price
$27575

$45944

Save $183.69

Shipping calculated at checkout.

50 in Stock

Free delivery

Case Pack

Request Special Pricing

Thank you for your message! We will get back to you as soon as possible.

Product information

The GTD20A works in conjunction with an auxiliary generator or central inverter system to power designated lighting loads up to 20 amps regardless of local switch position. The device consists of relay switching circuitry in a single, wall-mountable enclosure (T-bar mounting kit optional). The GTD20A senses the loss of normal power and, in response, switches the lighting load to a designated alternate power source. The device can be used to: (1) transfer a lighting load from normal power to generator or central inverter system power when normal power is lost; (2) bypass a wall switch to allow generator- or central inverter system-supplied lighting loads to energize when normal power is lost; (3) bypass a dimming panel and prevent backfeed to allow lighting to energize at full brightness when normal power is lost; and (4) bypass most dimming controls using an auxiliary relay contact. The GTD20A includes three dry form C contacts, which allows the user a wide variety of wiring options. For additional applications and information, contact the factory. The GTD20A is suitable for use in indoor and damp locations.

Features:

  • Lighting Relay Control Transfer or Bypass Device
  • 20A Max lighting load for flourescent, incandescent, HID and LED
  • Senses loss of normal power and switches lighting load to a designated alternate power source.
  • Consists of relay switching circuitry in a single, wall-mountable enclosure.

  • The GTD20A works in conjunction with an auxiliary generator or central inverter system to power designated lighting loads up to 20 amps regardless of local switch position. The device consists of relay switching circuitry in a single, wall-mountable enclosure (T-bar mounting kit optional). The GTD20A senses the loss of normal power and, in response, switches the lighting load to a designated alternate power source. The device can be used to: (1) transfer a lighting load from normal power to generator or central inverter system power when normal power is lost; (2) bypass a wall switch to allow generator- or central inverter system-supplied lighting loads to energize when normal power is lost; (3) bypass a dimming panel and prevent backfeed to allow lighting to energize at full brightness when normal power is lost; and (4) bypass most dimming controls using an auxiliary relay contact. The GTD20A includes three dry form C contacts, which allows the user a wide variety of wiring options. For additional applications and information, contact the factory. The GTD20A is suitable for use in indoor and damp locations.

Color: Grey

Condition: New

Dims: 9-Inches x 6.5-Inches x 4-Inches (Length Width Height)

Model: GTD20A

Package quantity: 1

VWA: 120-Volt 4-Watts 0.45-Amps
