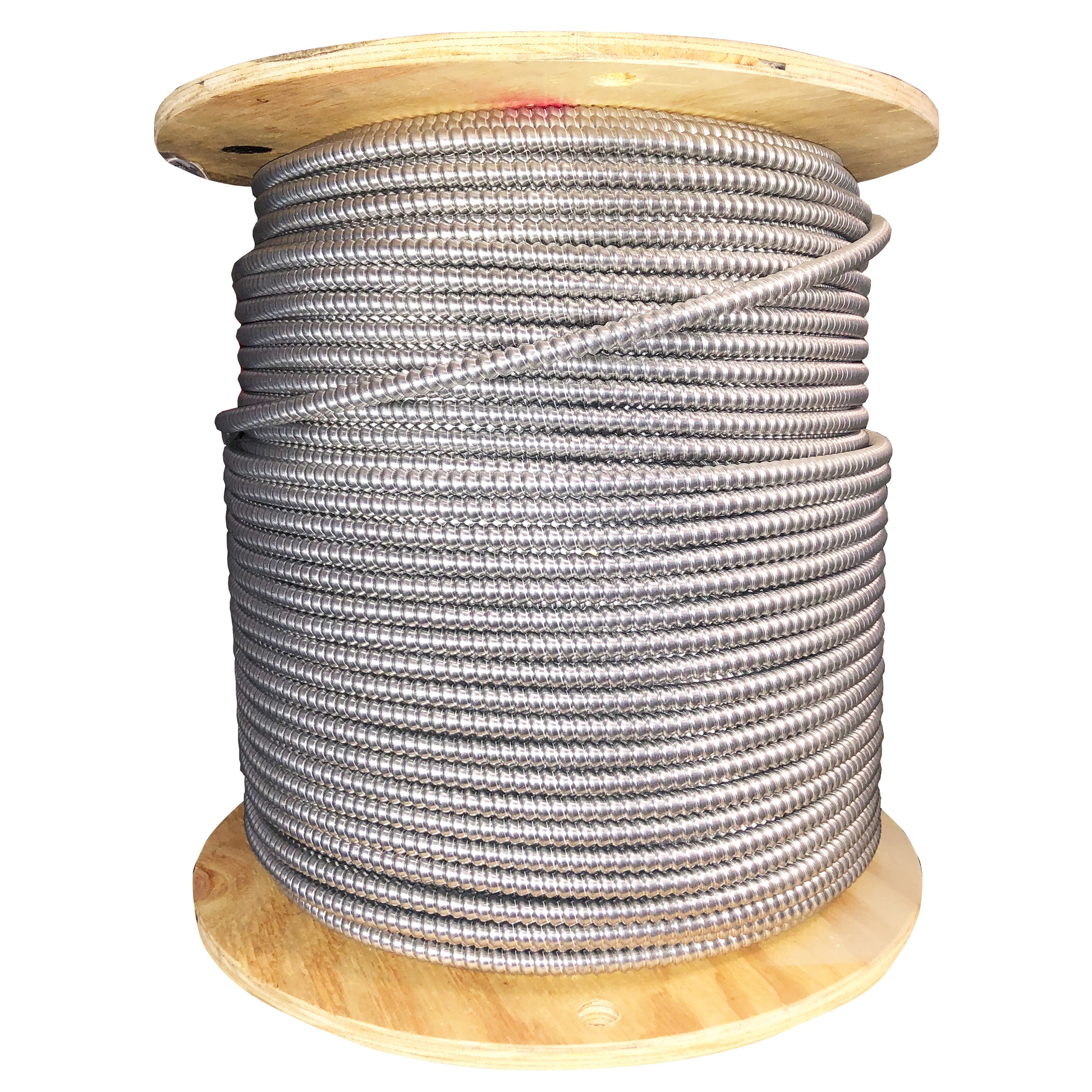

NORTHERN CABLE 800299 ARMORED MC COPPER WIRE, 10/3 + GROUND, 10AWG, 3C, 1000-FT

Features:

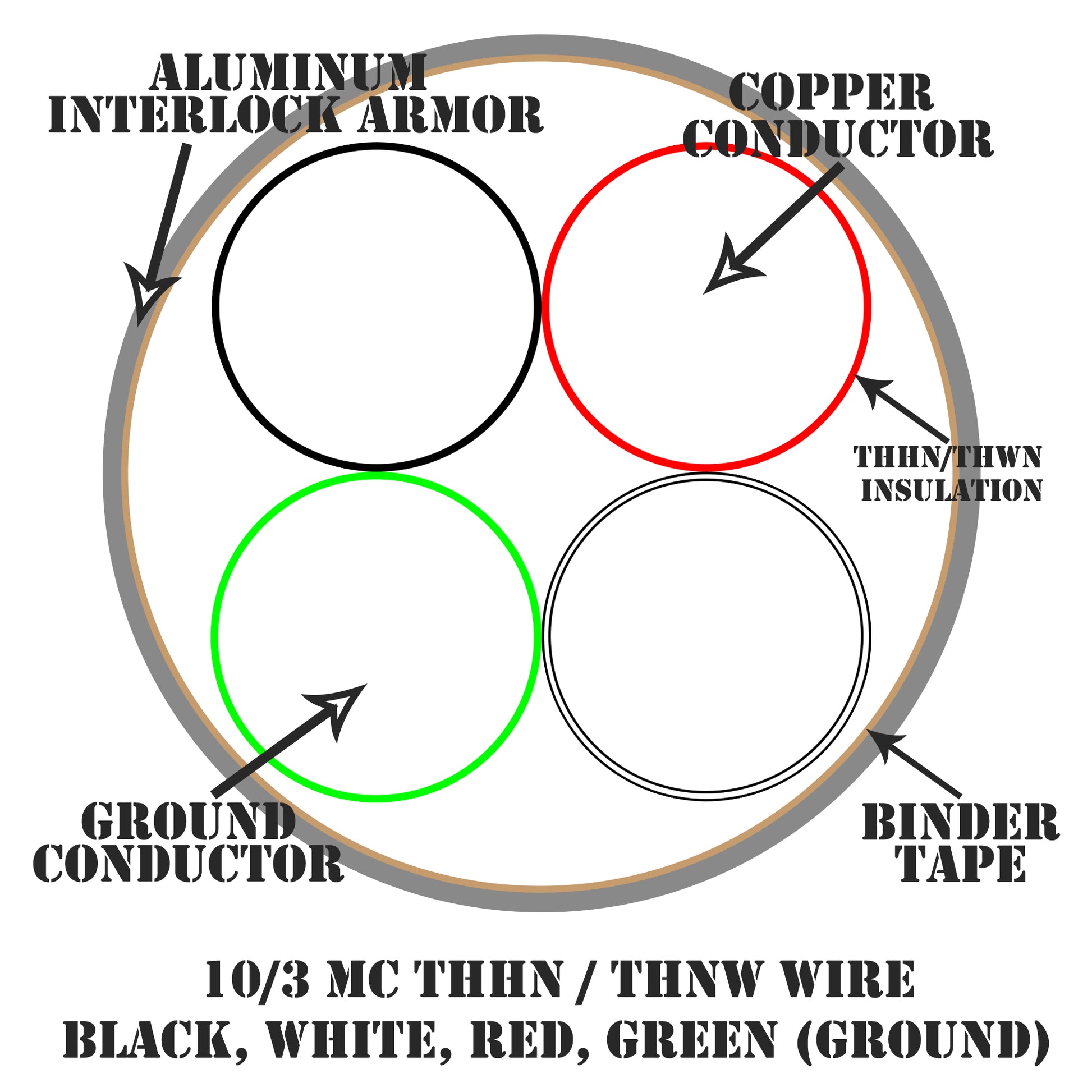

• 10AWG Solid Copper, 3 Conductor + Ground - Aluminum Clad MC Armor

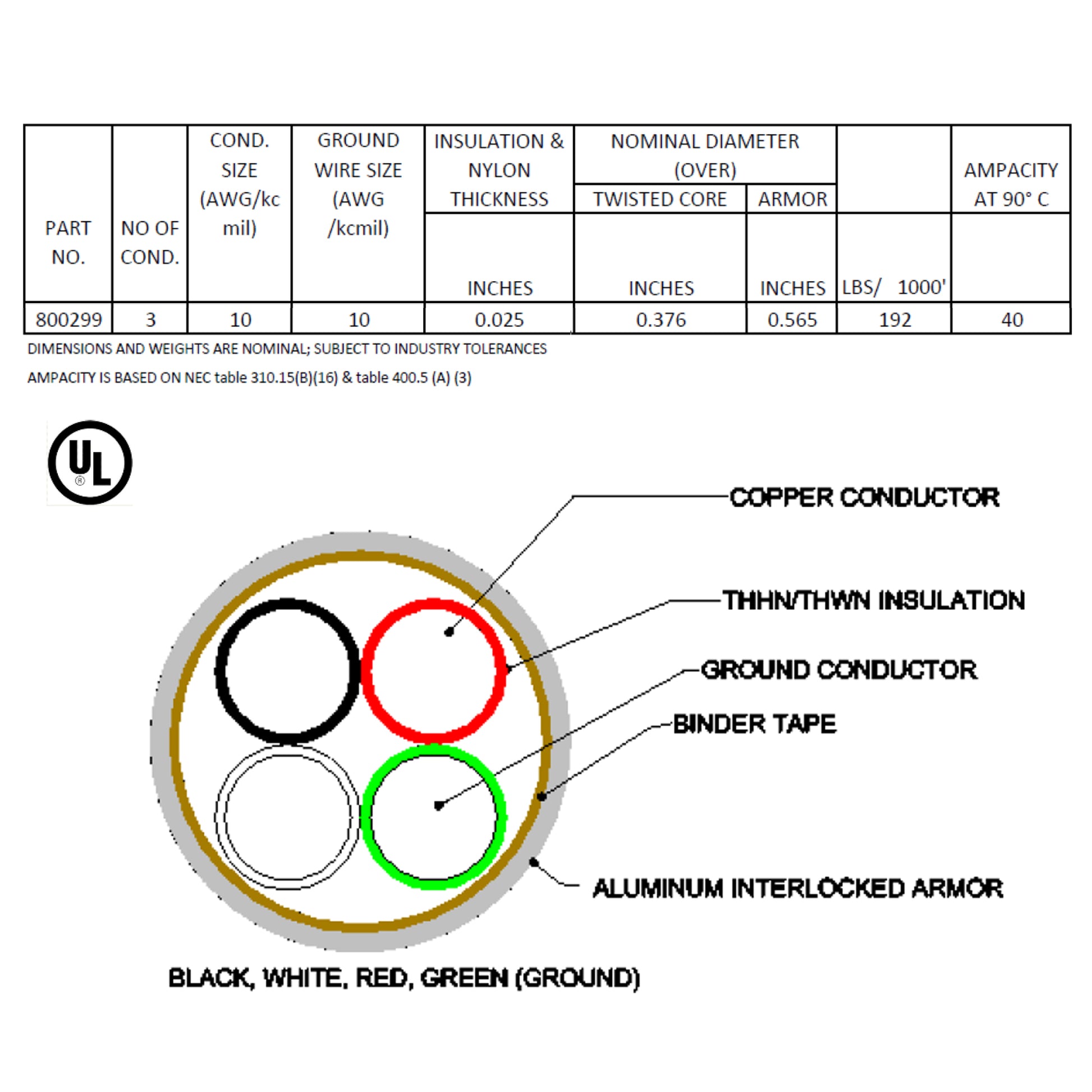

• Nominal Diameter: Twisted Core 0.376" - Armor 0.565" x 1000-Feet

• Ground Wire Size: 10AWG

• Conductor Colors: Green, White, Black, Red

• This item requires Freight - Please allow 2-4 Days Additional Handling Time


• Bare solid soft drawn copper Conductor. Insulation: Thermoplastic high heat resistant nylon coated (THHN) / Thermoplastic high water resistant nylon coated (THWN). Bonding Conductor (Ground): 1 solid insulated copper conductor. Armor: Aluminum interlocked armor. Color Coding: Green (Ground), Black, White, Red. Binder Tape: Printed Polypropylene. UL listing: E189204. Applications: For concealed wiring in dry locations - For exposed wiring in dry location - For branch and feeder and service circuits in commercial, industrial, multi-residential buildings, and places of assembly - For power, lighting, control, and signal circuits - For use in cable trays in dry locations - For use in any raceway - For use as aerial cable on a messenger - When embedded in plaster finish on brick or other masonry, except in damp or wet locations - For use when run or fished in the air voids of masonry block or tile walls where such walls are not exposed or subject to excessive moisture or dampness. Class I Division 2, Class 2 Division 2 Hazardous Locations Rated at 90°C dry. Excellent crush resistance. Provides long service life. Cost effective alternative to installations in conduit. Industry compliances: UL 1569, 2556, 83, RoHS. Gasoline and oil resistance II. UL Through penetration fire stop systems: C-AJ-3147, C-AJ-3148, C-AJ-3149, FC-3041, FC-3042, WJ-3041, WL 3123, WL-3125, WL-3126, WL-3127, WL-3128. Made in Canada

Color: Multi-Colored

Condition: New

Dims: 24-Inches x 24-Inches x 20-Inches (Length Width Height)

Model: 800299-1000

Package quantity: 1
