Magtech Industries

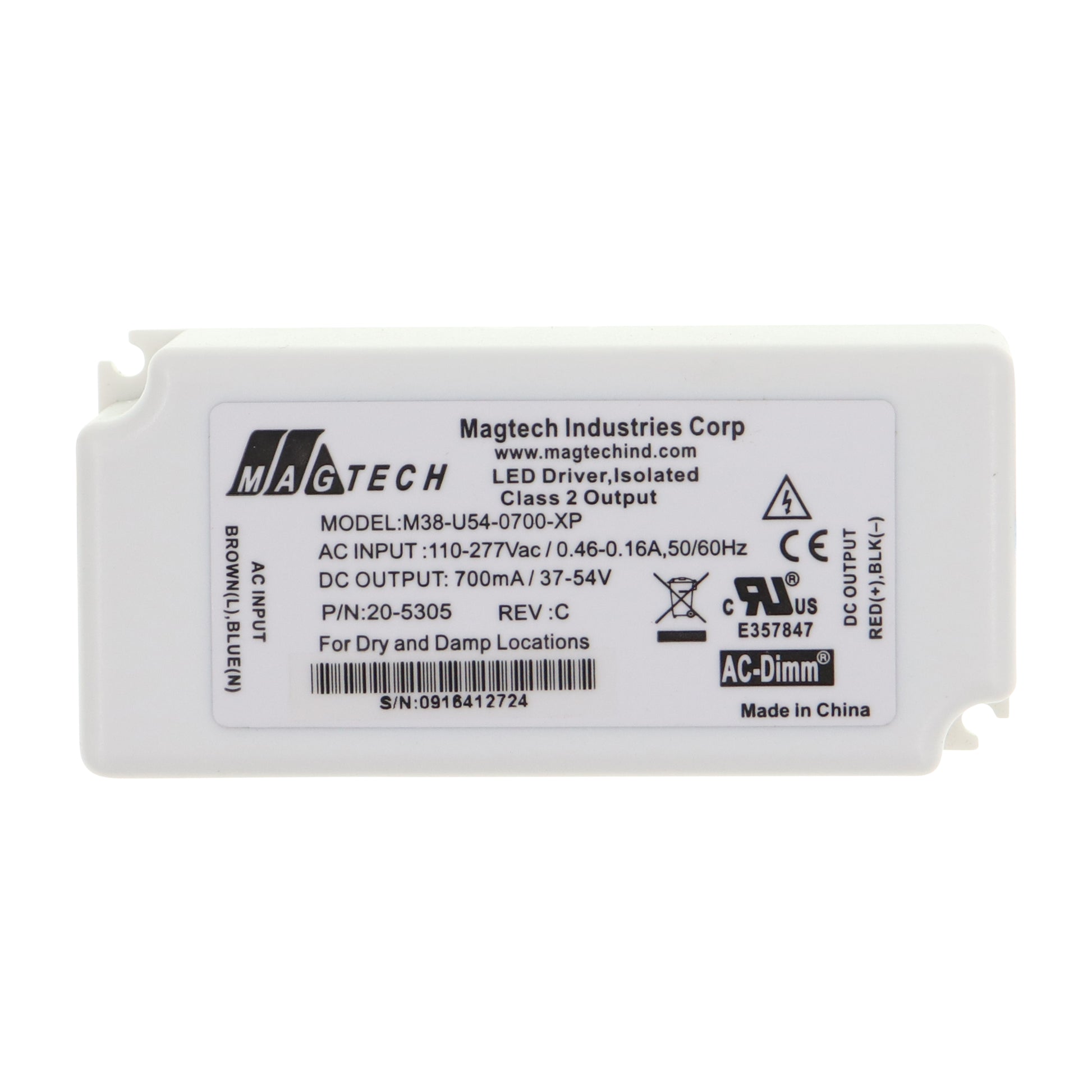

MAGTECH M38-U54-0700-XP CONSTANT CURRENT DIMMABLE LED DRIVER, 36-54V, 700MA, 40W
$6877
Save $9.27
Request Special Pricing
Couldn't load pickup availability
Product information
700mA constant current and an output voltage of between 36 and 54Vdc. The M38-U54-0700-XP has a maximum output of 40 watts. It can operate on an AC input voltage from 100 - 277V. The M38-U54-0700-XP is ELV (Reverse phase / Trailing edge dimmable. It is RoHS compliant and cULus and CE approved and is rated IP66 for dry and damp locations. It also has a small footprint of 3.46 x 1.61 x 1.18 inchesFeatures:
- Constant Current LED Driver
- 36-54Vdc
- 700mA
- ELV (Reverse phase / Trailing edge dimmable)
- 40-Watts, 120-277VAC Input
- 700mA constant current and an output voltage of between 36 and 54Vdc. The M38-U54-0700-XP has a maximum output of 40 watts. It can operate on an AC input voltage from 100 - 277V. The M38-U54-0700-XP is ELV (Reverse phase / Trailing edge dimmable. It is RoHS compliant and cULus and CE approved and is rated IP66 for dry and damp locations. It also has a small footprint of 3.46 x 1.61 x 1.18 inches
Color: White
Condition: New
Dims: 3.50-Inches x 1.60-Inches x 1.30-Inches (Length Width Height)
Model: M38-U54-0700-XP
Package quantity: 1
VWA: 54-Volt 40-Watts 0.7-Amps
