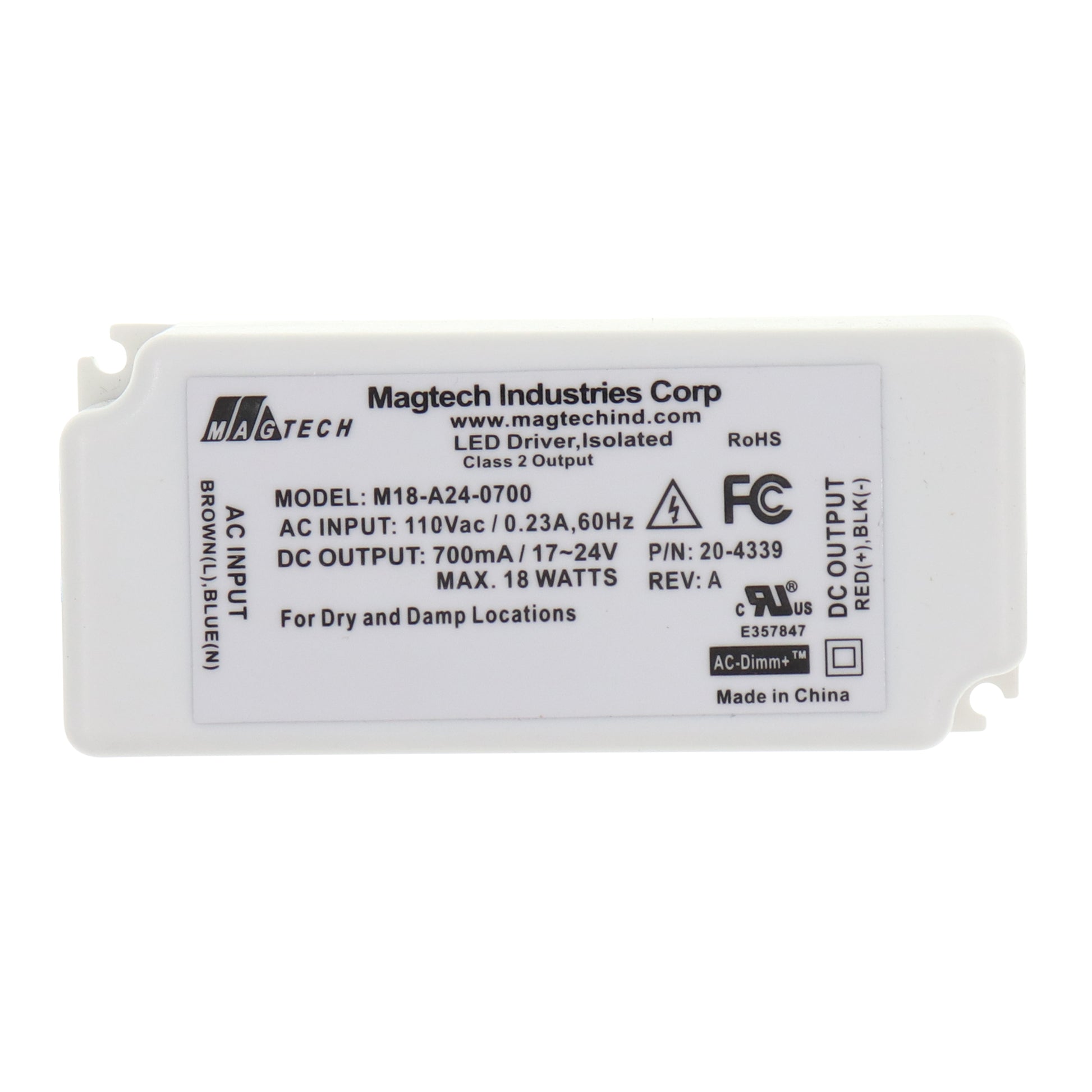

MAGTECH M18-A24-0700 CONSTANT CURRENT DIMMABLE LED DRIVER, 24V, 700MA, 20W
$4625
Save $11.75
Request Special Pricing
Couldn't load pickup availability
Product information
700mA constant current and an output voltage of between 15 and 24Vdc. The M18-U24-0700 has a maximum output of 20 watts. It can operate on an AC input voltage from 100 - 277V. The M18-U24-0700 is ELV (Reverse phase / Trailing edge dimmable. It is RoHS compliant and cULus and CE approved and is rated IP66 for dry and damp locations. It also has a small footprint of 3.36 x 1.50 x 1.09 inchesFeatures:
- Constant Current LED Driver
- 17-24-Vdc
- 700mA
- ELV (Reverse phase / Trailing edge dimmable)
- 20-Watts, 120-277VAC Input
- 700mA constant current and an output voltage of between 15 and 24Vdc. The M18-U24-0700 has a maximum output of 20 watts. It can operate on an AC input voltage from 100 - 277V. The M18-U24-0700 is ELV (Reverse phase / Trailing edge dimmable. It is RoHS compliant and cULus and CE approved and is rated IP66 for dry and damp locations. It also has a small footprint of 3.36 x 1.50 x 1.09 inches
Color: White
Condition: New
Dims: 3.40-Inches x 1.50-Inches x 1.20-Inches (Length Width Height)
Model: M18-A24-0700
Package quantity: 1
VWA: 24-Volt 20-Watts 0.7-Amps
