Lutron

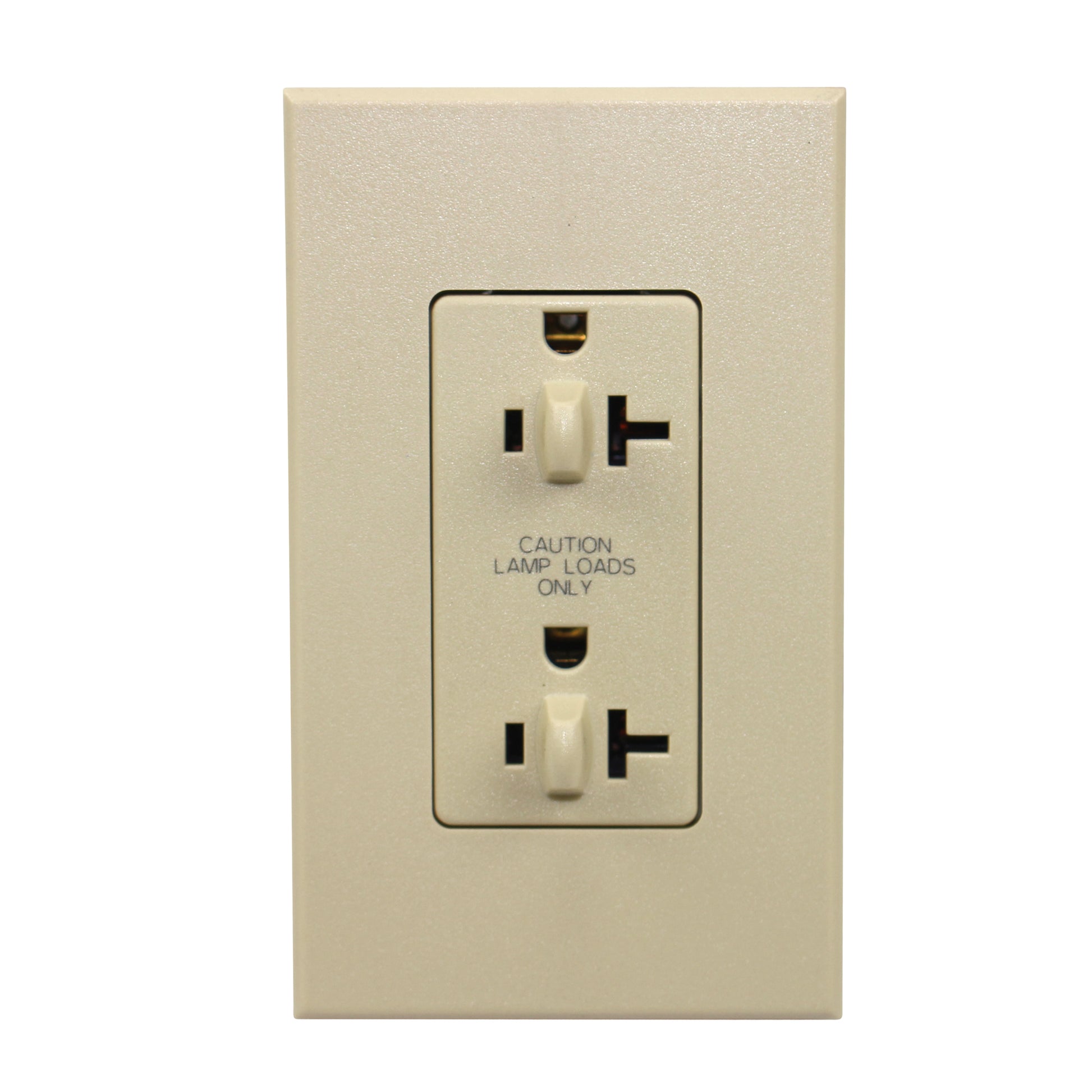

LUTRON NTR-20-DFDU ARCHITECTURAL DUPLEX RECEPTACLE, OUTLET, 125V, 20A, IVORY

LUTRON NTR-20-DFDU ARCHITECTURAL DUPLEX RECEPTACLE, OUTLET, 125V, 20A, IVORY

NTR-20-DFDU-IV
Regular price $4750
Regular price
$4750

$6400

Save $16.50

Shipping calculated at checkout.

8 in Stock

Free delivery

Case Pack

Request Special Pricing

Thank you for your message! We will get back to you as soon as possible.

Product information

Lutron NTR-20-DFDU Nova T Receptacle for Dimming Duplex for Dimming both Connected Loads Projecting Nubs Prevent Standard Plugs from Being used Requires Replacement Plugs for Dimming use Includes 1-gang Wallplate Important Notes: If the Hot and Dimmed Hot Feeds to the Split Duplex HFDU are Supplied from Different Circuits or Splitwired, with Separate Switch-Legs, a means to Simultaneously Disconnect these Circuits must be Provided at the Panel Board where they Originate (NEC 210.7(C) 2002 Edition). A 2-pole Circuit Breaker or Two Single-pole Circuit Breakers with an Approved Handle Tie can be used to Accomplish this Simultaneous Disconnect. Feed-through Dimming Panels, which are those without Breakers, are Recommended when using the HFDU Receptacles and Plug for Dimming Use are UL Listed for use with all Lutron Wallbox Dimmers Included in this Catalog. If there is only One Electrical feed to the Receptacle, then the Duplex DFDU must be used For Detailed Information, See Application Notes #91 (Guide to Dimming Table Lamps) and #109 Wall Plate Included Finish: Ivory Type: Architectural Matte Dimming

Features:

  • Finish: Ivory Type: Architectural Matte
  • Wall Plate Included
  • 20A, 125V, 60Hz
  • Ivory

  • Lutron NTR-20-DFDU Nova T Receptacle for Dimming Duplex for Dimming both Connected Loads Projecting Nubs Prevent Standard Plugs from Being used Requires Replacement Plugs for Dimming use Includes 1-gang Wallplate Important Notes: If the Hot and Dimmed Hot Feeds to the Split Duplex HFDU are Supplied from Different Circuits or Splitwired, with Separate Switch-Legs, a means to Simultaneously Disconnect these Circuits must be Provided at the Panel Board where they Originate (NEC 210.7(C) 2002 Edition). A 2-pole Circuit Breaker or Two Single-pole Circuit Breakers with an Approved Handle Tie can be used to Accomplish this Simultaneous Disconnect. Feed-through Dimming Panels, which are those without Breakers, are Recommended when using the HFDU Receptacles and Plug for Dimming Use are UL Listed for use with all Lutron Wallbox Dimmers Included in this Catalog. If there is only One Electrical feed to the Receptacle, then the Duplex DFDU must be used For Detailed Information, See Application Notes #91 (Guide to Dimming Table Lamps) and #109 Wall Plate Included Finish: Ivory Type: Architectural Matte Dimming

Color: Ivory

Condition: New

Dims: -Inches x -Inches x -Inches (Length Width Height)

Model: NTR-20-DFDU-IV

Package quantity: 1

VWA: 125-Volt
