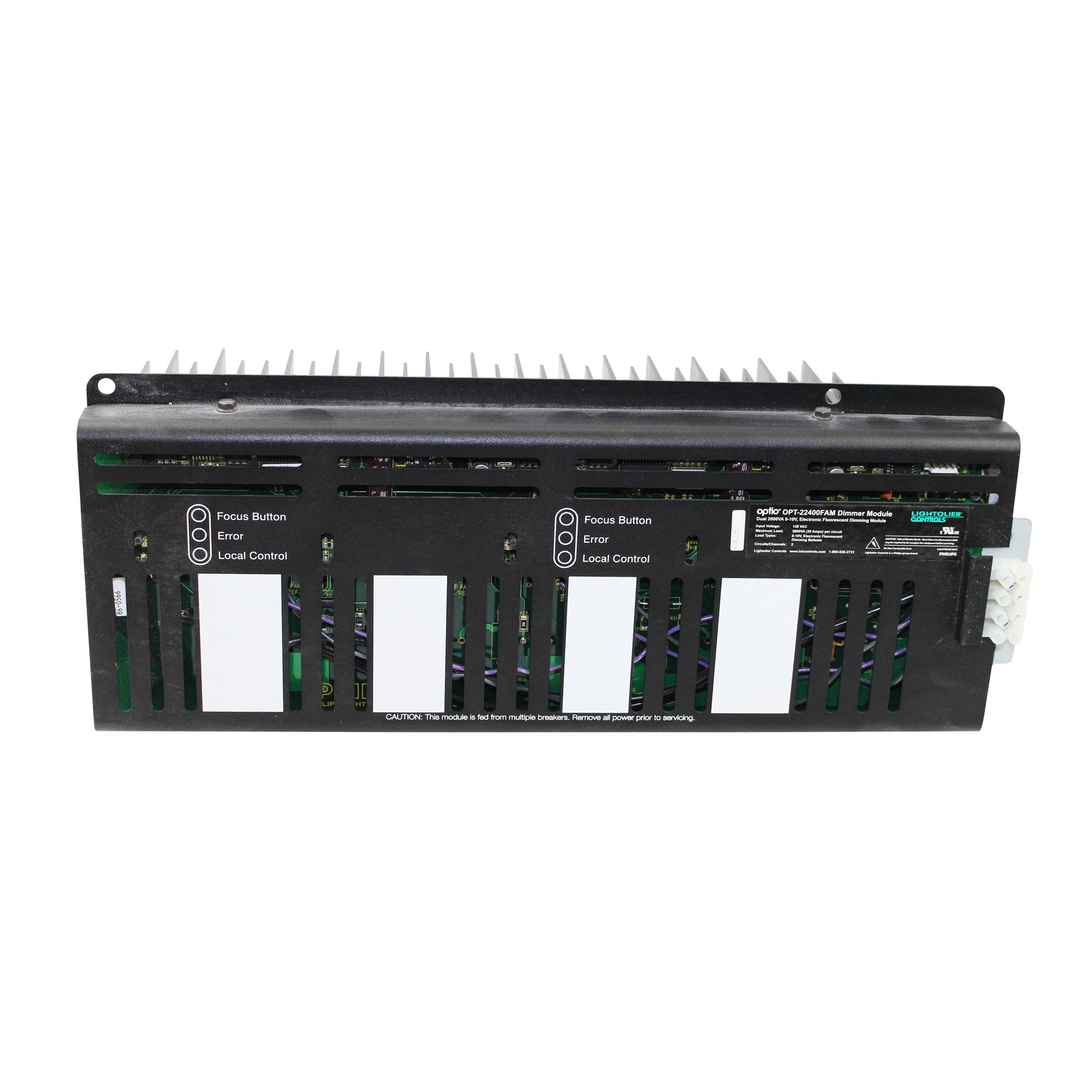

LIGHTOLIER OPT22400FAM OPTIO DIMMING MODULE, 2 CIRCUIT, 120V, LED DIMMING,10VDC
LIGHTOLIER OPT22400FAM OPTIO DIMMING MODULE, 2 CIRCUIT, 120V, LED DIMMING,10VDC
$1,48749
Save $587.50
Request Special Pricing
Couldn't load pickup availability
Product information
Optio® OPT22400FAM / OPT22400FAM15 Dimmer Modules contain two high-quality 0- 10VDC dimmers. Each dimmer employs solid-state Silicon Controlled Rectifier (SCR) devices which are rated at no less than double the dimmer's rated capacity. They are c.U.L. recognized and rated for operation at 120VAC, with a capacity of 2400VA (OPT22400FAM) and 1800VA (OPT22400FAM15) each. The module is ruggedly designed, fully enclosed module. Modules are easily installed into an Optio® Lighting Control Panel, and may be easily interchanged with other Optio® modules.Features:
- Two Circuits rated at 2400VA (OPT22400FAM) and 1800VA (OPT22400FAM15) each
- Designed to dim Advance® Mark 7®, Osram Quicktronic® Powersense™, LED, and other 0-10VDC dimming ballasts
- Local 'Focus' button allows manual operation of dimmer circuit
- Dual-color LED indicators provide status information
- Mounts into any Optio® 120VAC Lighting Control Panel
- Optio® OPT22400FAM / OPT22400FAM15 Dimmer Modules contain two high-quality 0- 10VDC dimmers. Each dimmer employs solid-state Silicon Controlled Rectifier (SCR) devices which are rated at no less than double the dimmer's rated capacity. They are c.U.L. recognized and rated for operation at 120VAC, with a capacity of 2400VA (OPT22400FAM) and 1800VA (OPT22400FAM15) each. The module is ruggedly designed, fully enclosed module. Modules are easily installed into an Optio® Lighting Control Panel, and may be easily interchanged with other Optio® modules.
Color: Black
Condition: New
Dims: -Inches x -Inches x -Inches (Length Width Height)
Model: OPT22400FAM
Package quantity: 1
VWA: 120-Volt 2400-Watts
