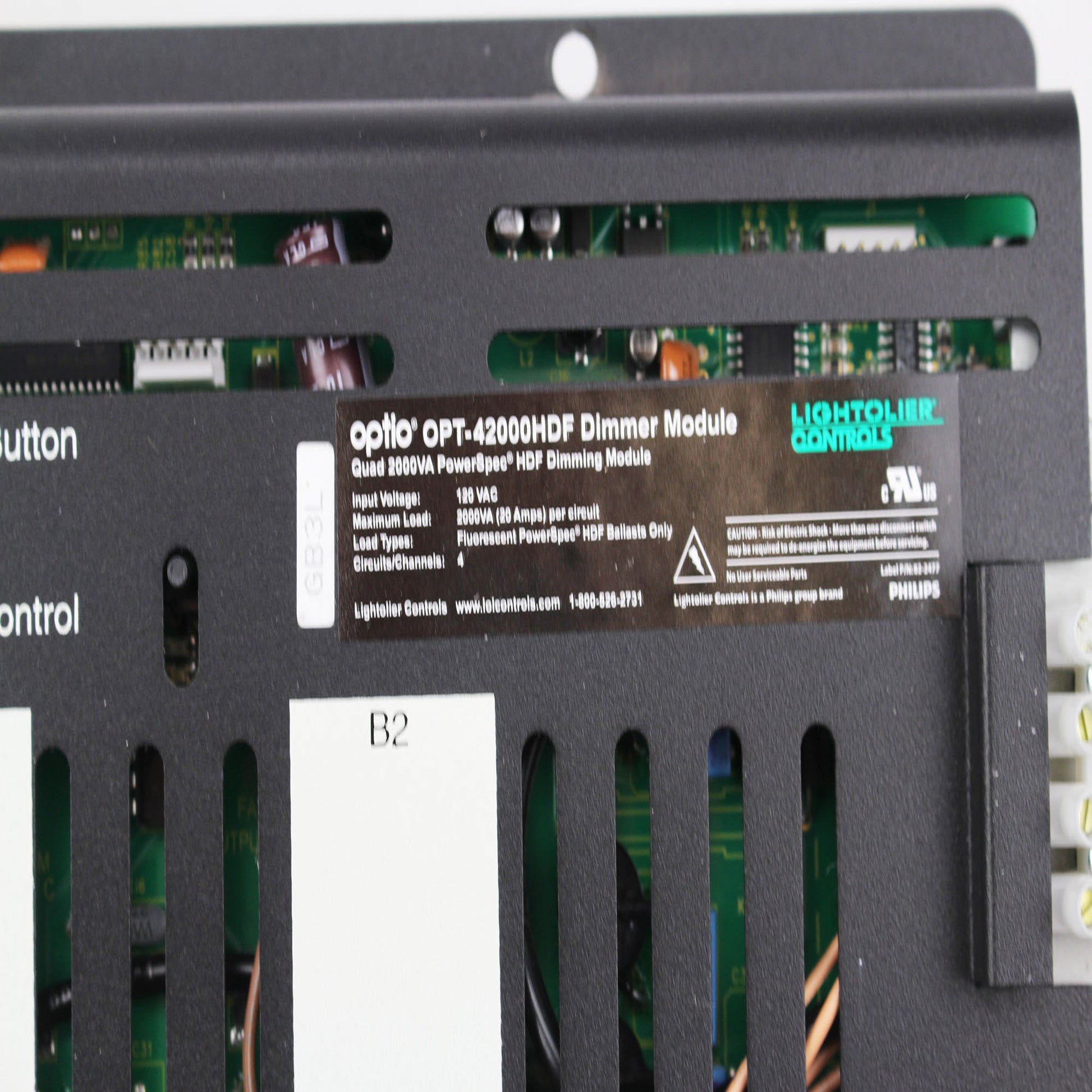

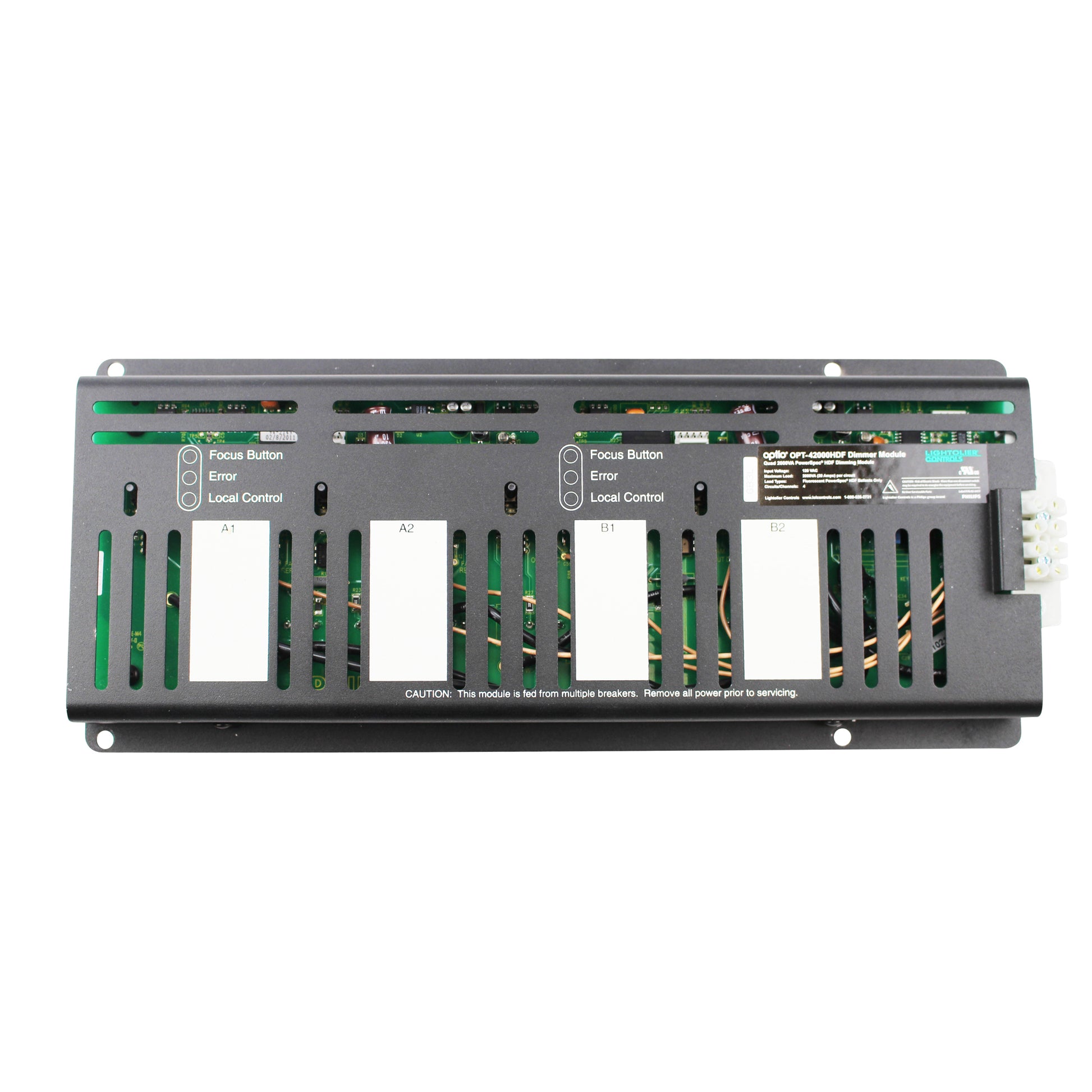

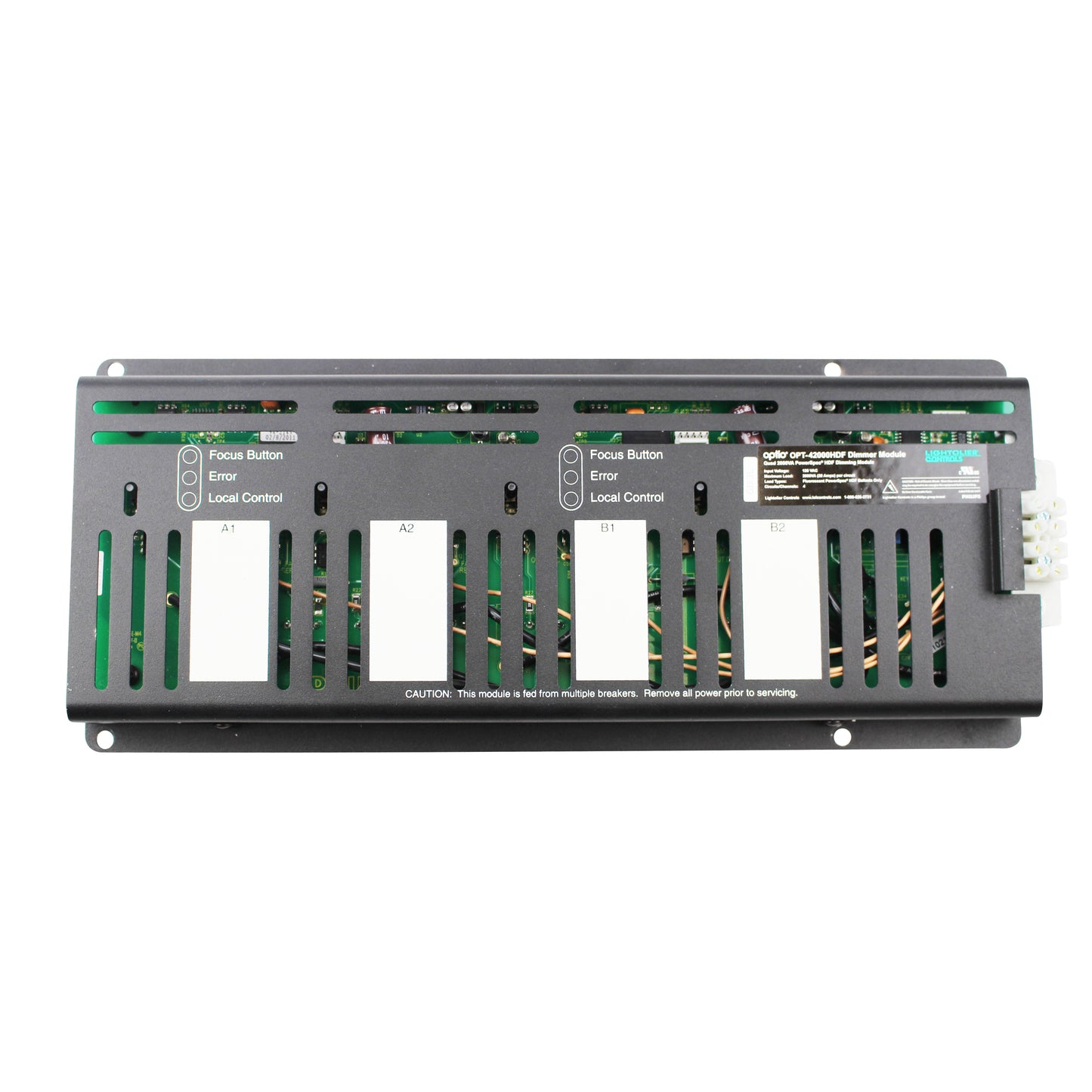

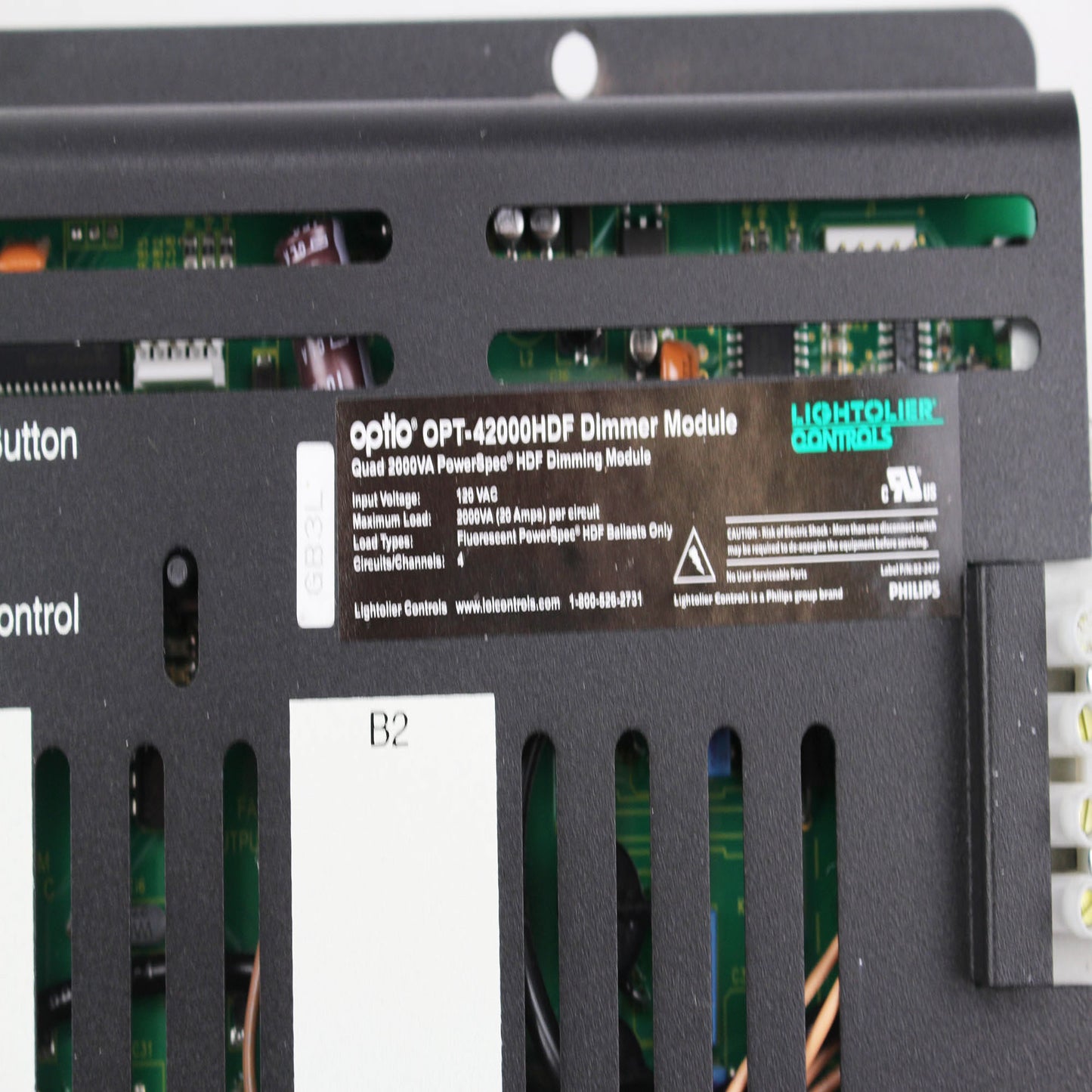

LIGHTOLIER OPT-42000HDF OPTIO POWERSPEC HDF FLUORESCENT DIMMING MODULE
- Four circuits rated at 2000VA each (OPT42000HDF15 rated for 1800VA per dimmer)
- Designed to dim Lightolier® Controls PowerSpec® HDF Fluorescent Dimming Ballasts
- Local 'Focus' button allows manual operation of each dimmer circuit.
- Dual-color LED indicators provide status information
- Mounts into any Optio® 120VAC Lighting Control Panel
- Optio® OPT42000HDF/OPT42000HDF15 Dimmer Modules contain four high-quality PowerSpec® HDF Fluorescent dimmers. Each dimmer employs solid-state Silicon Controlled Rectifier (SCR) devices which are rated at no less than double the dimmer's rated capacity. They are c.U.L. recognized and rated for operation at 120VAC, with a capacity of 2000VA each (OPT42000HDF15 rated for 1800VA each). The module is ruggedly designed, fully enclosed module. Modules are easily installed into an Optio® Lighting Control Panel, and may be easily interchanged with other Optio® modules.
MODEL NUMBER: OPT42000HDF
PACKAGE QUANTITY: 1
DIMENSIONS: -Inches x -Inches x -Inches (Length Width Height)
AVAILABLE STOCK: 5
