LIGHTOLIER 6008NBK BASIC LYTESPAN TRACK SECTION, SINGLE-CIRCUIT, BLACK, 8-FEET
AVAILABLE STOCK: 151

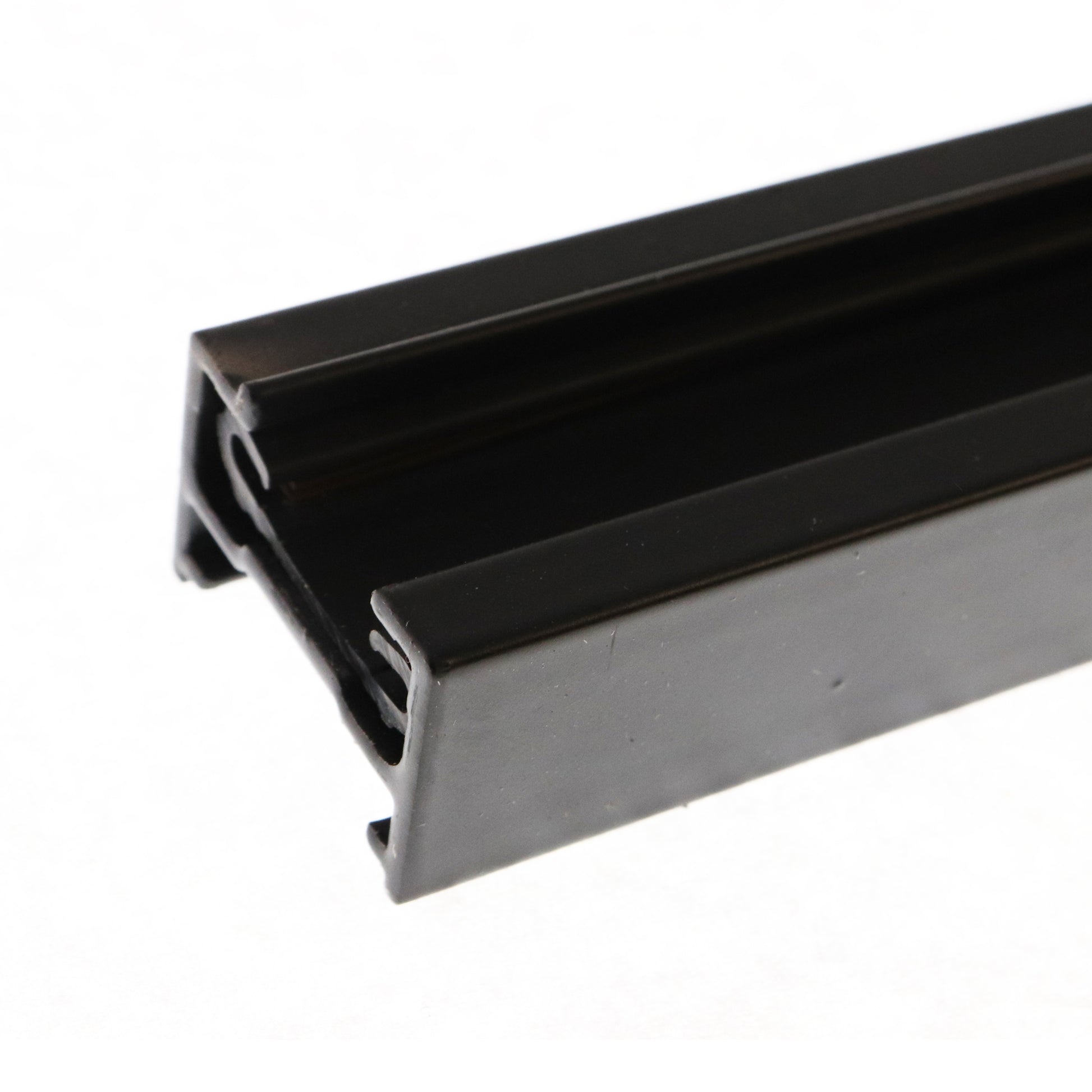

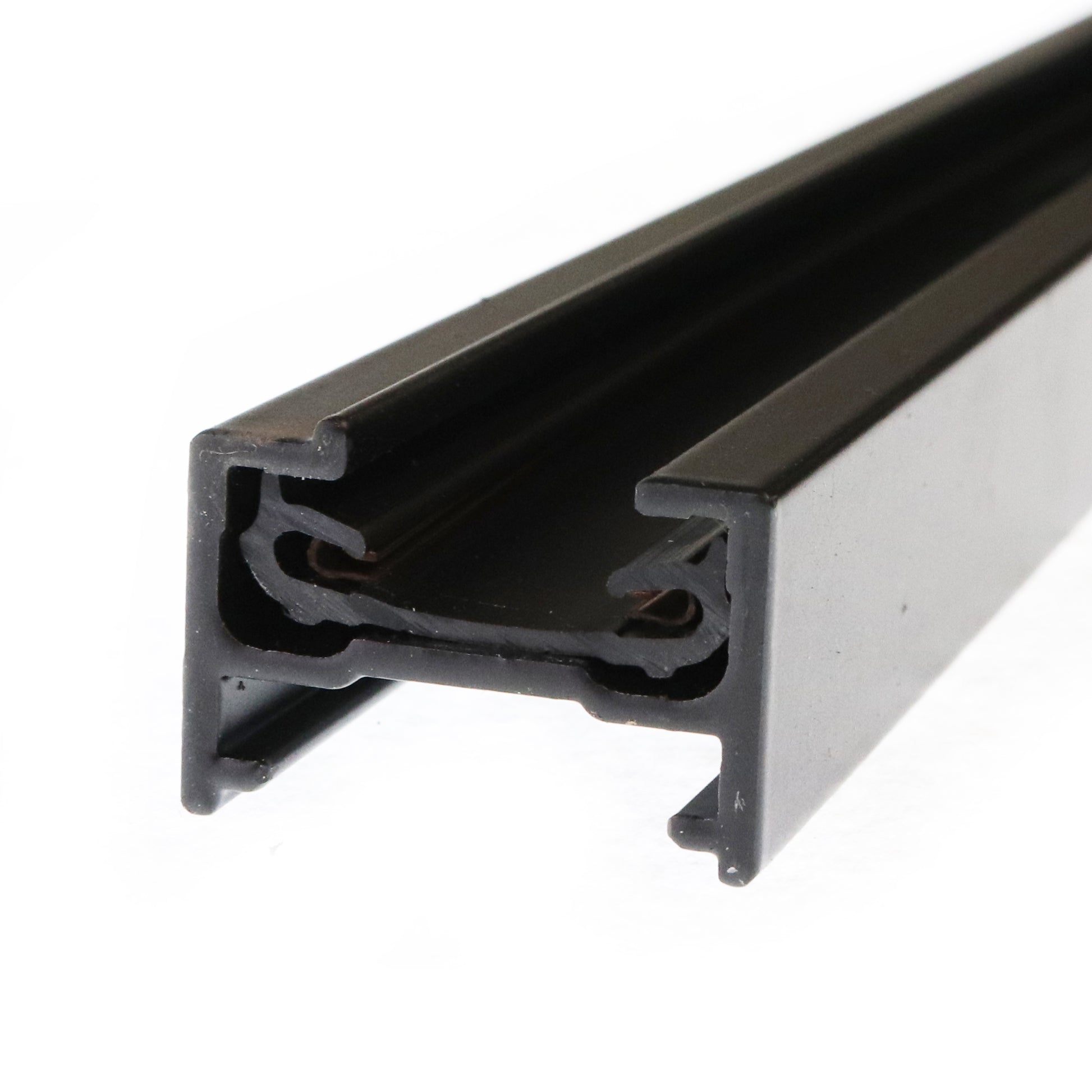

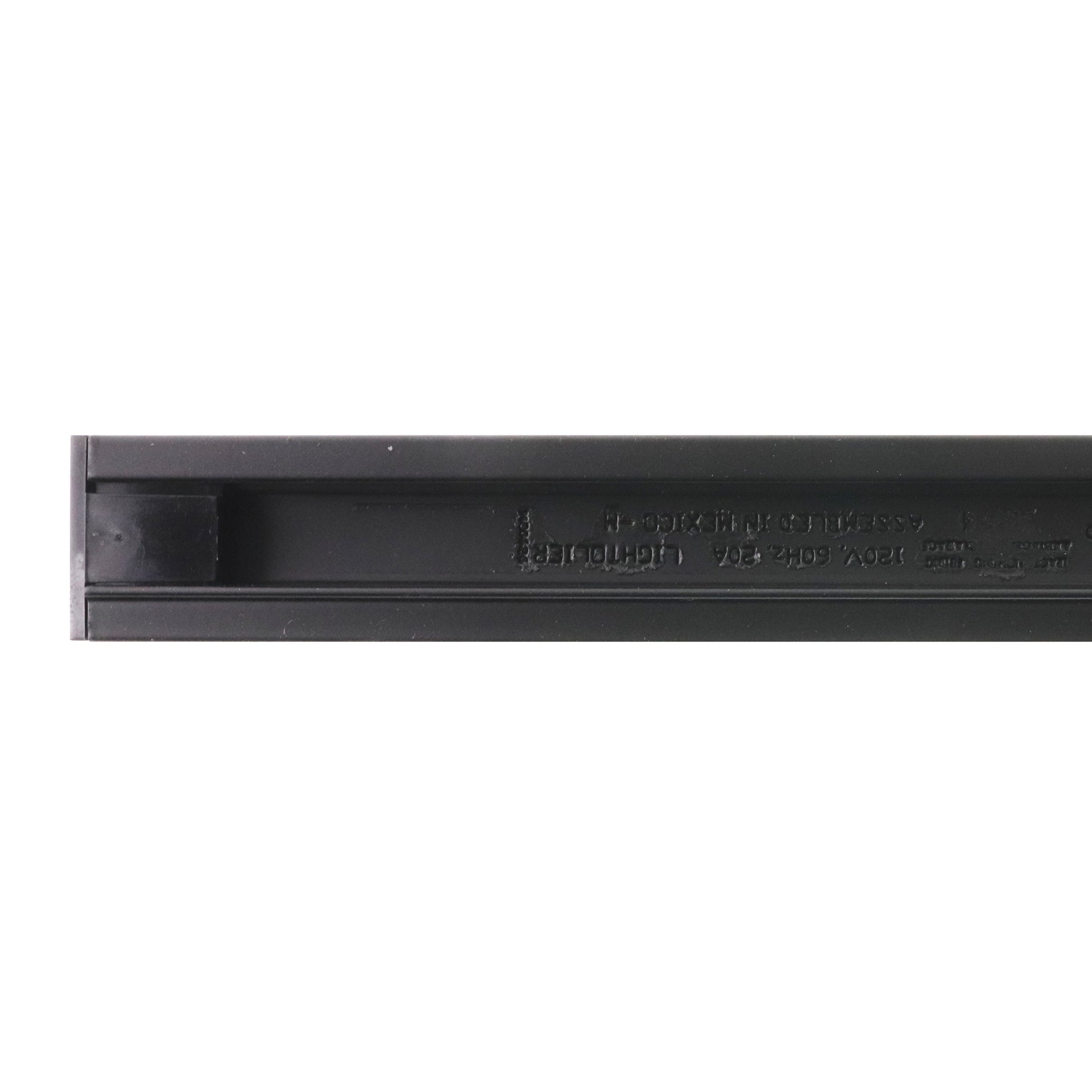

- 8-Feet Long Single-Circuit Basic LyteSpan Plain Track Section

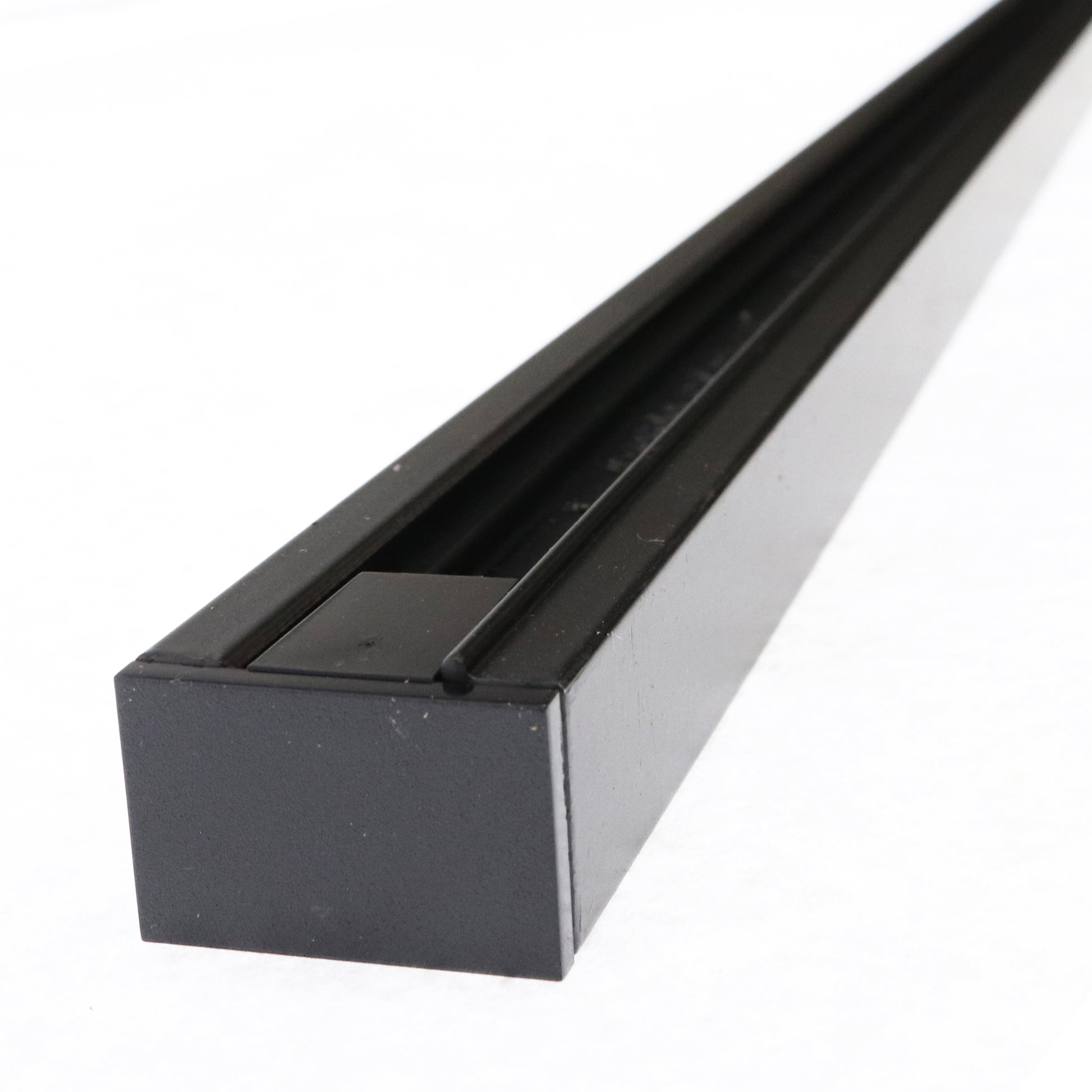

- Includes Dead-End (No Live-End)
- Painted Black Finish
- 20-Amps @ 120-VAC
- 93-1/16" Long x 1-5/32" Wide x 3/4" Deep
- Basic Lytespan is a one circuit electrical distribution system designed to support and supply all Lytespan lighting units in a flexible manner. The track can be installed individually in straight runs or in a variety of patterns. The track may be surface or stem mounted. The track is not intended to be cable mounted. All lengths can be field cut. Capacity is 20 amps. at 120 volts per branch circuit (2400 watts incandescent load). The track units are polarized and continuously grounded throughout. Electrical conductors are concealed in a insulating liner. Intended for wiring to branch circuit building wire with ground. All wiring must be in accordance with National and Local Codes. Track units plug together and lock securely to prevent accidental separation. Lytespan lighting units can be attached at any point along the track. cUL; I.B.E.W. All painted finishes are baked enamel.
-
COLOR/FINISH: Black
CONDITION: New
MODEL NUMBER: 6008NBK
PACKAGE QUANTITY: 1
POWER SPECS: 120-Volt
DIMENSIONS: 93.00-Inches x 1.30-Inches x 0.80-Inches (Length Width Height)
AVAILABLE STOCK: 151
