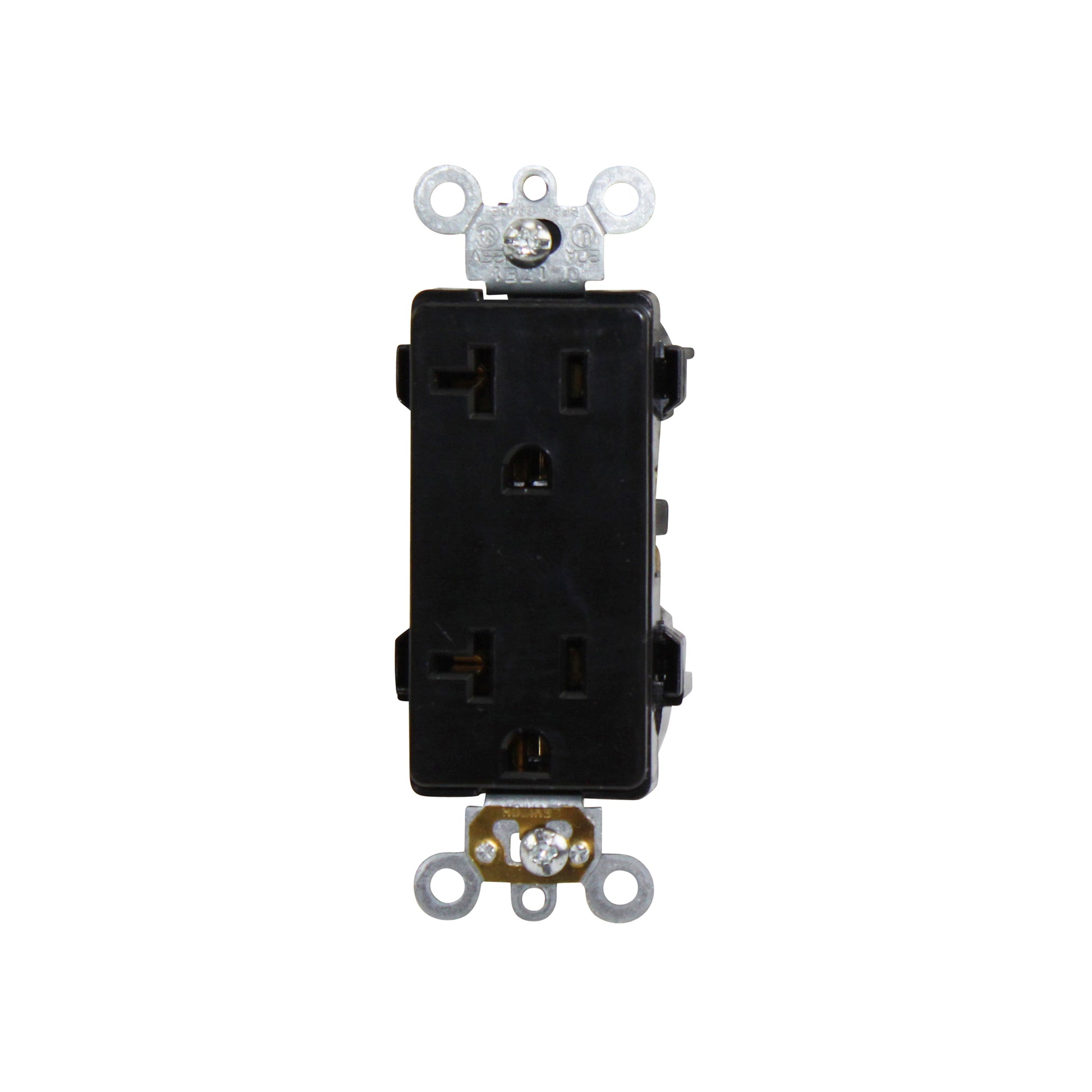

LEVITON 16352-E 20A 125V DECORA DUPLEX RECEPTACLE COMMERCIAL GRADE BLACK

Features:

• Back Wire and Side Wire Terminal Options

• Heavy-Gauge Zinc-Plated Steel Locked-in Wraparound Strap

• Brass Staked on Self-Grounding Clip

• Heavy-Duty Triple-Wipe Brass Contacts for Long Service Life

• Impact-Resistant Thermoplastic Construction


• Product Information:Leviton's 16352 is a Decora style 20 Amp/ 125 Volt commercial grade duplex receptacle with a selfgrounding tab and both side and rear wiring options.For use with Decora and Decora Plus wallplates. Sold Separately. Features:#149; Quick and Easy Installation#149; Leviton's Simplified Quickwire System#149; Side and Rear Wiring #149; Grounding Screw Attached#149; Accepts Wiring Up to #12 AWG; #14 AWG in Canada#149; Durable ImpactResistant Thermoplastic Switch and Frame Specifications:#149; :Color: Black#149; Ground: Self Grounding #149; Amperage: 20 Amp #149; Voltage: 125 Volt #149; NEMA: 520R #149; Pole: 2 #149; Wire: 3 #149; Termination: Side an Rear #149; Face Material: Thermoplastic Nylon #149; Body Material: Thermoplastic Nylon#149; Strap Material: Steel#149; Dimensions: 3.28"H (4.06" with break off ears) x 1.31"W #149; Environmental Specifications Flammability Rated V2 per UL94 #149; Operating Temp. 40C to 60C #149; AC Horsepower RatingsAt Rated Voltage 1 HP

Color: Black

Condition: New

Dims: -Inches x -Inches x -Inches (Length Width Height)

Model: 16352-E

Package quantity: 1
