KIM LIGHTING LTV82FF LIGHTVAULT 8 LED IN-GROUND LANDSCAPE LIGHT, BLUETOOTH, 10"
KIM LIGHTING LTV82FF LIGHTVAULT 8 LED IN-GROUND LANDSCAPE LIGHT, BLUETOOTH, 10"
$1,78900
Save $234.50
Request Special Pricing
Couldn't load pickup availability
Product information

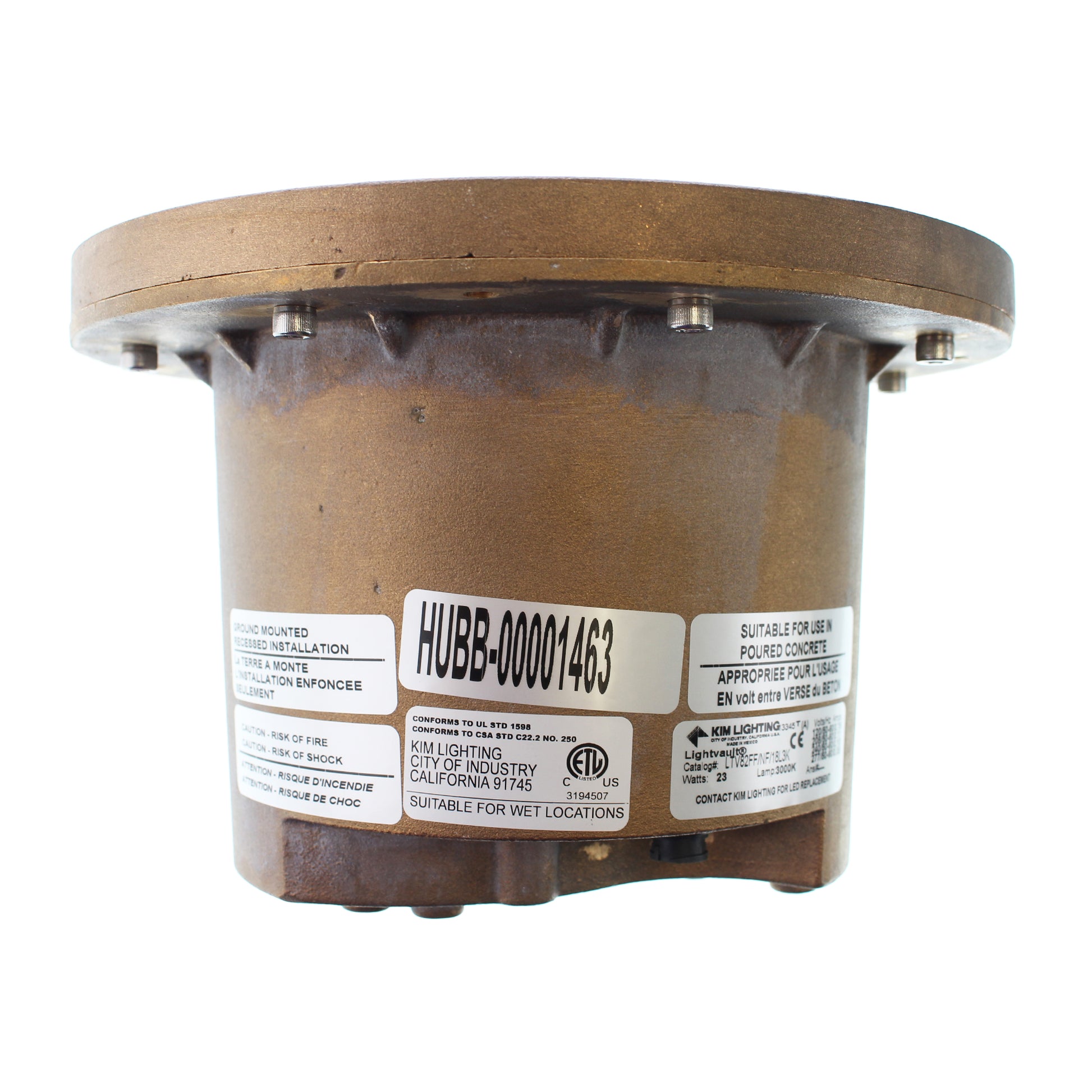

Certifications - Sealed IP68 LED light engine, Advanced thermal management provides long life in excess of 100,000+ hours, Runs cool to the touch - less than 40°C. Pour Box rough-in housing for installation below grade. High temperature UV resistant thermal plastic, F” minimum wall, black. Includes a splice box with molded plastic splice cover and silicone gasket. Three 1” NPT in bottom for through wiring on LTV81 and LTV82. Two 1” NPT in bottom for through wiring on LTV83. 107 cu. in. splice area for LTV81. 52 cu. in. splice area for LTV82. 24 cu. in. splice area for LTV83. Supplied with protective aluminum debris shield mask with orientation label for proper installation alignment for clean and easy installation in concrete pad or soil. Component Module: One-piece impregnated cast bronze, fully sealed component module secured to the face trims from the underside. A high temperature, anti-siphon, IP67 sealed cable extends from the component module to the splice box inside the housing. The fully assembled component module is secured to the housing with (4) ¼-20 tamper-resistant high grade stainless steel fasteners. One-piece cast bronze lens ring fastened to the component module from the underside shall provide a flat surface. Narrow Flood (NF) optical module are adjustable up to 15°.Features:

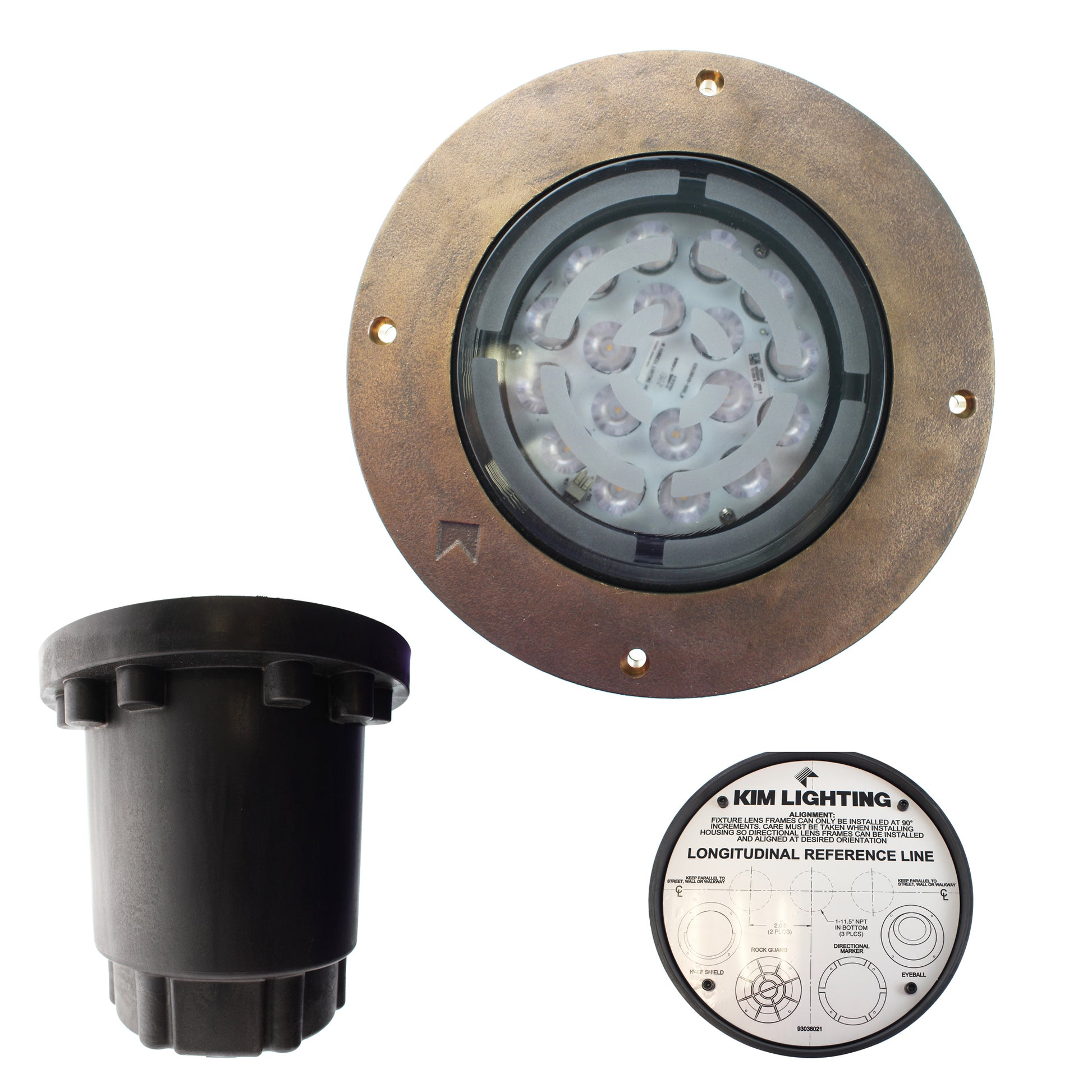

- Includes LTV82-PI Light Vault Back Box

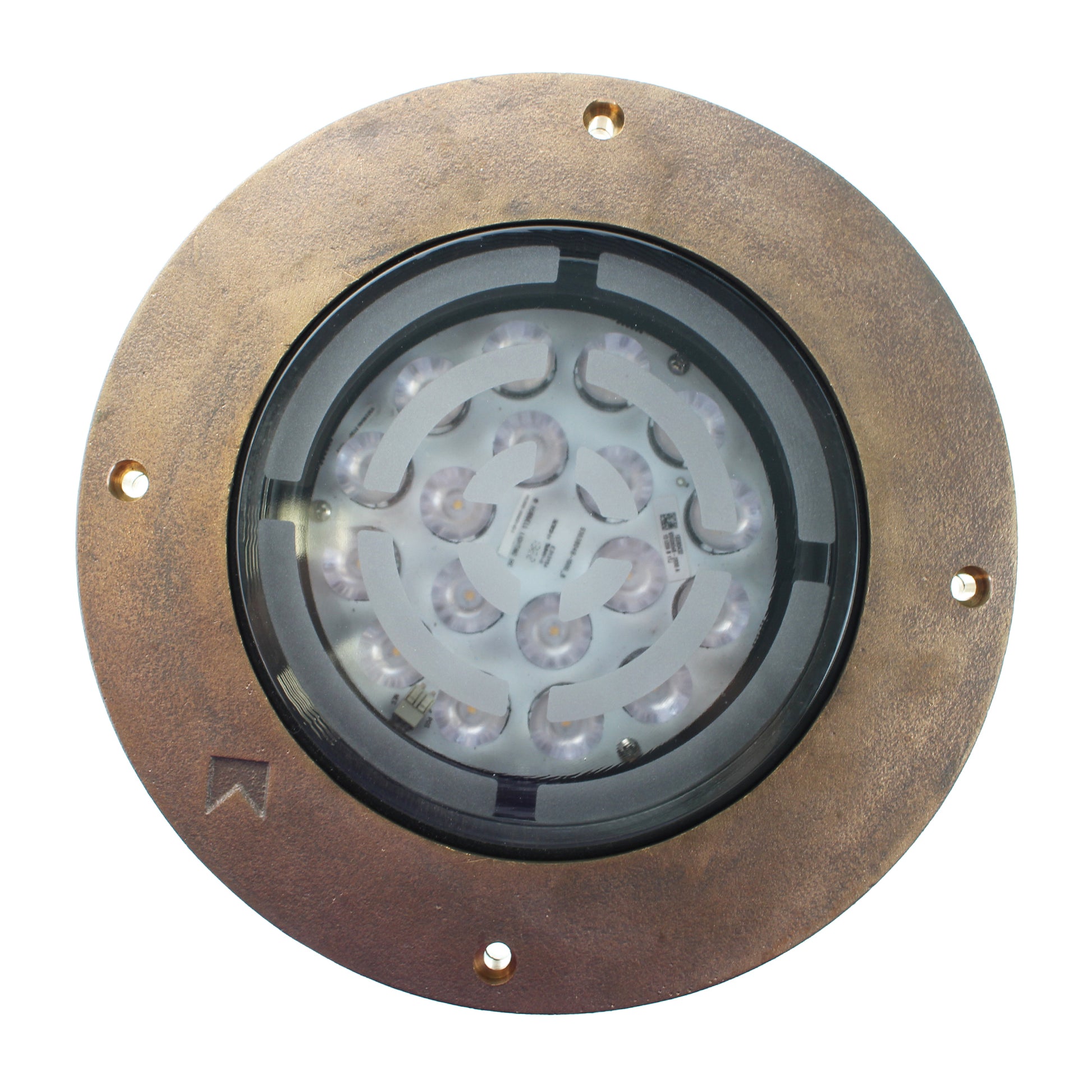

- 18 LED @ 3000K Color Temperature, 80-CRI

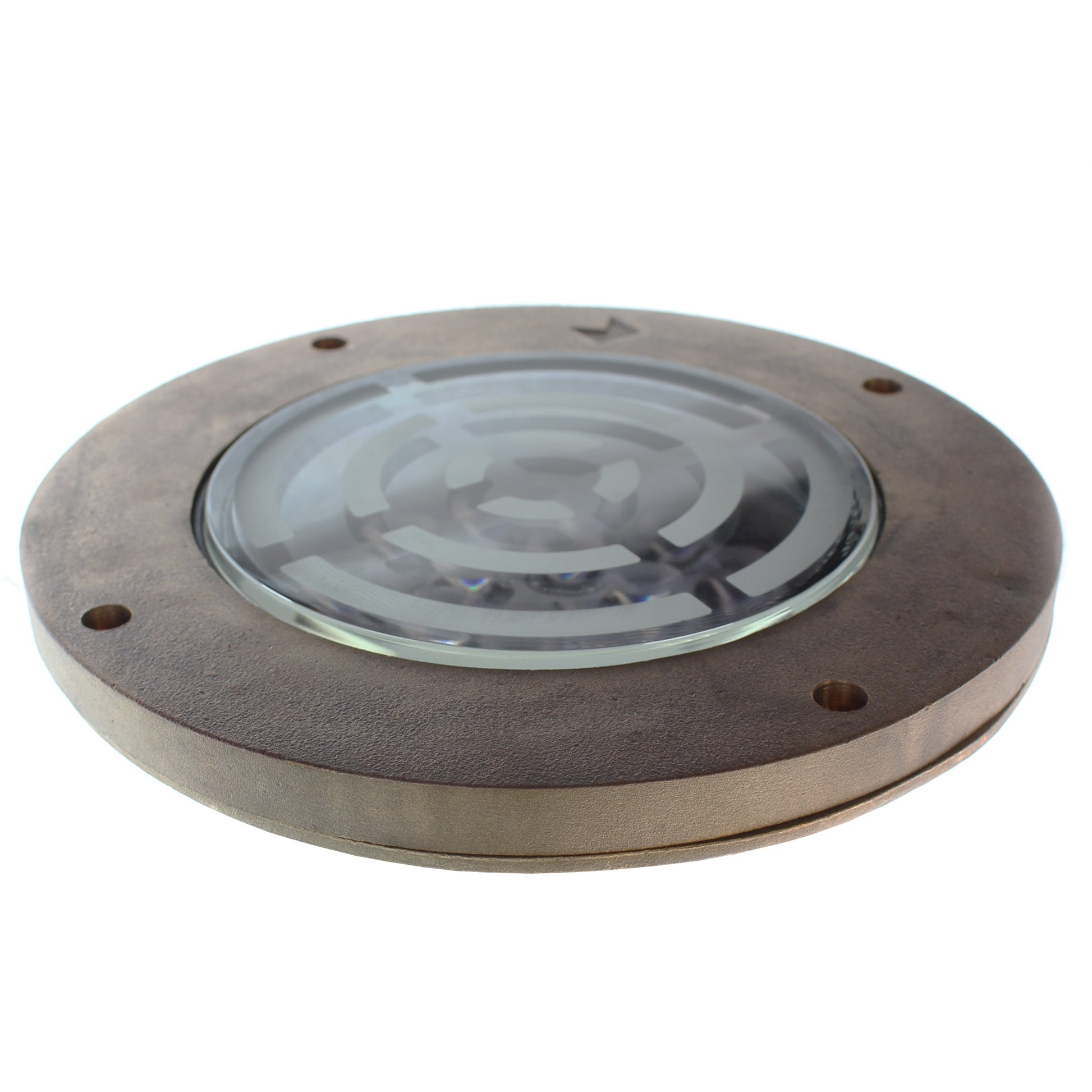

- Slip Resistant Lens, NEMA 5H X 5V
- 23-Watt Consumption, 120/277-Volt Input, 1049 Lumen, 1272 Candle Power, .9 Power Factor
- 43.9 x 52.8 Beam Angle, 76.4 x 81.3 Field Angle
- Certifications - Sealed IP68 LED light engine, Advanced thermal management provides long life in excess of 100,000+ hours, Runs cool to the touch - less than 40°C. Pour Box rough-in housing for installation below grade. High temperature UV resistant thermal plastic, F” minimum wall, black. Includes a splice box with molded plastic splice cover and silicone gasket. Three 1” NPT in bottom for through wiring on LTV81 and LTV82. Two 1” NPT in bottom for through wiring on LTV83. 107 cu. in. splice area for LTV81. 52 cu. in. splice area for LTV82. 24 cu. in. splice area for LTV83. Supplied with protective aluminum debris shield mask with orientation label for proper installation alignment for clean and easy installation in concrete pad or soil. Component Module: One-piece impregnated cast bronze, fully sealed component module secured to the face trims from the underside. A high temperature, anti-siphon, IP67 sealed cable extends from the component module to the splice box inside the housing. The fully assembled component module is secured to the housing with (4) ¼-20 tamper-resistant high grade stainless steel fasteners. One-piece cast bronze lens ring fastened to the component module from the underside shall provide a flat surface. Narrow Flood (NF) optical module are adjustable up to 15°.
Color: Copper
Condition: New
Dims: 11-Inches x 10-Inches x 11-Inches (Length Width Height)
Model: LTV82FF/NF/18L3KUV/SR/MO
Package quantity: 1
VWA: 120-Volt 23-Watts
