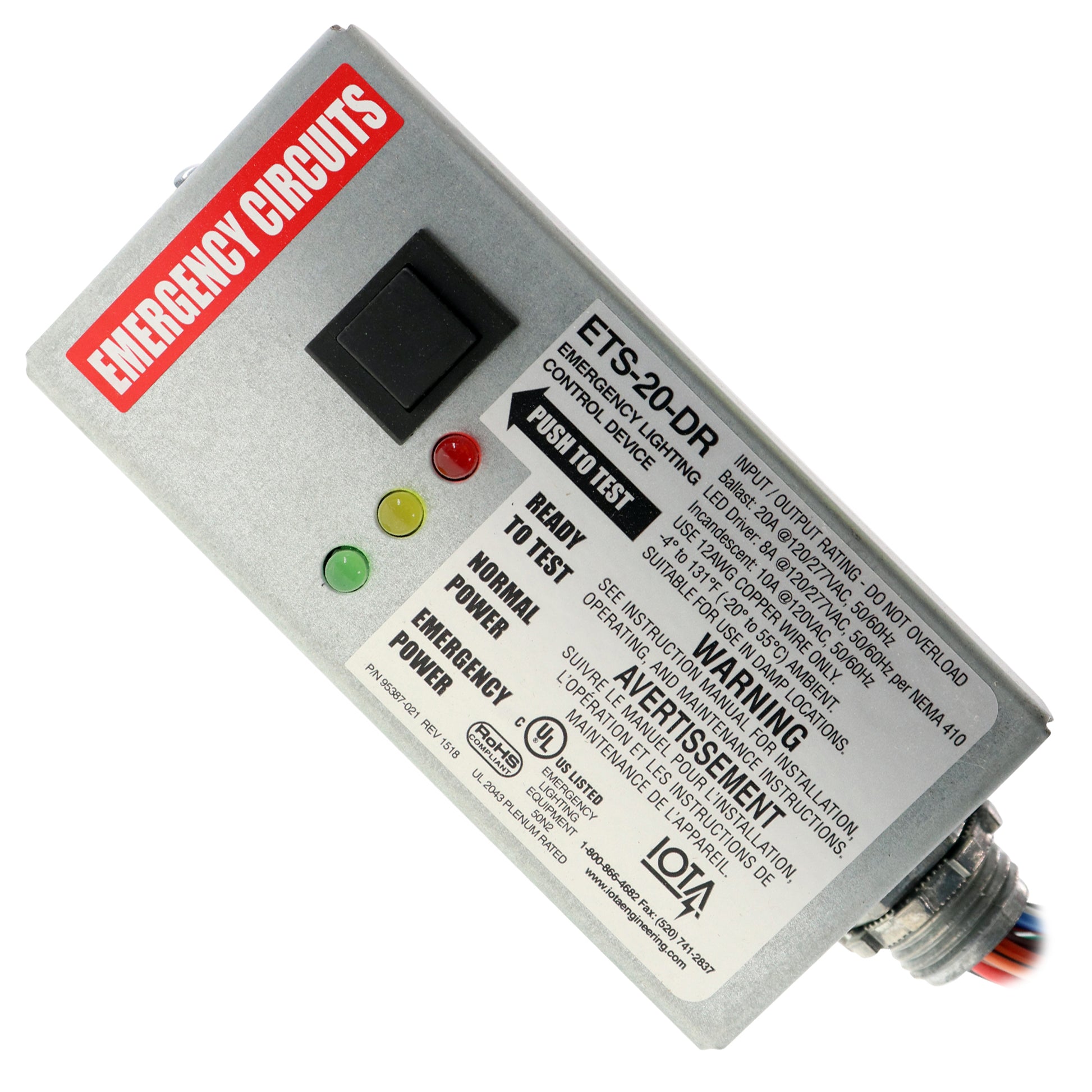

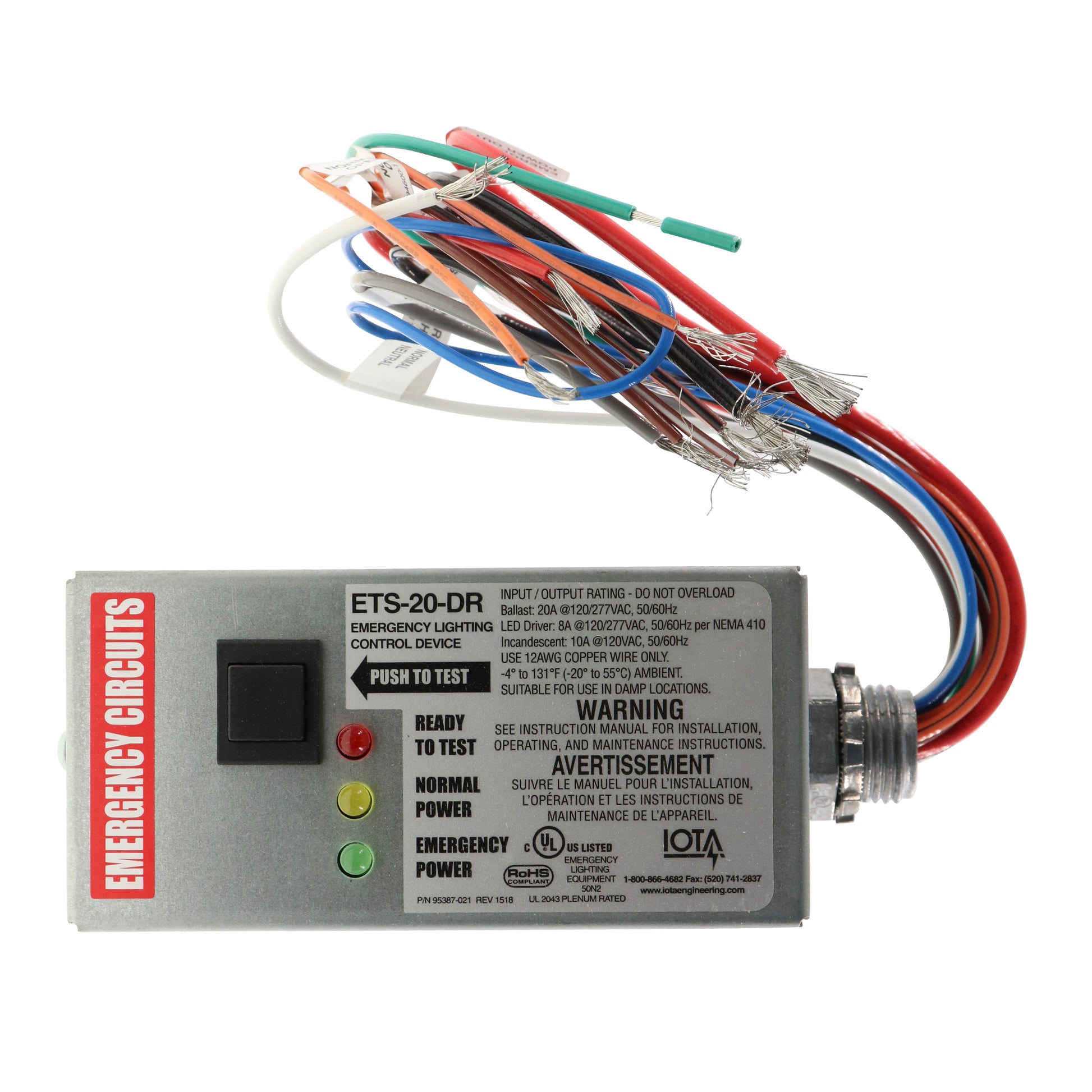

IOTA ETS-20-DR EMERGENCY LIGHTING CONTROL AUXILLIARY TRANSFER DEVICE, 120/277V

Iota Engineering Co. - ETS20DR
Condition: New


AVAILABLE STOCK: 1

  • $133.50
  • Save $30

Only 1 left!

    PRODUCT INFORMATION:

  • Emergency Lighting Control Device allows the use of auxiliary generator or inverter power on switched fixtures in power failure situations
  • Input: 120/277V, 50/60Hz
  • LED Driver: 8A at 120Vac/277Vac, 50/60Hz per NEMA 410
  • Max Ballast: 20A at 120/277Vac, 50/60Hz
  • Max Incandescent: 10A at 120Vac, 50/60Hz

  • The ETS-20-DR Emergency Lighting Control Device allows the use of auxiliary generator or inverter power on switched fixtures in power failure situations. The ETS-20-DR senses the loss of normal AC power and bypasses local control devices such as switches, occupancy sensors, or timers, providing emergency power to the fixtures regardless of the control setting. The ETS-20-DR allows for operation of the load at full light output until normal power is restored or for as long as the generator or inverter supply is available. The ETS-20-DR will work in conjunction with any fixture on the designated 20 amp circuit per rated specifications.

      COLOR/FINISH: Silver
      CONDITION: New
      MODEL NUMBER: ETS20DR
      PACKAGE QUANTITY: 1
      POWER SPECS: 120-Volt
      DIMENSIONS: 6.00-Inches x 2.50-Inches x 2.50-Inches (Length Width Height)
      AVAILABLE STOCK: 1
