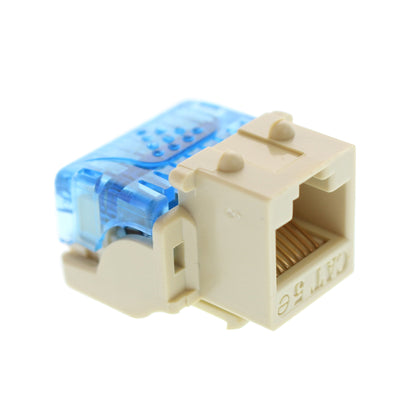

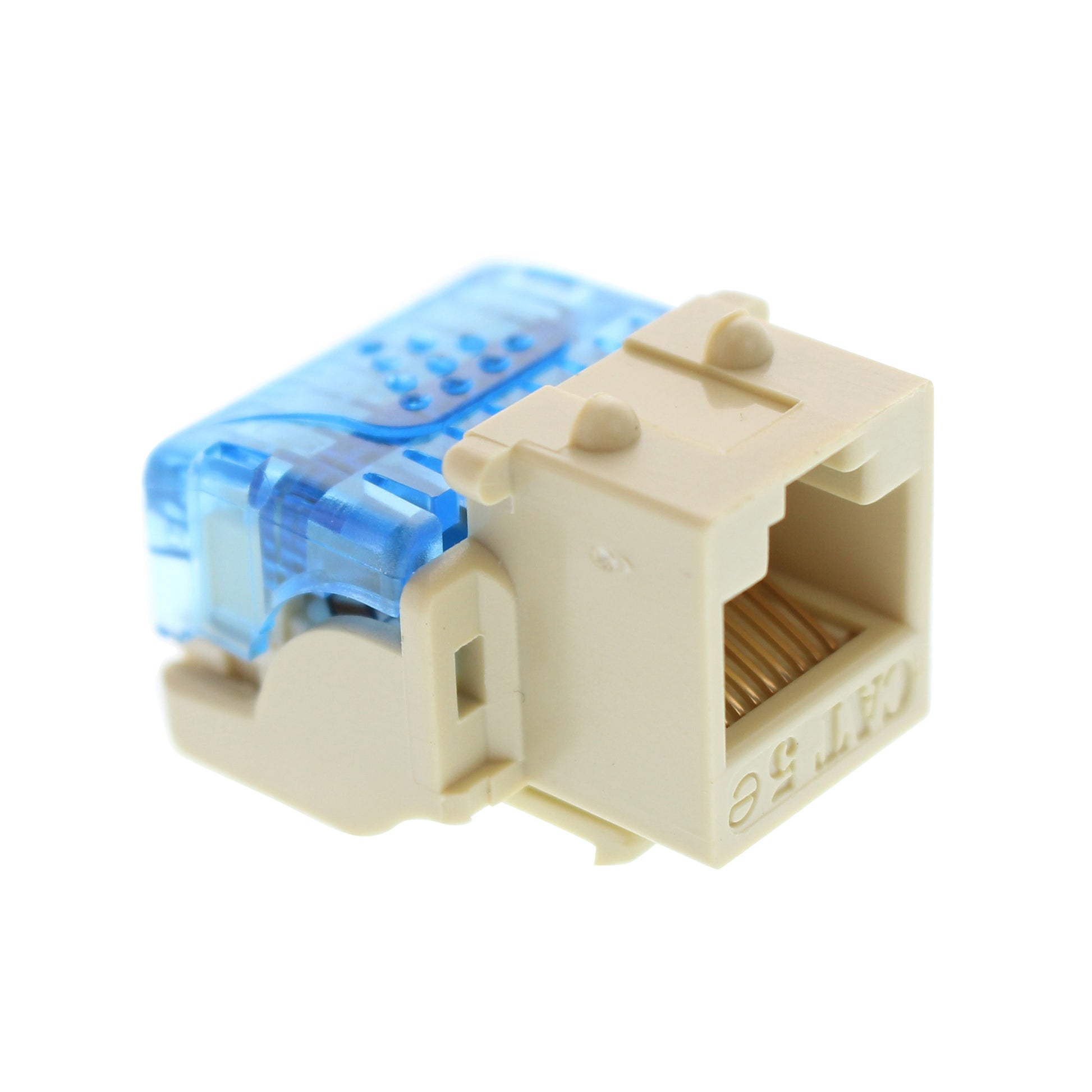

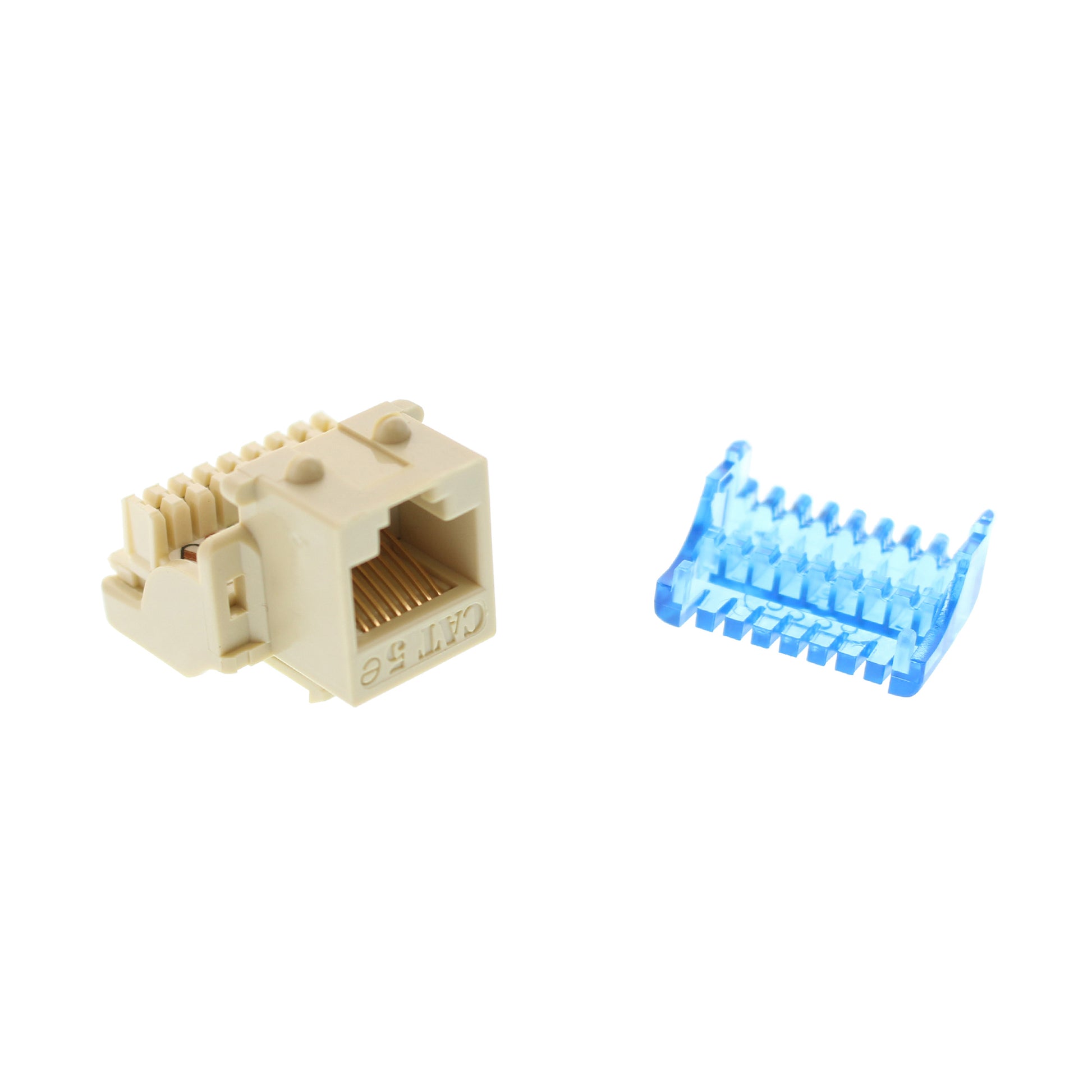

ICC IC1078E5IV CAT5E EZ MODULAR KEYSTONE JACK, RJ45, IVORY

Features:

• Cat5e Jack

• 8 Position

• 8 Conductor

• Female RJ45


• Features. CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth.. PCB technology provides maximum performance and superior signal quality.. Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.. Exceeds Category 5e industry performance requirements.. Terminate with 110 punch down tool ICACSPDT00.. Designed with rear 110 IDC reducing termination time.. Includes an integrated TIA-568AB color wiring diagram.. Backwards compatible to all lower rated category components.. Compatible with all ICC faceplate inserts surface mount boxes and blank patch panels.. Compatible with all ICC furniture faceplate bezels and surface mount boxes.. For use with ICC Category 5e patch cords.. Installation instructions included.. Exceeds ANSITIA-568-C requirements for permanent channel link and component performances.. UL 1863 Compliant.. Color - Ivory.CAT 5e Module. Electrical. Current rating 1.5 amps.. Insulation resistance 500 mohms min.. Contact resistance 20 mohms max.. DC resistance 0.1 ohm max.. Transmission performance exceeds Category 5e connecting hardware requirements specified in ANSITIA-568-C.2 when used with compatible horizontal cable.

Color: Ivory

Condition: New

Dims: 1.25-Inches x 1.00-Inches x 0.80-Inches (Length Width Height)

Model: IC1078E5IV

Package quantity: 1
