HUBBELL UL924 N/C SHUNT RELAY 120/277V, 20A SPST WITH 277VAC COIL
HUBBELL UL924 N/C SHUNT RELAY 120/277V, 20A SPST WITH 277VAC COIL
$13900
Save $19.50
Request Special Pricing
Couldn't load pickup availability
Product information

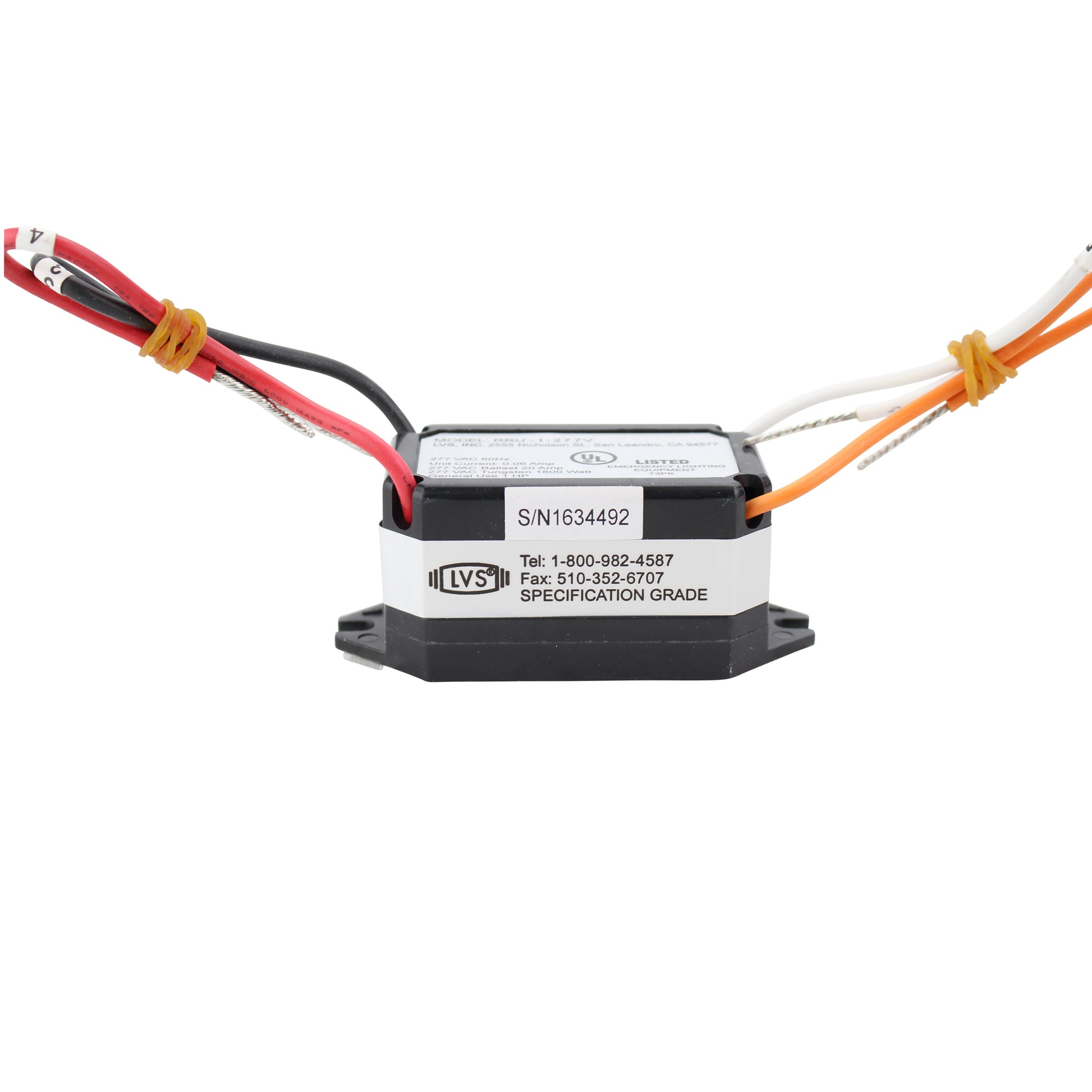

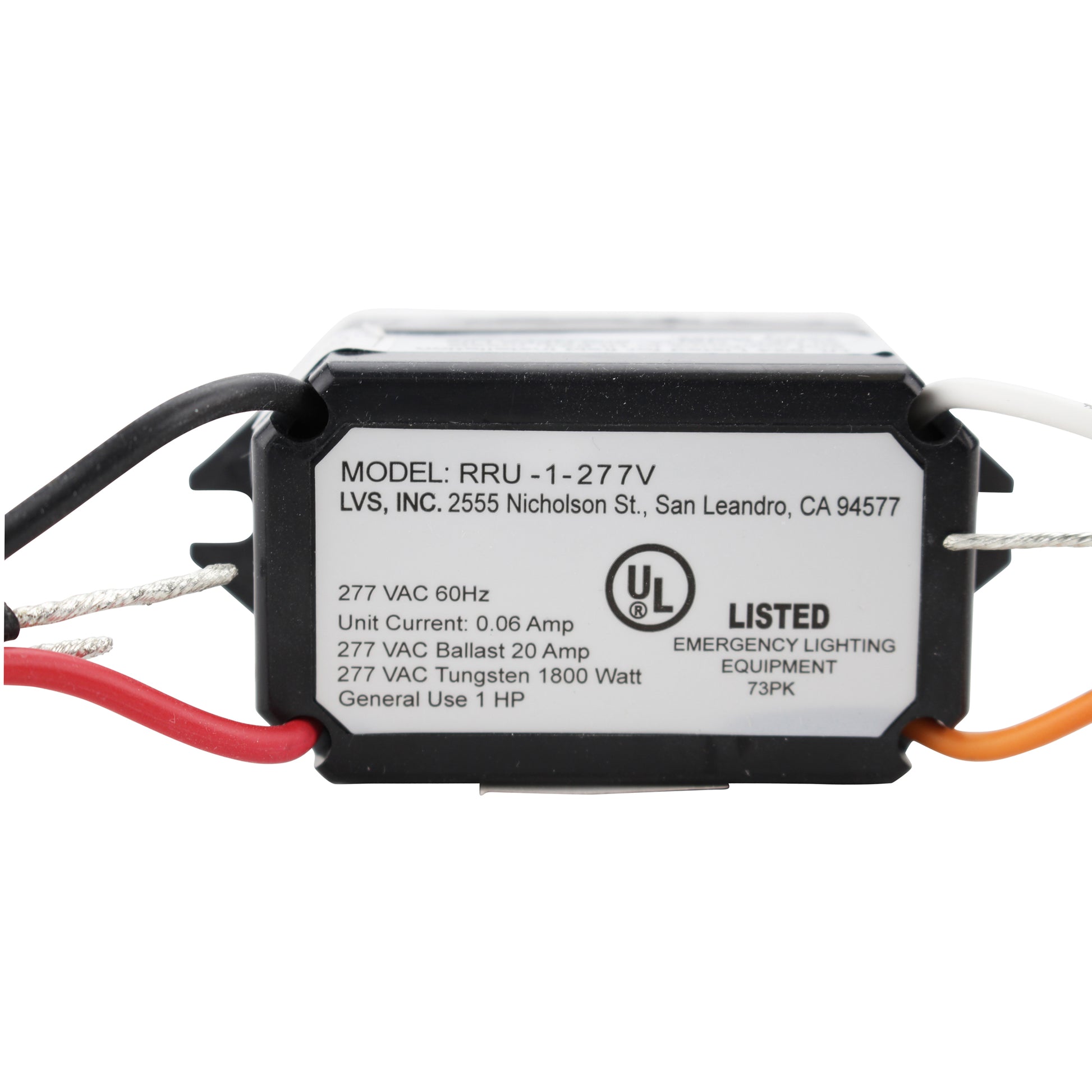

Hubbell Automation bypass shunt relay is rated at 120/277 VAC/20 Amps. It is mounted to single gang switch box. It has N/C isolated contacts and requires no load. It measures 3.750 x 1.750 x 1.250. It is ideal to provide bypass shunt to power emergency egress lighting. It has coil rated at 0.06 Amps at 120 VAC and 0.06 Amps at 277 VAC. It has contact rating of 1500 VA for tungsten at 120 VAC/ballast of 20 Amps at 120/277 VAC/2 hp at 277 VAC/1 hp at 120 VAC. Relay is UL listed.Features:
- 20 amp 120/277 volt
- N/C isolated Contacts
- no minimum load requirement
- 277 VAC Coil
- For use with power packs, LX and CX Panels
- Hubbell Automation bypass shunt relay is rated at 120/277 VAC/20 Amps. It is mounted to single gang switch box. It has N/C isolated contacts and requires no load. It measures 3.750 x 1.750 x 1.250. It is ideal to provide bypass shunt to power emergency egress lighting. It has coil rated at 0.06 Amps at 120 VAC and 0.06 Amps at 277 VAC. It has contact rating of 1500 VA for tungsten at 120 VAC/ballast of 20 Amps at 120/277 VAC/2 hp at 277 VAC/1 hp at 120 VAC. Relay is UL listed.
Color: black
Condition: New
Dims: -Inches x -Inches x -Inches (Length Width Height)
Model: UL924SR2
Package quantity: 1
VWA: 277-Volt 20-Amps
