HUBBELL FCSCMQ12R 2QUICK FIELD POLISH SC CRIMP FIBER OPTIC CONNECTOR (12 PACK)
- Fiber's higher traffic carrying capacity per volume reduces cabling and improves airflow
- Optional 3mm cable kit
- Telcordia style 900 micron strain relief boot
- 500 mating service life, 0.1 DB repeatability

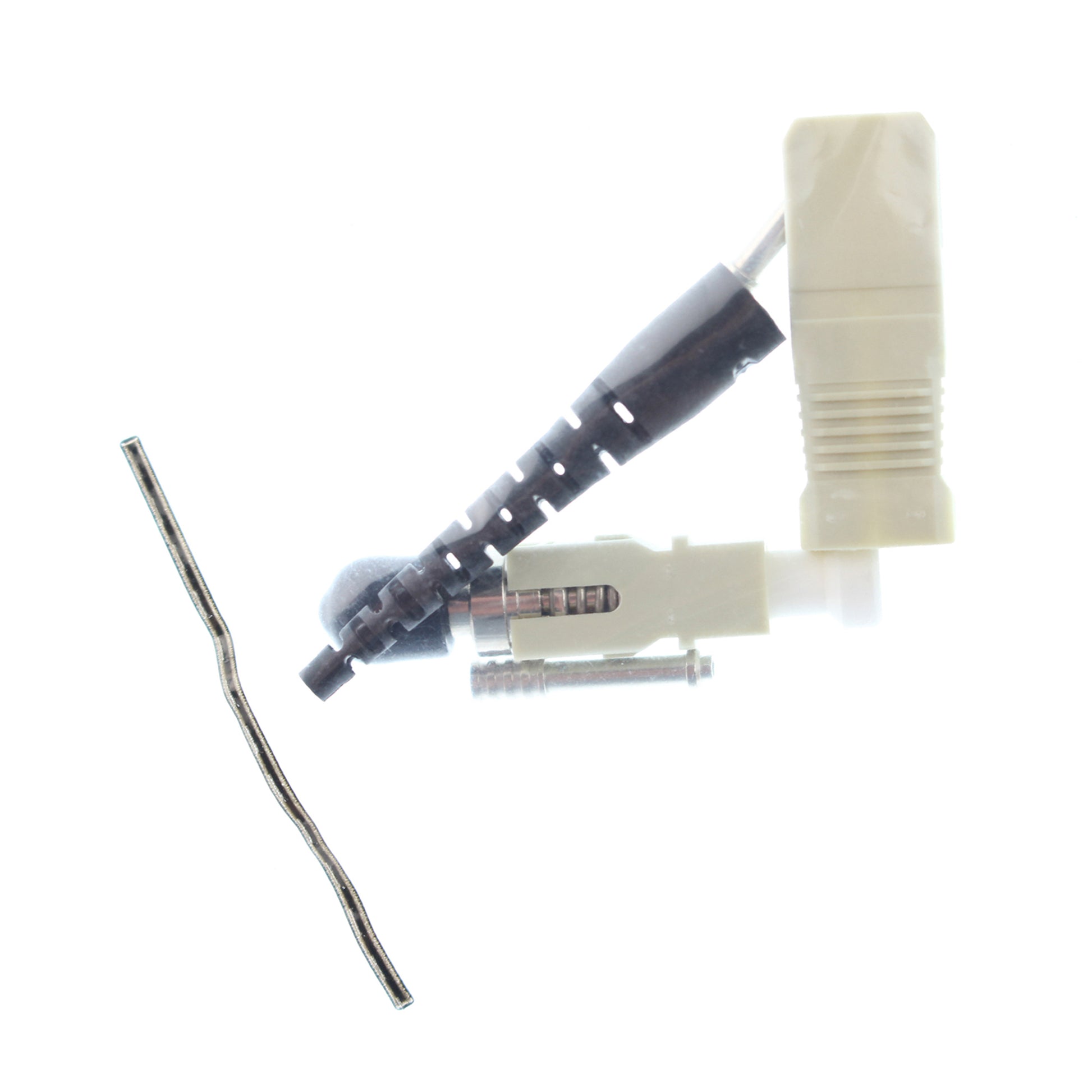

- Hubbell Premise 2Quick® SC Fiber optic connector features engineering thermoplastic construction and zirconia ceramic ferrule for durability. It accommodates multimode fiber type. It has maximum insertion loss of 0.75dB and typical loss of 0.5 dB. It has minimum return loss of 20 dB and fiber rimp retention of greater than 3 lb. Connector has mating durability of 500 cycles at less than 0.75 dB. It operates at temperature range of 0 to 75 deg C. Connector meets TIA/Telcordia GR-326-CORE standards.
MODEL NUMBER: FCSCMQ12R
PACKAGE QUANTITY: 12
DIMENSIONS: 1.50-Inches x 0.10-Inches x 0.10-Inches (Length Width Height)
AVAILABLE STOCK: 1
