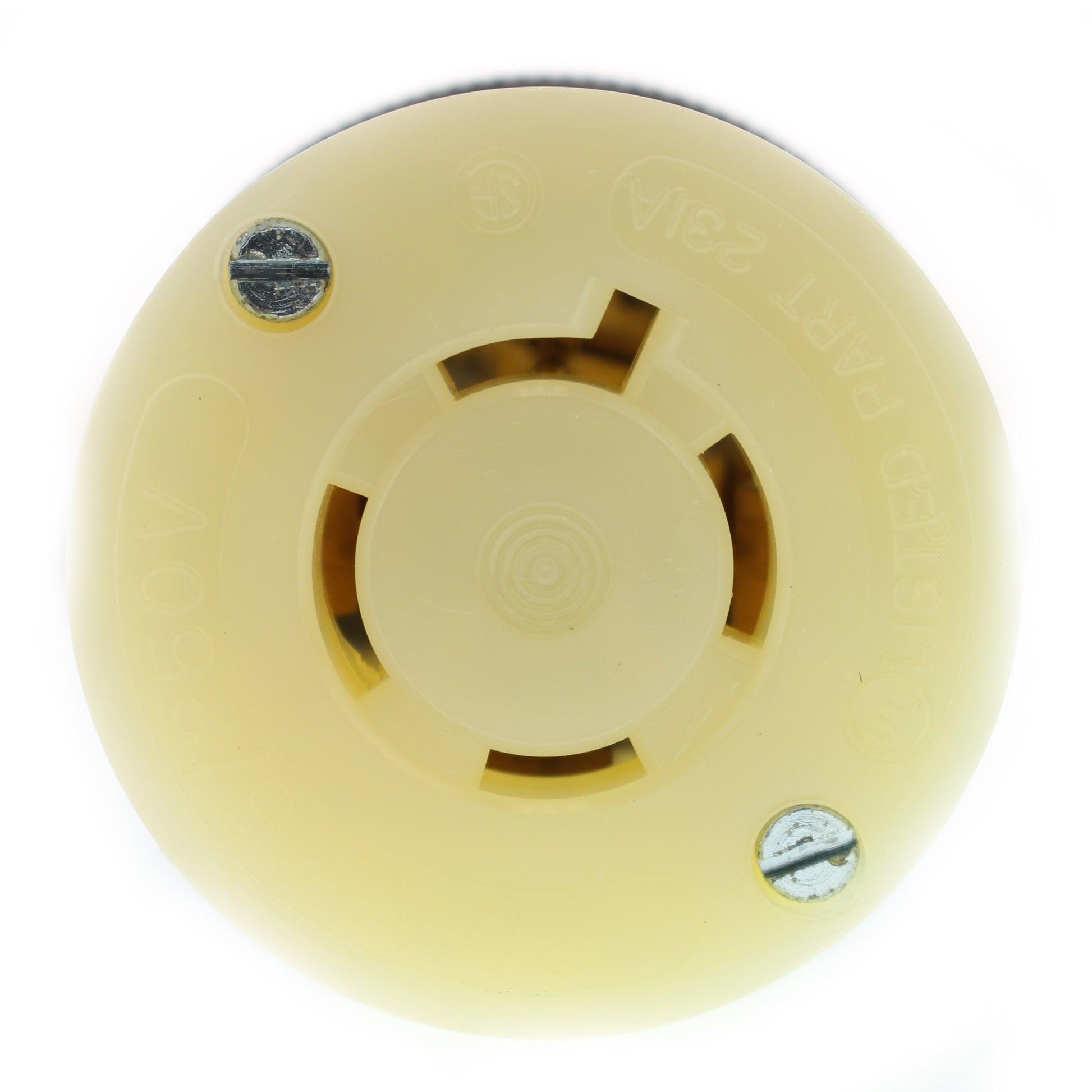

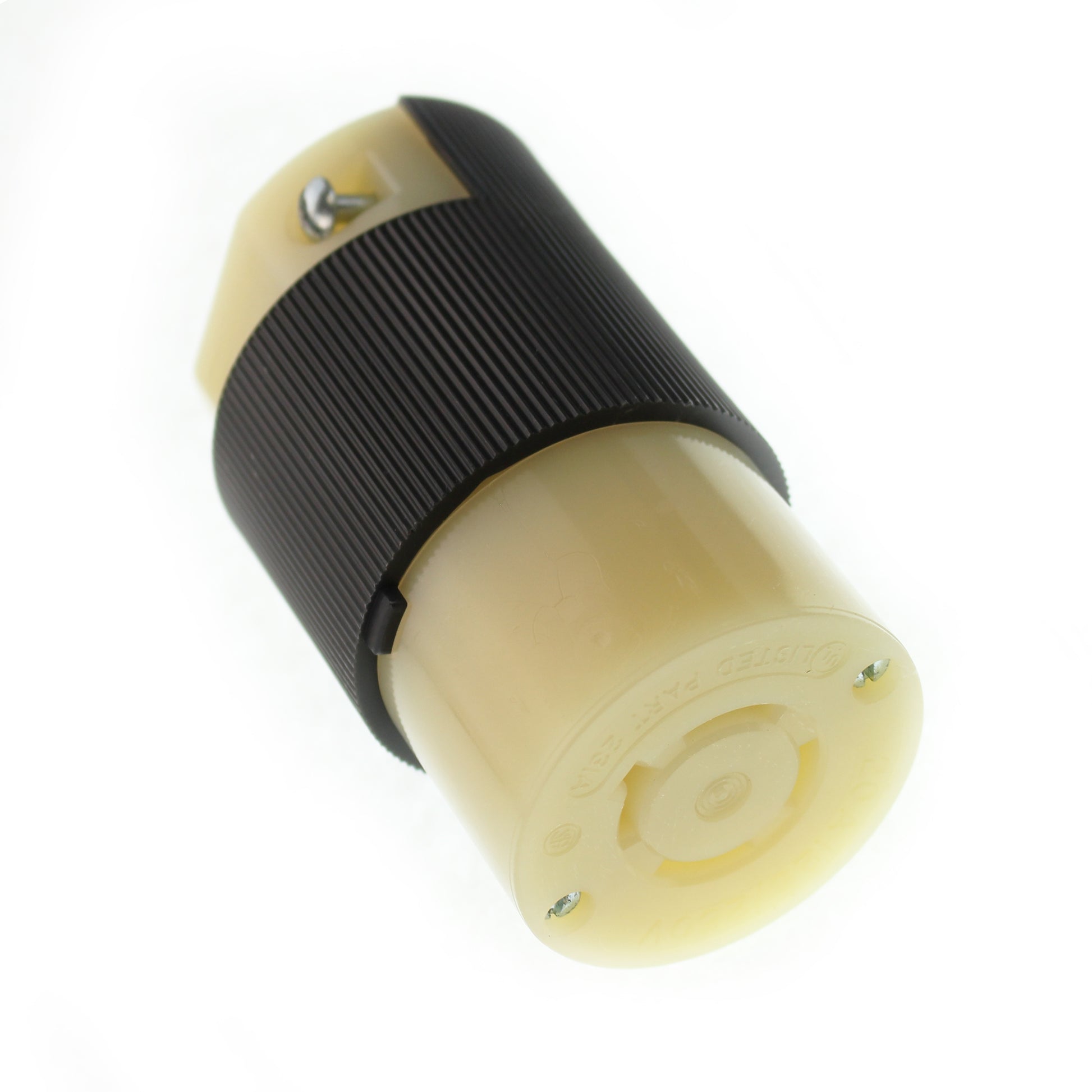

HUBBELL 2413 TWIST-LOCK CONNECTOR BODY, NEMA L14-20R, 20-AMP 125/250-VOLT

Hubbell Inc. - 2413
Condition: New


AVAILABLE STOCK: 357

  • $18.78
  • Save $14


    PRODUCT INFORMATION:

  • 20 Amp 125/250 Volt
  • 3 Pole 4 Wire, Grounding
  • Locking Connector Body
  • Industrial Grade NEMA L14-20R
  • Black, White

  • Hubbell HBL2413 Twist-Lock Connector BodyHubbell's Wiring Devices division offers a wide array of electrical and electronic wiring devices, wire management systems, occupancy sensors, lighting controls and specialized wiring products for the marine and healthcare markets.3P4W, 20A 125/250V, L14-20R, Black & White Nylon.Hubbell HBL2413 Twist-Lock Connector Body Features: Product Type: Twist-Lock Devices Product Item: Connector Body Wiring Scheme: 3 Pole, 4 Wire Grounding Amperage: 20A Voltage: 125/250V AC NEMA Configuration: L14-20R Item Style: Insulgrip Device Color: Black/White Cord Dia.: .35"-1.15" (9-29) Terminal Retainer Material: Clear polycarbonate Housing Material: Black nylon Cord Clamp Material: Natural (white) nylon Terminal Clamp Material: .08" (2) steel-nickel plated Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive Ground Screw Material: #10-32 Brass (green finish) Multi-drive Cord Clamp Screw Material: Steel, zinc plated Multi-drive Body Holding Screw Material: Steel, zinc plated Multi-drive Body Contact Carrier Material: Natural White Nylon Contact Spring Material: Brass Spring Binding Plate Material: Brass Ground Contact Material: .031" (.8) Brass Ratings: Molded into face. Catalog No.: Permanently ink marked on body. Dielectric Voltage Withstand: 2,000V minimum. Current Interrupting: Certified for current interrupting at full rated current. Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49. Terminal Accommodation: 20A #12 AWG Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6 Moisture Resistance: IP20 Listings: FED SPEC UL/CSA Feature Info: Black and white nylon.

      COLOR/FINISH: Black, White
      CONDITION: New
      MODEL NUMBER: 2413
      PACKAGE QUANTITY: 1
      POWER SPECS: 250-Volt 20-Amps
      DIMENSIONS: 4-Inches x 3-Inches x 3-Inches (Length Width Height)
      AVAILABLE STOCK: 357
