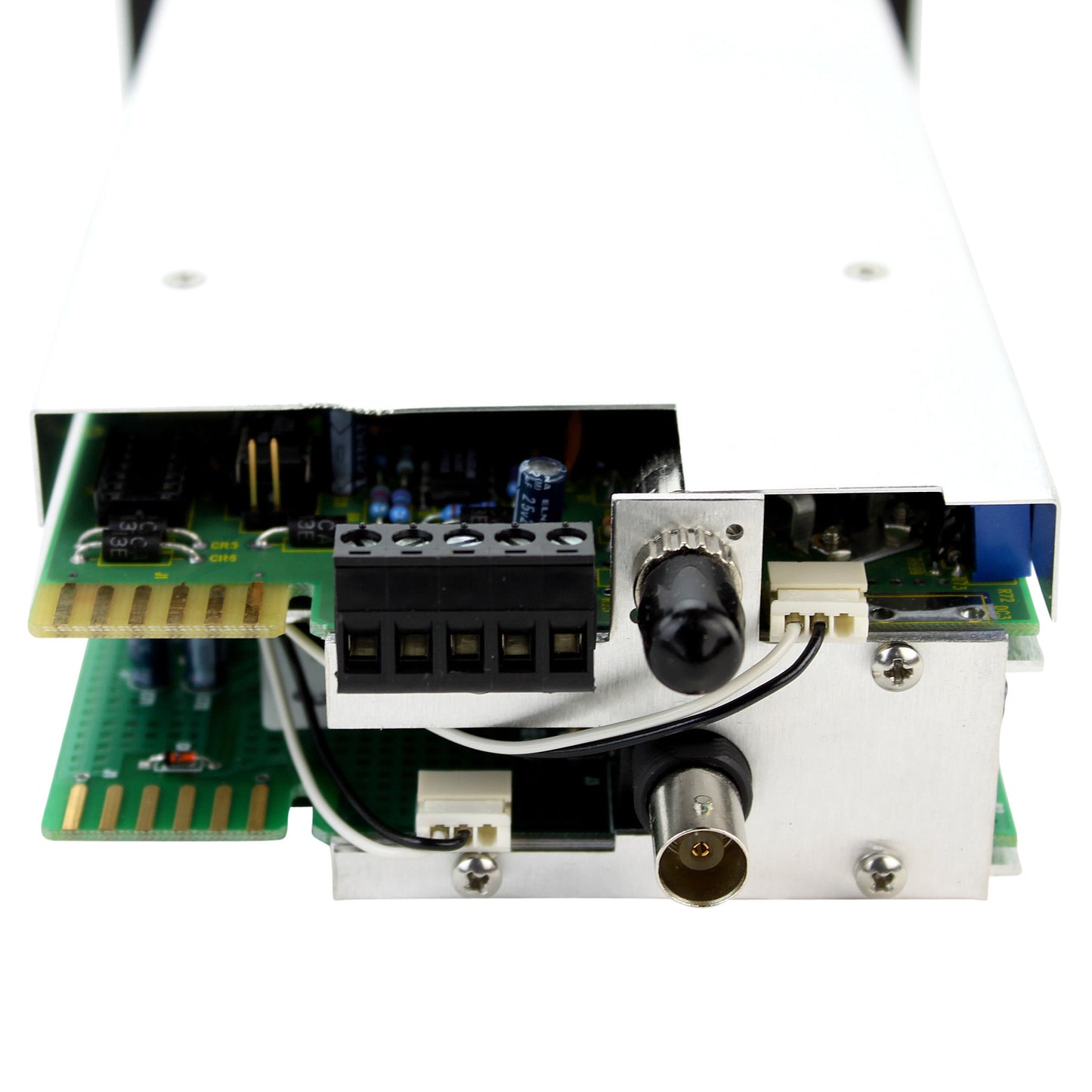

FIBER OPTIONS 2431-R-R-1BAA 243D SERIES VIDEO + TWO-WAY DATA RECEIVER
- One-Way Video and Two-Way Data Over One or Two Multimode Fibers.
- Level/Loss™ and Video Status diagnostic indicators.
- Operates Over Distances Up To 10,000 Feet.
- 8 MHz per channel.
- 12 VDC at 500 mA
- The Fiber Options Series 243D System supports high-quality, simultaneous transmission of video one-way and two-way transmission of control-data signals such as RS232, RS422, RS485, TTL, Manchester (or biphase), and relay/contact closure. These systems incorporate LED status indicators which greatly ease installation by pro v i ding a quick visual indication of system operation. Incorporating AGC circuitry, the systems require no field adjustments either at installation or periodically thereafter. These links may be ordered either as standalone units in a 502R Miniature Enclosure, or rack versions for mounting in Fiber Options' Series 515R Card Cage System or Series 517R Racking System, each unit occupying two rack slots.
MODEL NUMBER: 2431-R-R-1BAA
PACKAGE QUANTITY: 1
POWER SPECS: 12-Volt 0.5-Amps
DIMENSIONS: 5.3-Inches x 10-Inches x 2-Inches (Length Width Height)
AVAILABLE STOCK: 3
