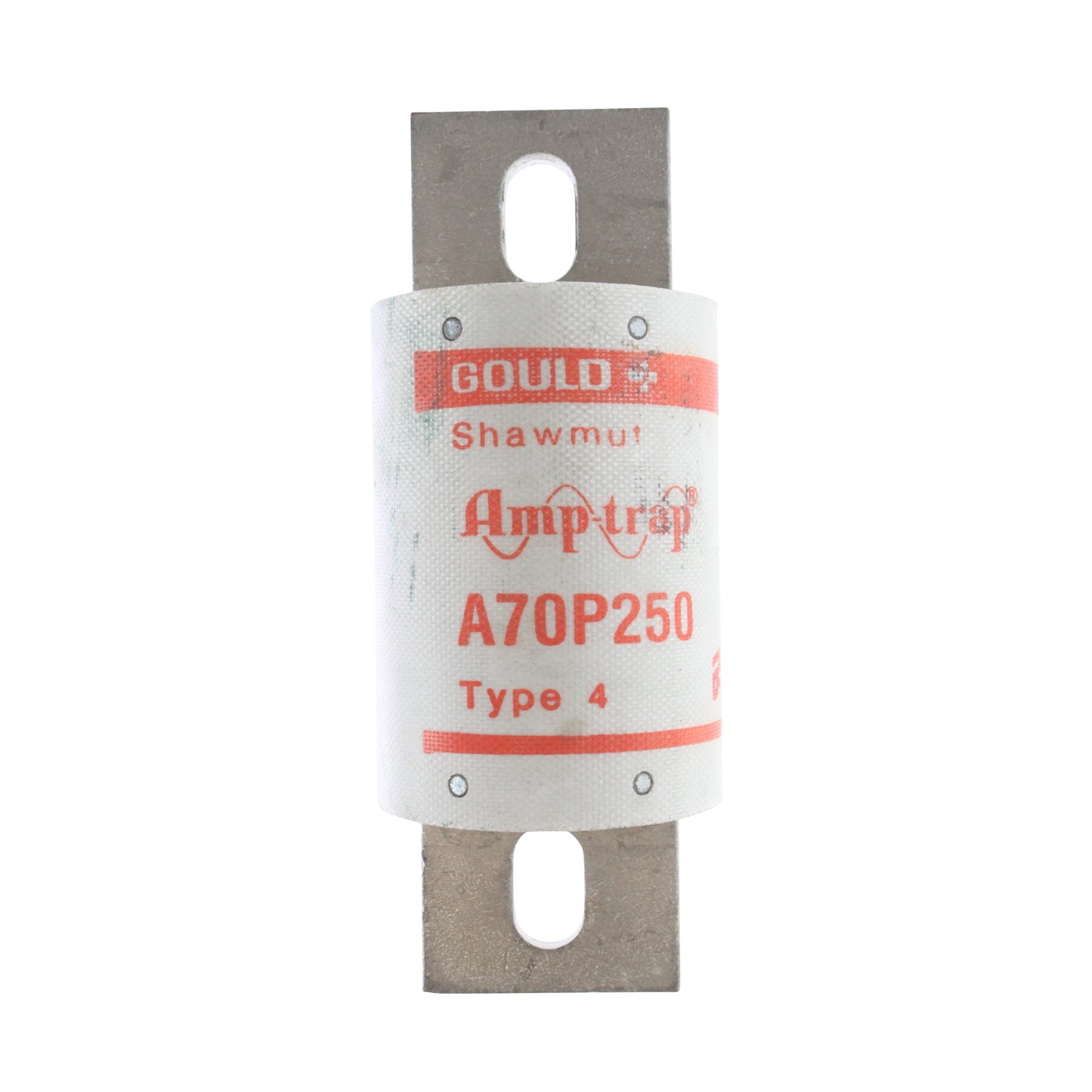

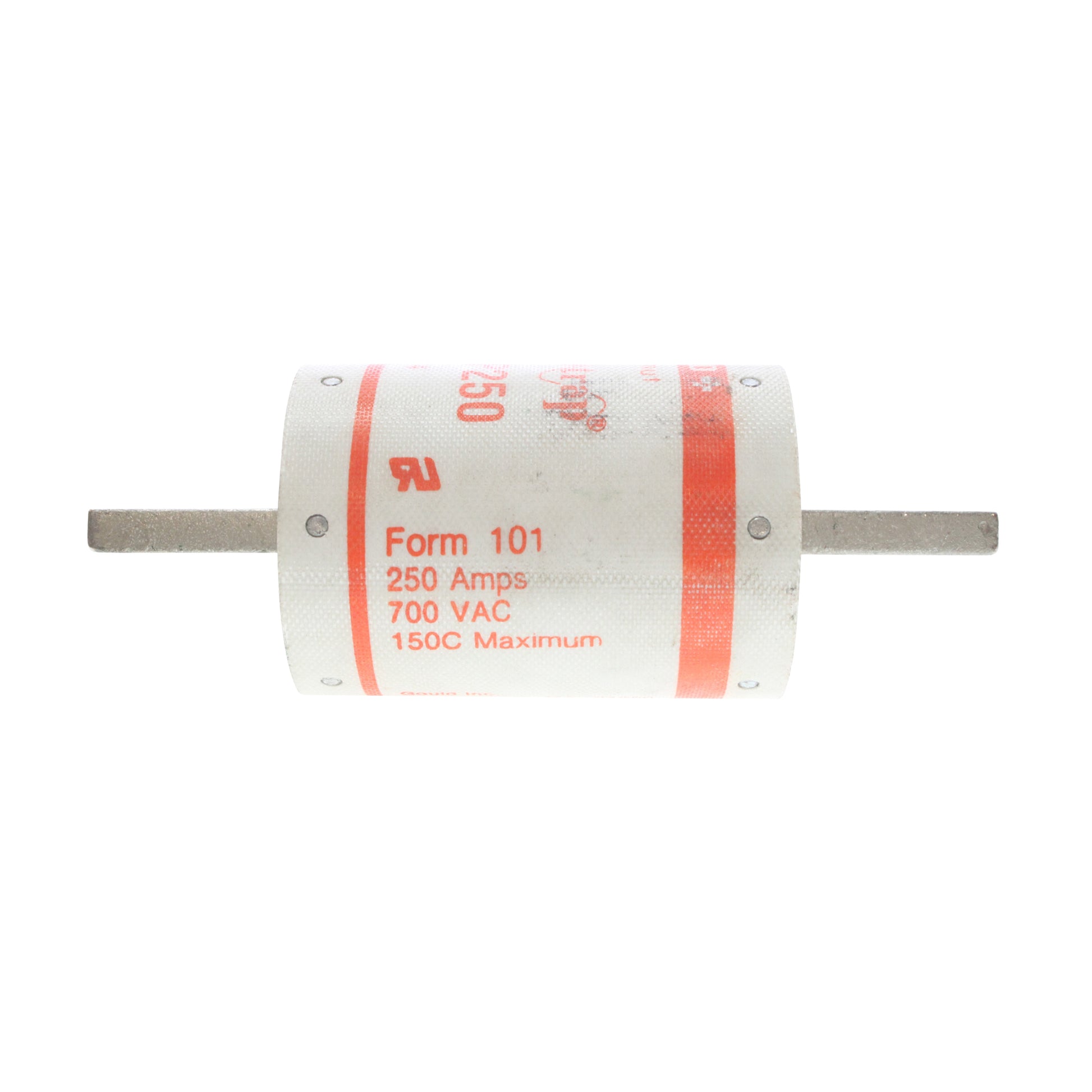

FERRAZ SHAWMUT A70P250 AMP-TRAP TYPE 4 FORM 101 SEMICONDUCTOR FUSE, 700V, 250A

Ferraz Shawmut - A70P250
Condition: New


AVAILABLE STOCK: 1

  • $117.70
  • Save $149

Only 1 left!

    PRODUCT INFORMATION:

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters
  • Blades and bolt-in mounting type
  • Measures 2-inches diameter by 5-3/32-inches length

  • Mersen Amp-Trap form 101 semiconductor protection fuse was developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l(2)t and superior reliability. Low I2t minimizes damage to protected components on short circuit. Controlled arc voltage reduces stress to circuit components during fuse clearing. Highlights: very fast acting, current limiting and low I2t. Applications: protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc. Volts rating: 700VAC/650VDC. Ampere rating: 250A. Integrated rating: 100kA AC/100kA DC. Blades and bolt-in mounting type. Measures 2-inches diameter by 5-3/32-inches length. UL recognized component UL file E60314; AC: guide no. JFHR2; DC: tested to UL standard 198L parameters.

      COLOR/FINISH: White
      CONDITION: New
      MODEL NUMBER: A70P250
      PACKAGE QUANTITY: 1
      POWER SPECS: 700-Volt 250-Amps
      DIMENSIONS: 2-Inches x 2-Inches x 5-Inches (Length Width Height)
      AVAILABLE STOCK: 1
