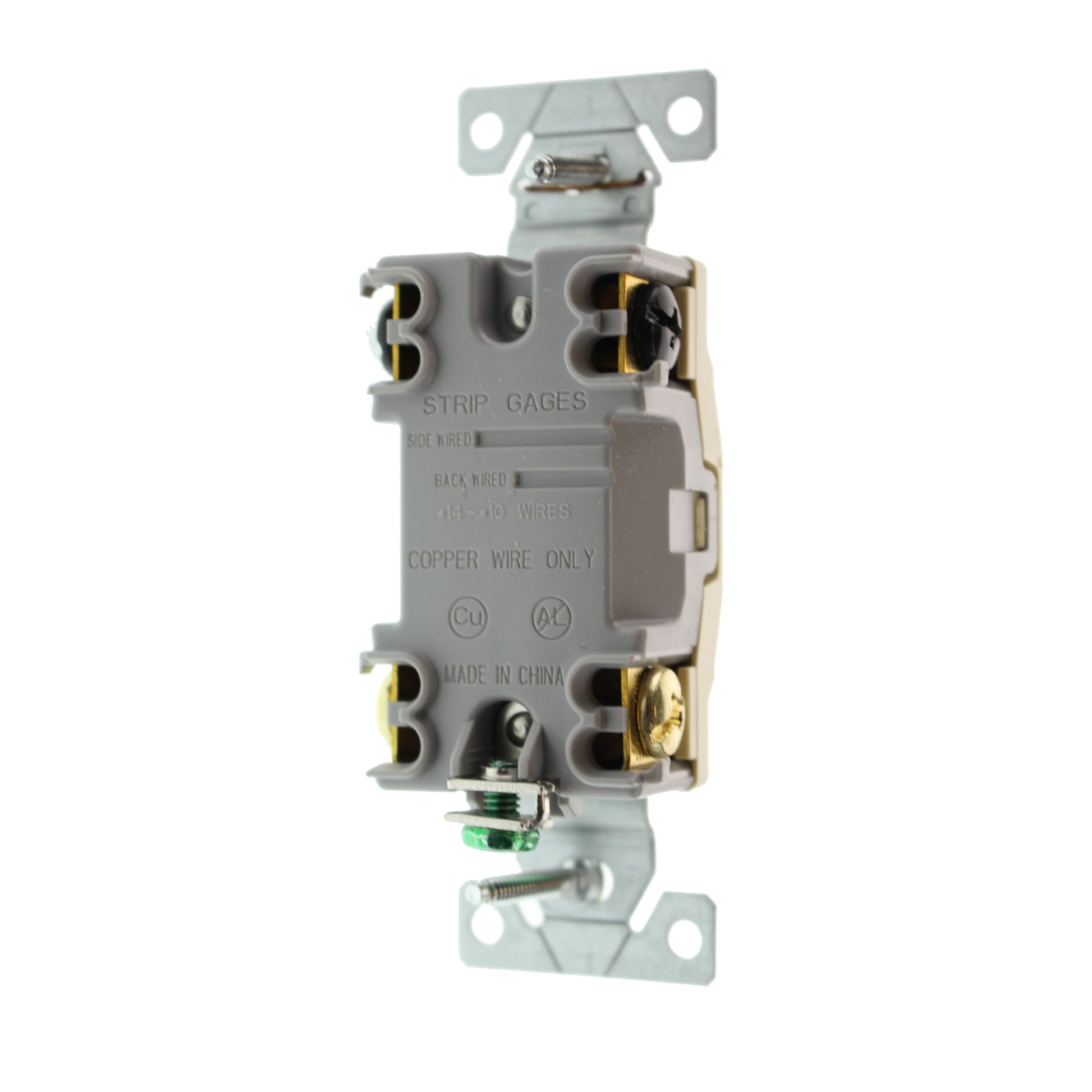

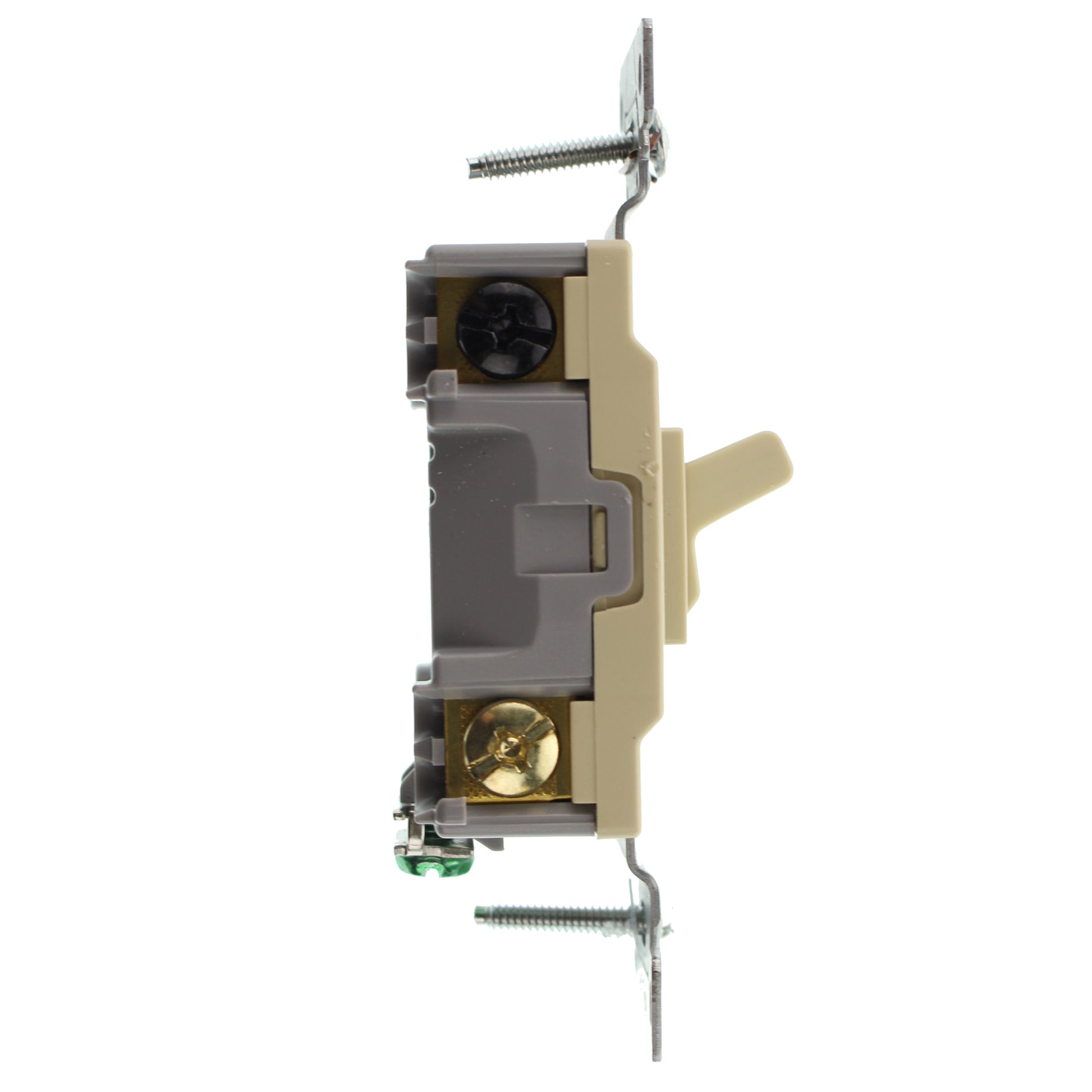

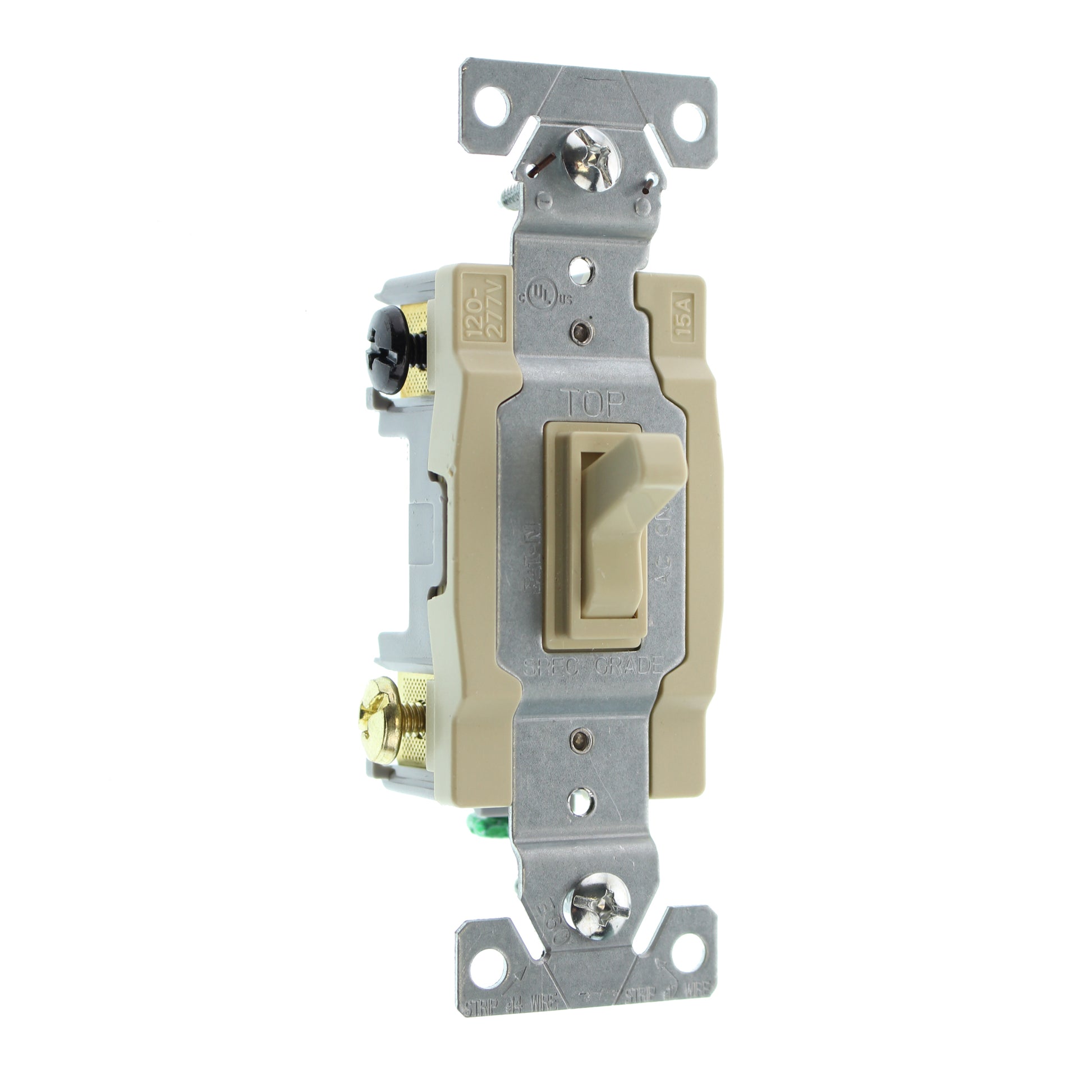

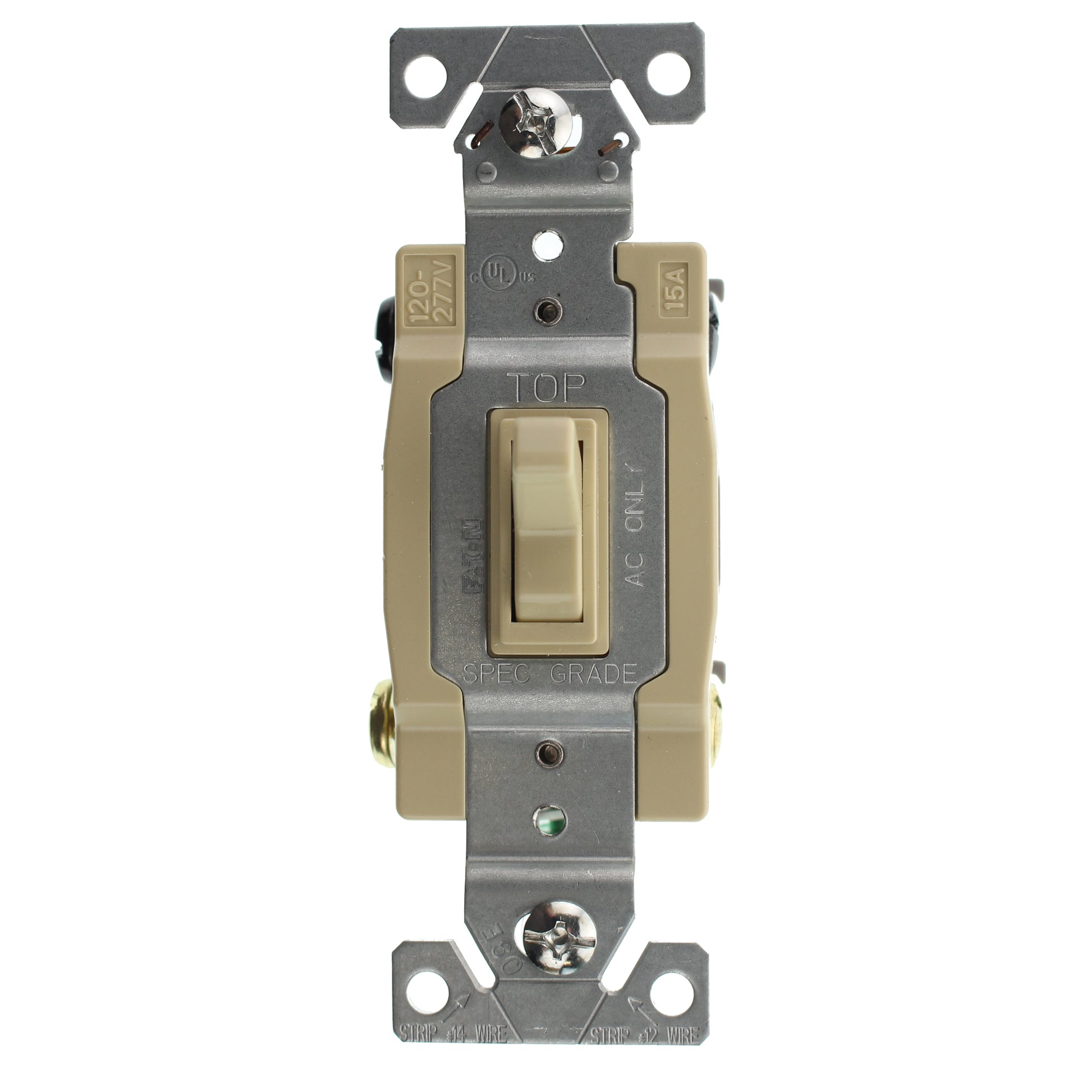

EATON COOPER 1242-7V-SPL1 SPEC GRADE TOGGLE SWITCH, 4-WAY, 15A, 120/277V, IVORY
- Standard grade 4-way framed toggle AC quiet switch
- Industrial design cam action mechanism insures quiet switch action
- The Eaton 1242-7V-BOX 15-Amp, 120-Volt Standard Grade 4-Way Framed Toggle AC Quiet Switch comes with longer, wider strap on toggle switches provides 40-percent more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for No.14 and No.12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job site breakage. Patented built-in wire looper for pre-looping. Three way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept No.14 solid wire only. Side wire terminals accept up to No.10 solid or stranded wire. 4-Way, side wire and push wire wiring method. NAFTA compliant. Available in ivory color. Measures 1-1/6-Inch length by 1-4/9-Inch width by 3-4/5-Inch height. Whether a home's style is traditional, modern, casual, cozy or rustic, it will demand more from wiring devices than in years past. Eaton is dedicated to providing the up-to-date wiring device solutions; solutions that increase energy efficiency, increase productivity, promote safety at work and in the home, and produce reliable performance. Eaton is a trusted name in electrical products for over 175-years.
MODEL NUMBER: 1242-7V-SPL1
PACKAGE QUANTITY: 1
POWER SPECS: 120-Volt 15-Amps
DIMENSIONS: 1.5-Inches x 1.5-Inches x 3.5-Inches (Length Width Height)
AVAILABLE STOCK: 90
