Cooper

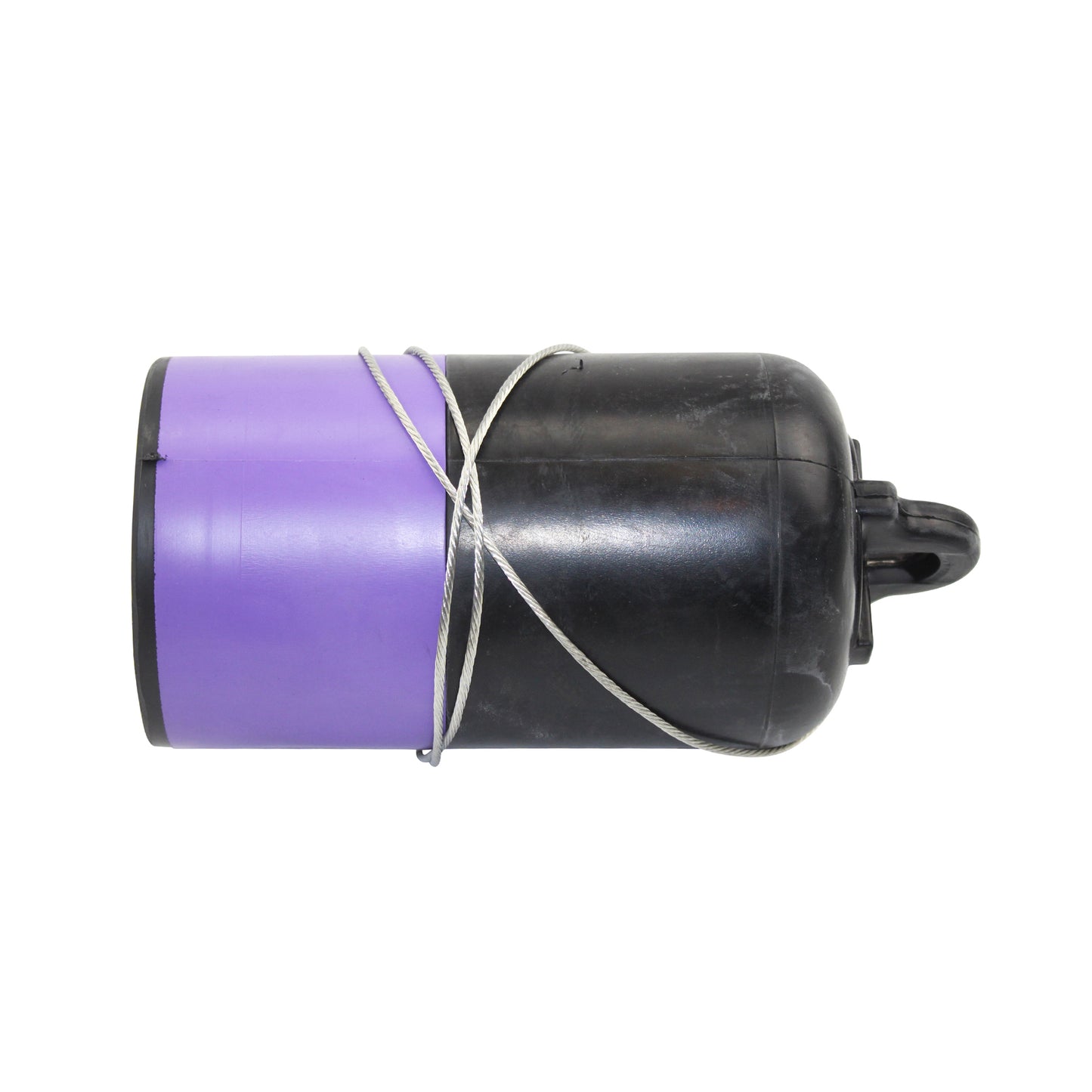

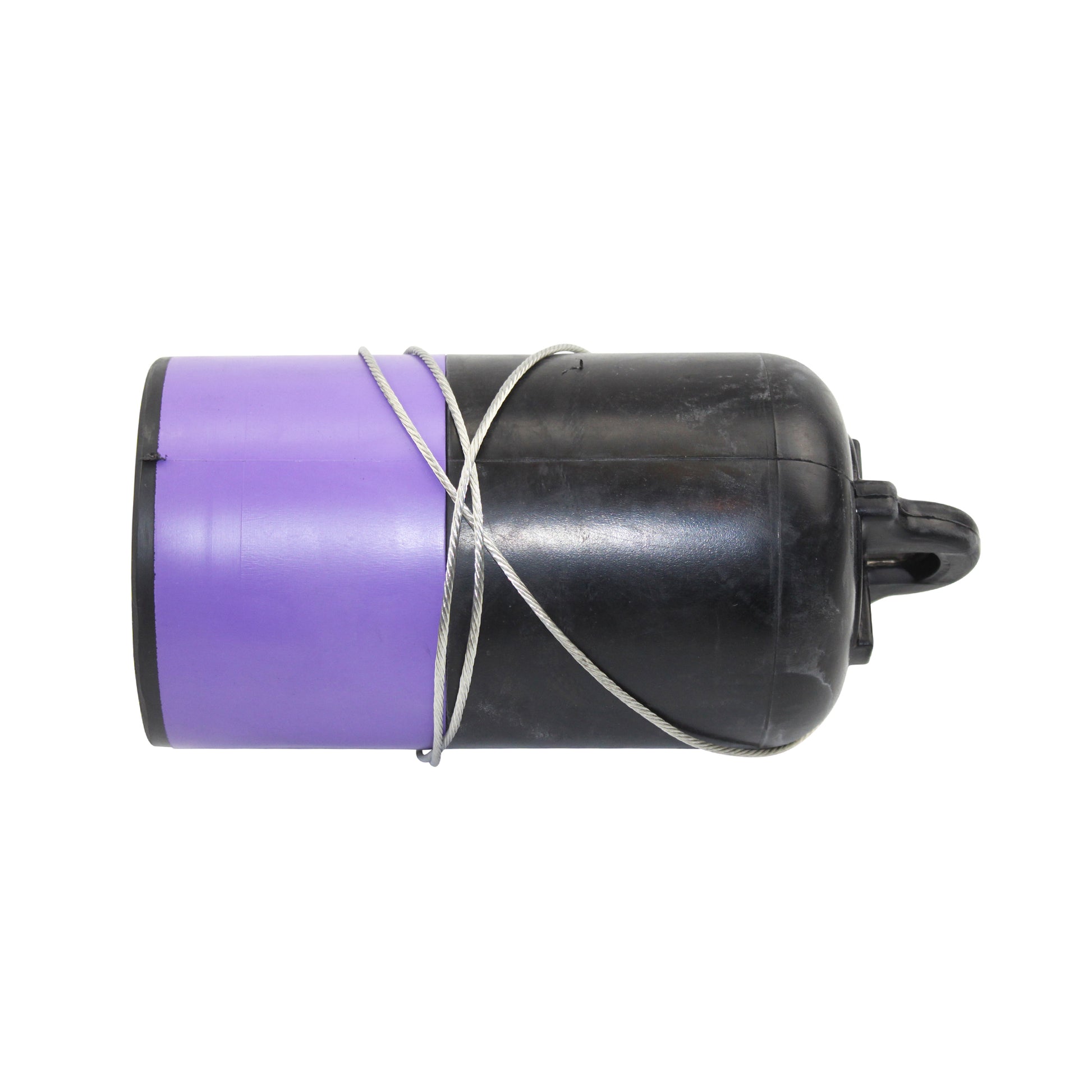

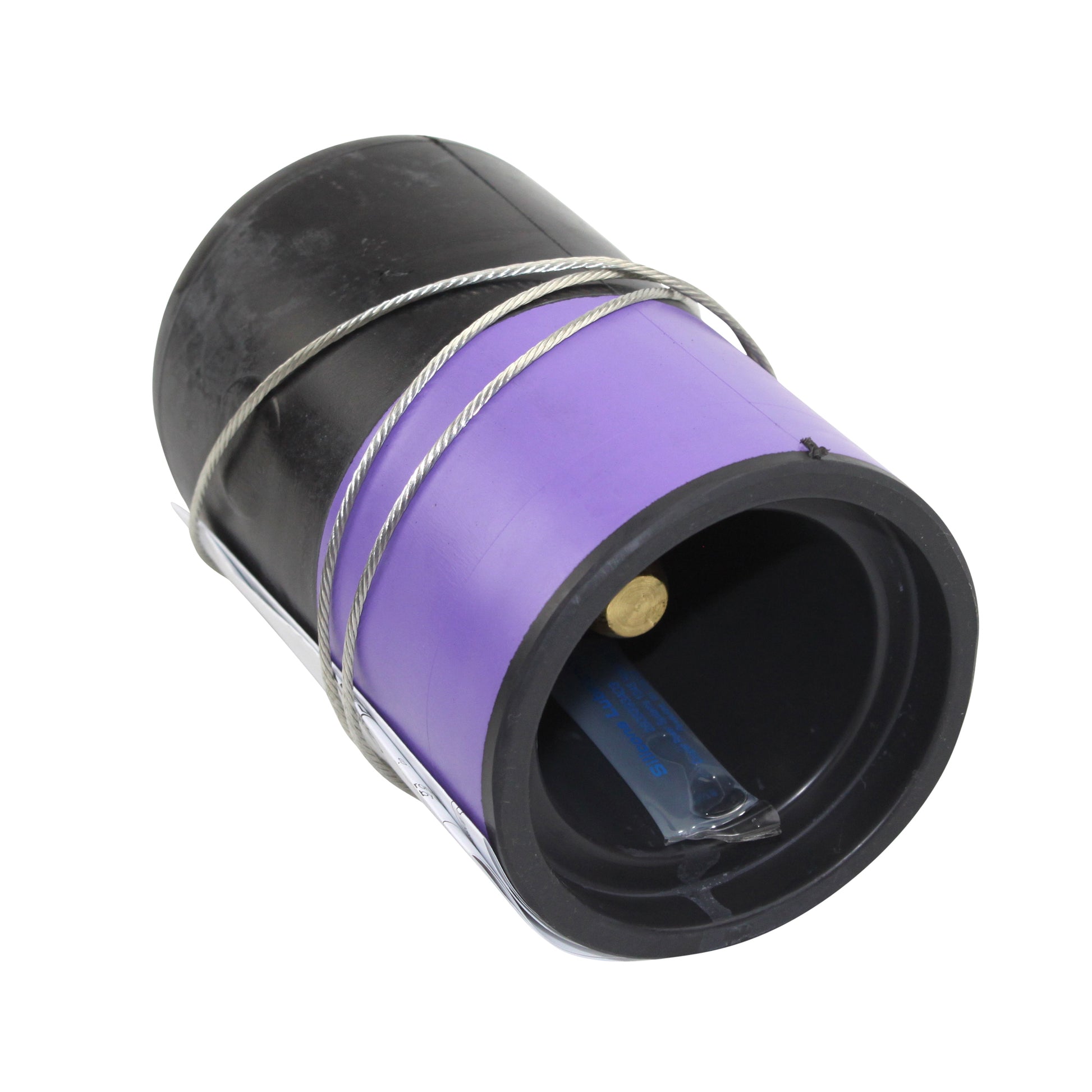

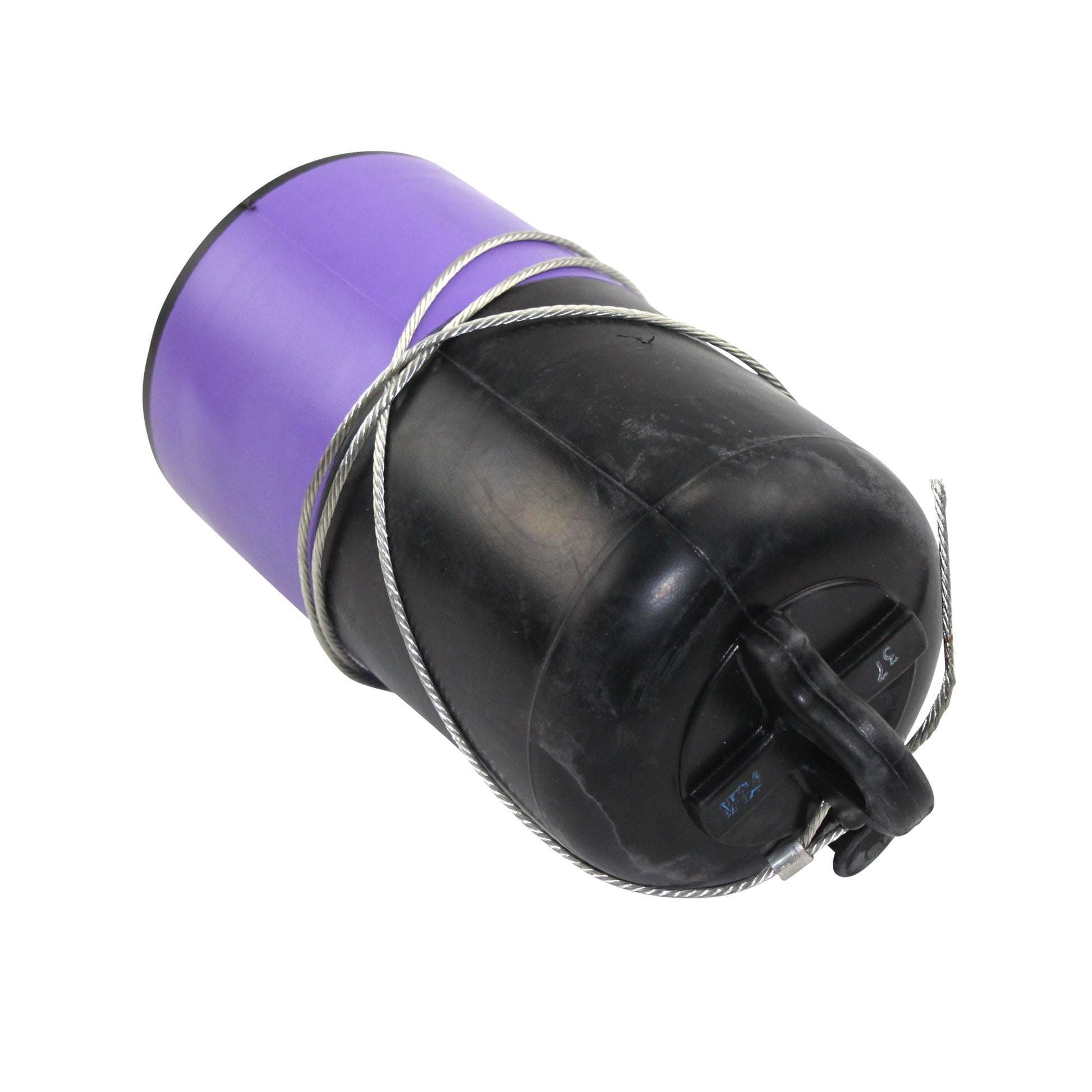

COOPER POWER SYSTEMS INSULATED PROTECTIVE CAP LPC235X 200 AMPS 35 KV
COOPER POWER SYSTEMS INSULATED PROTECTIVE CAP LPC235X 200 AMPS 35 KV
LPC235X
Regular price
$8499
Regular price
Unit price
/
per
$8499
$19600
Save $111.01
Request Special Pricing
Thank you for your message! We will get back to you as soon as possible.
Product information
The Cooper Power Systems 200 A, 35 kV Insulated Protective Cap meets the full requirements of IEEE Std 386™ standard - Separable Insulated Connector Systems, and provides an insulated, fully shielded submersible cover for an energized 35 kV Class loadbreak interface. The molded peroxide-cured EPDM semi-conductive shield maintains ground potential on the cap's surface when the drain wire is attached to a grounding lug. The protective cap is required for temporary or permanent installation on 21.1 kV and 21.1/36.6 kV loadbreak bushings, portable feedthru junctions, and other accessories having interfaces that conform to IEEE Std 386™ standard (200 A loadbreak interface No. 1, 21.1 kV and 21.1/36.6 kV).Features:
- The Cooper Power System
- 200 Amps 35 kV
- Insulated Protective Cap meets the full requirements of IEEE Std 386
- protective cap is required for temporary or permanent installation
- The Cooper Power Systems 200 A, 35 kV Insulated Protective Cap meets the full requirements of IEEE Std 386™ standard - Separable Insulated Connector Systems, and provides an insulated, fully shielded submersible cover for an energized 35 kV Class loadbreak interface. The molded peroxide-cured EPDM semi-conductive shield maintains ground potential on the cap's surface when the drain wire is attached to a grounding lug. The protective cap is required for temporary or permanent installation on 21.1 kV and 21.1/36.6 kV loadbreak bushings, portable feedthru junctions, and other accessories having interfaces that conform to IEEE Std 386™ standard (200 A loadbreak interface No. 1, 21.1 kV and 21.1/36.6 kV).
Color: Black
Condition: New
Dims: -Inches x -Inches x -Inches (Length Width Height)
Model: LPC235X
Package quantity: 1
