Bussman PVS-R-300
Bussman PVS-R-300
Bussman PVS-R-300
Bussman PVS-R-300

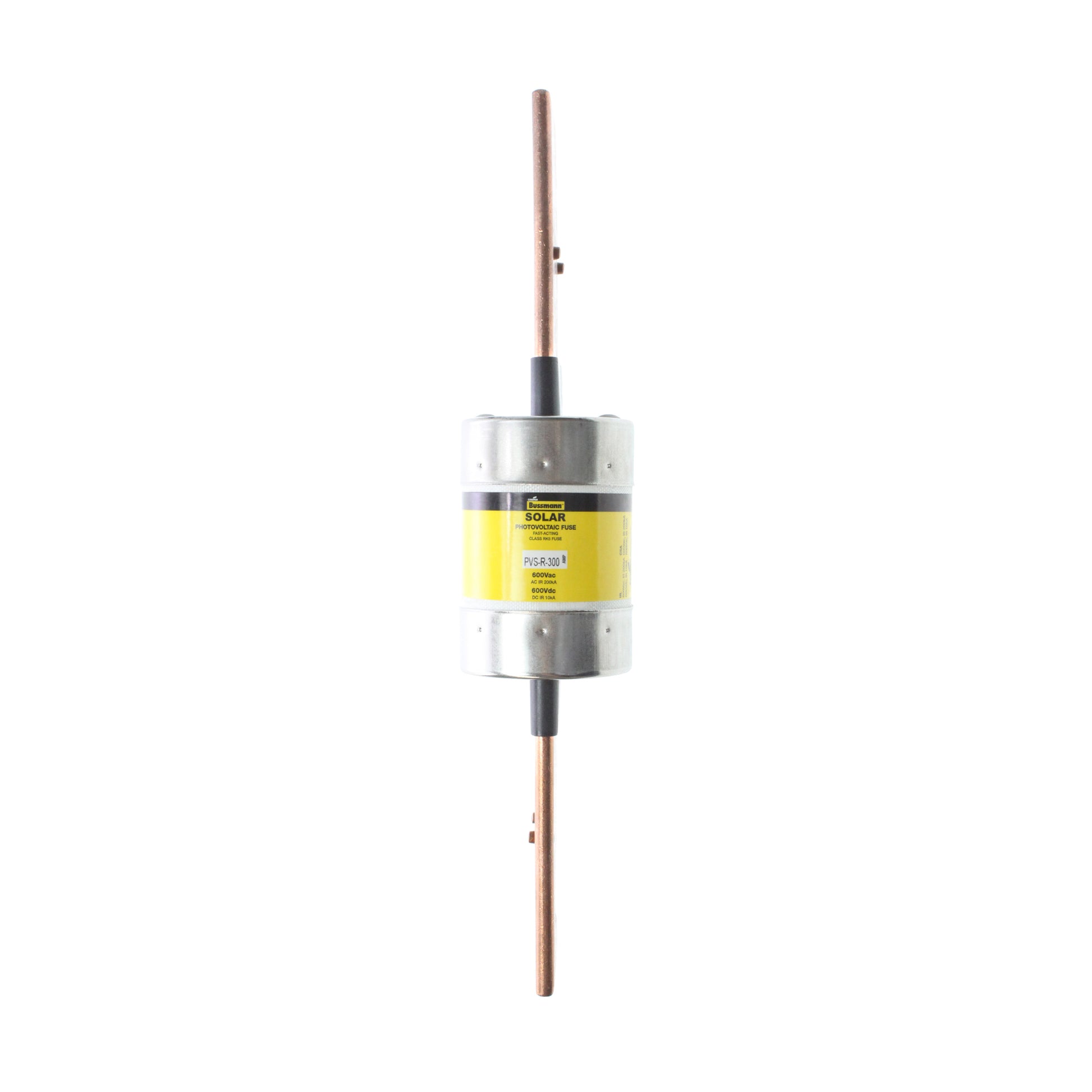

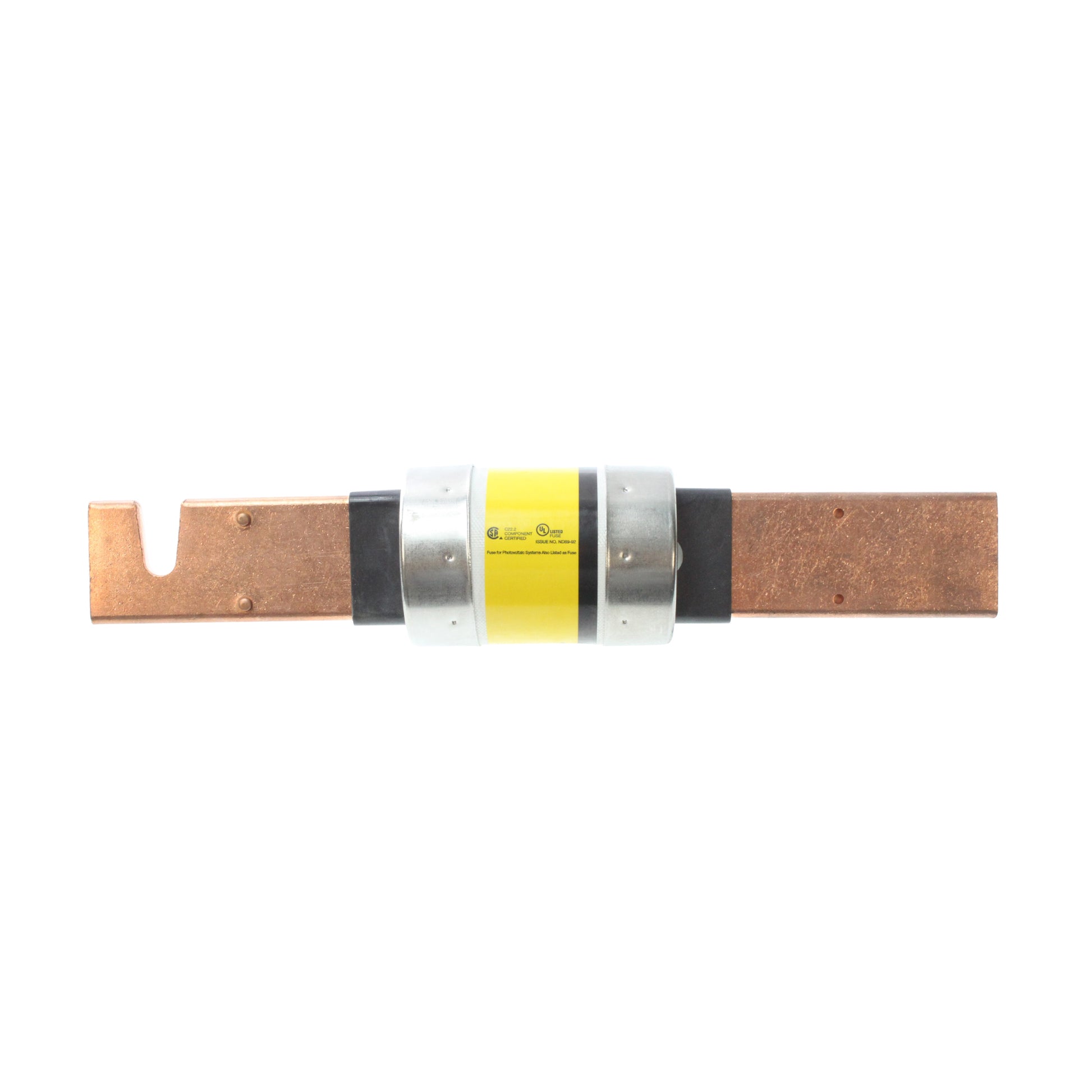

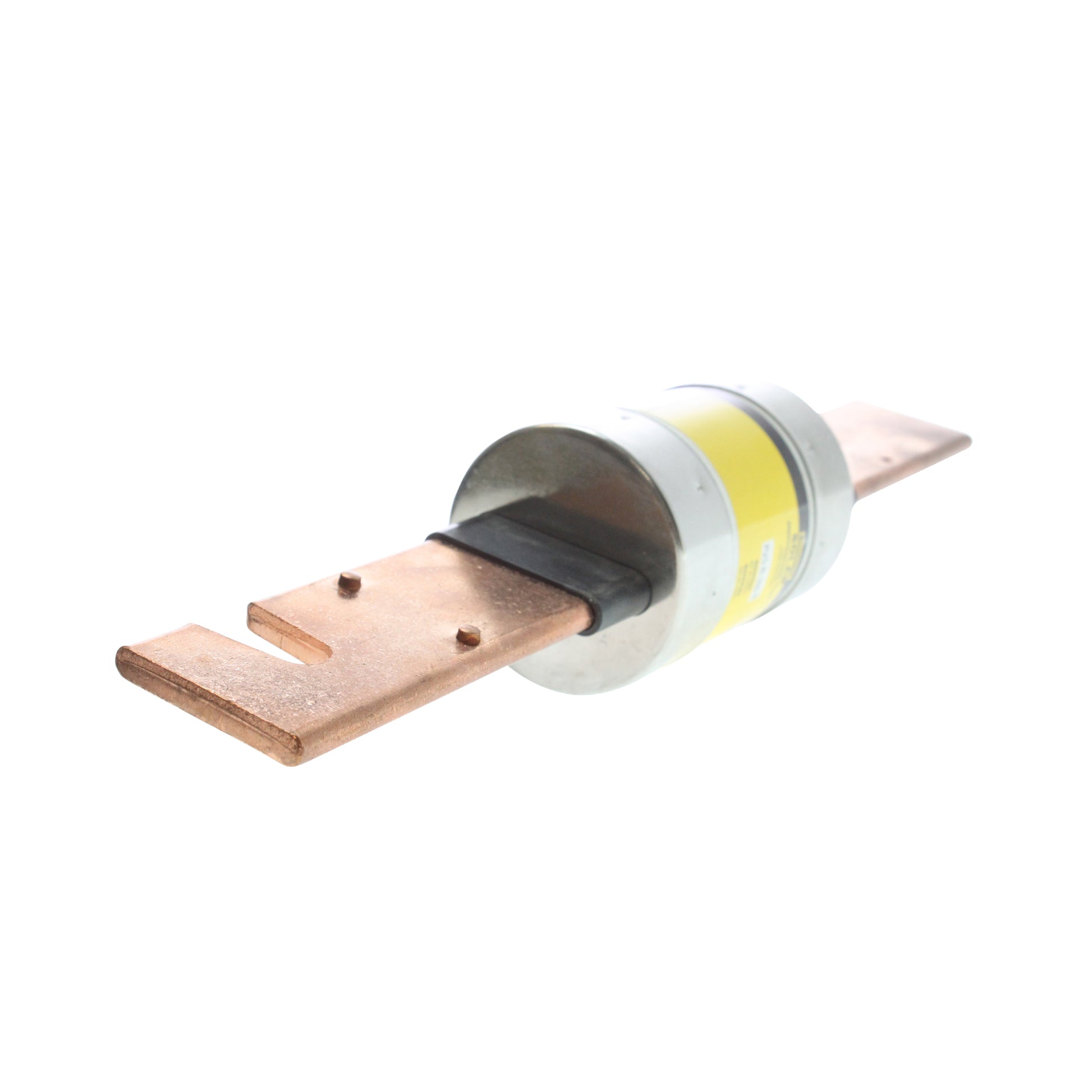

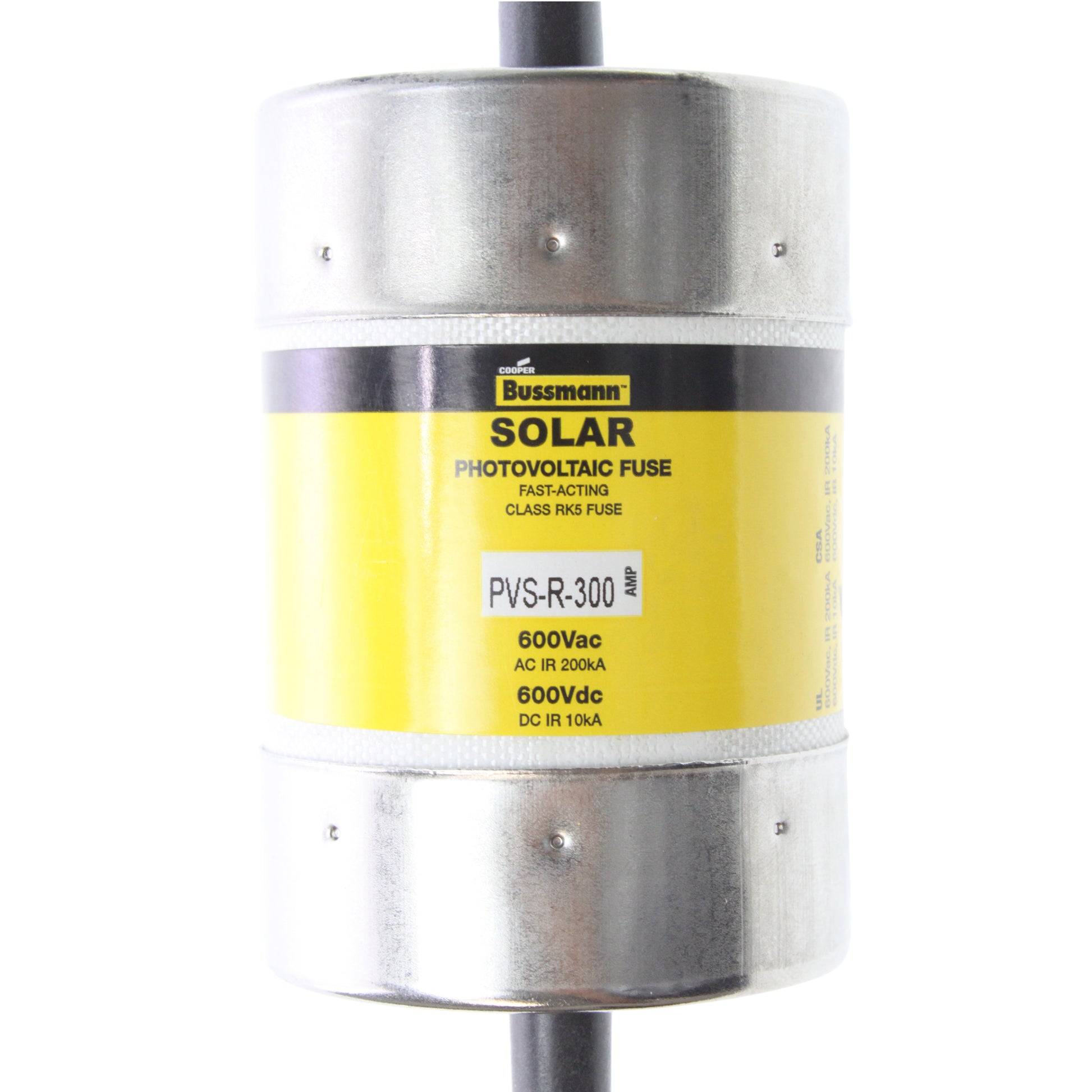

COOPER BUSSMANN PVS-R-300 FAST SOLAR PHOTOVOLTAIC CLASS RK5 FUSE 600V, 300A

Bussman - PVS-R-300
Condition: New


AVAILABLE STOCK: 1

  • Save $38
Only 1 left!

    PRODUCT INFORMATION:

  • Photovoltaic Fuse
  • Fast-Acting
  • Class RK5 Fuse
  • 600Vac

  • This fast-acting photovoltaic fuse protects in lower-level overload regions. It performs well in extreme temperatures and in constantly changing PV environmental conditions. It's compatible with industry standard Class R fuse blocks and disconnects. Temp. range: -40° to 90°C. This listing is for each. Technical Specification Item Solar Fuse Fuse Amps 300A Indicating / Nonindicating Nonindicating Series PVS-R Fuse Voltage Rating 600VAC/DC Fuse Speed Fast Acting Element Single Class RK5 Body Material Fiberglass Rejection / Nonrejection Rejection Body Style Cylindrical Fuse Interrupt Rating 200kA at 600VAC, 10kA at 600VDC Length 11-5/8 Diameter 2-3/8 Standards UL Std. 248-12, Class RK5, UL Listed, Guide JFGA, File E335324, Photovoltaic to UL 2579, CSA Component Certified C22.2

      COLOR/FINISH: Yellow
      CONDITION: New
      MODEL NUMBER: PVS-R-300
      PACKAGE QUANTITY: 1
      POWER SPECS: 600-Volt 300-Amps
      DIMENSIONS: 2-Inches x 2-Inches x 11.5-Inches (Length Width Height)
      AVAILABLE STOCK: 1
