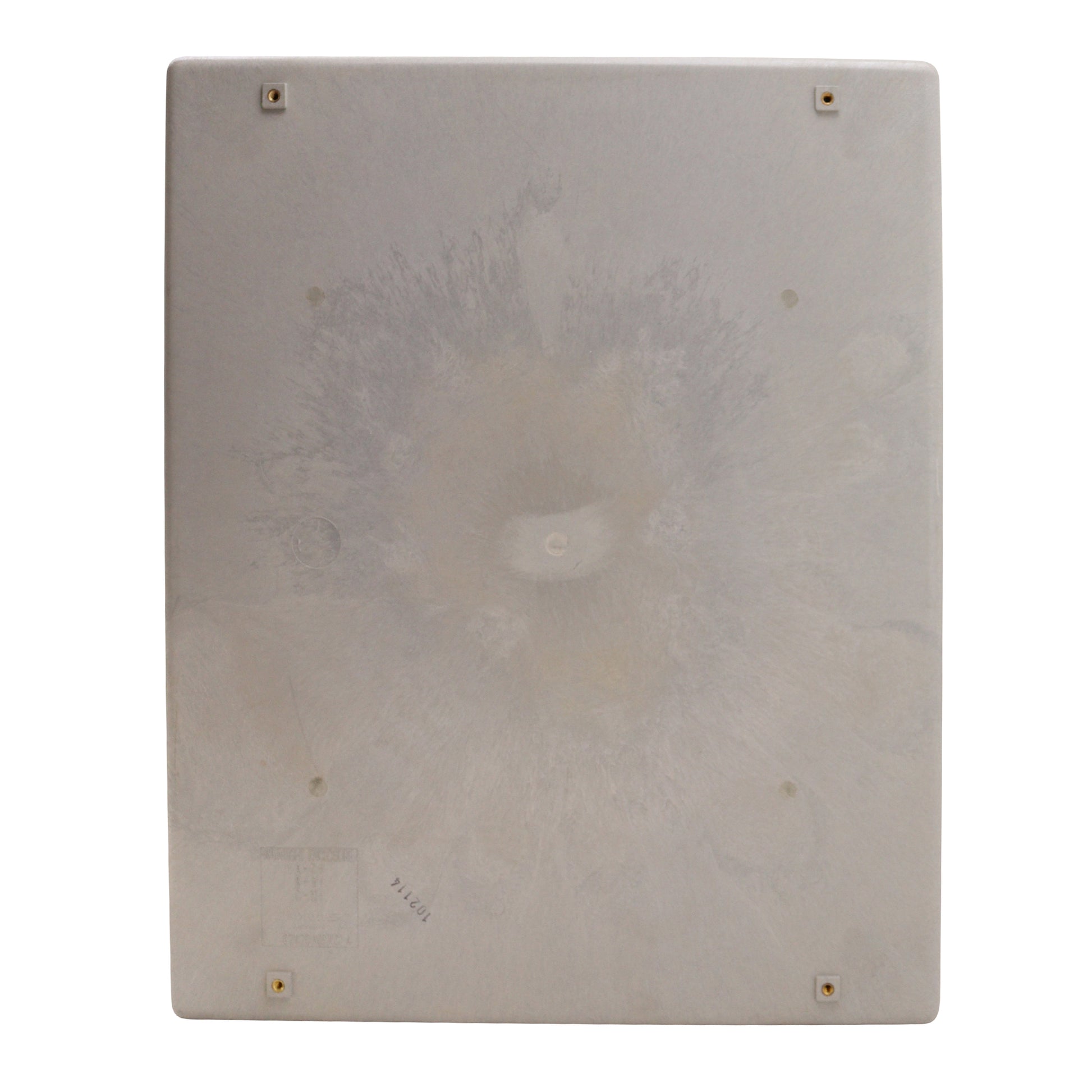

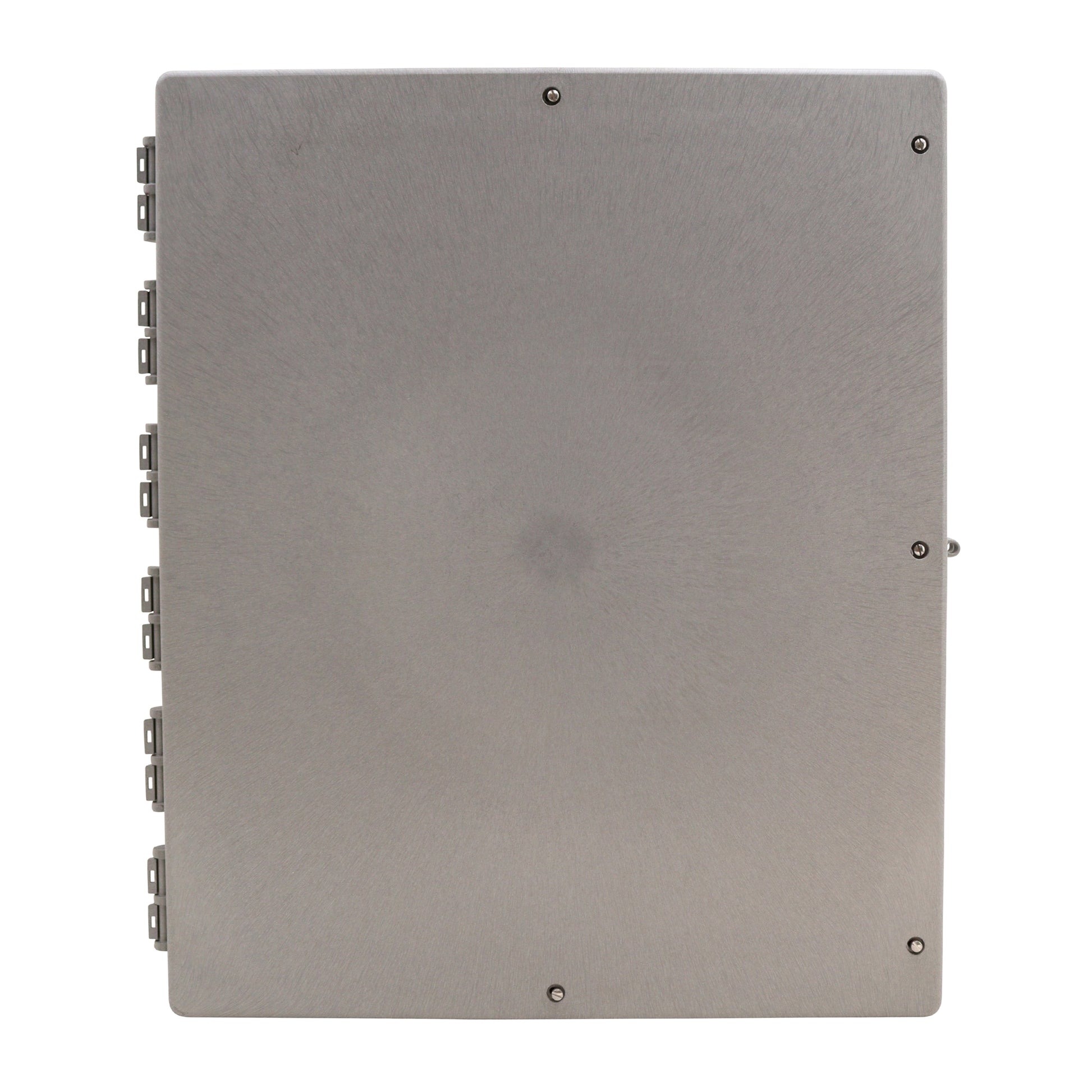

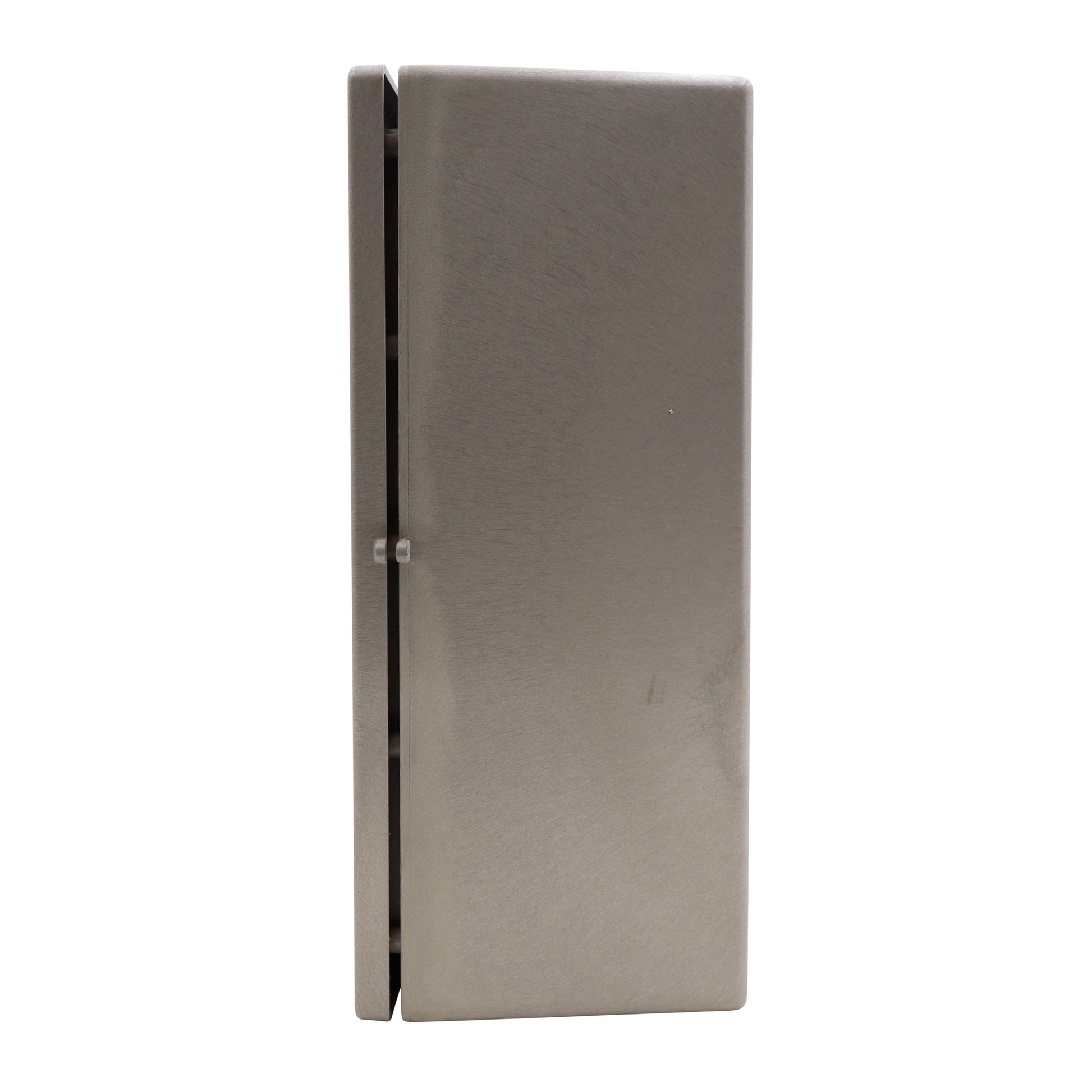

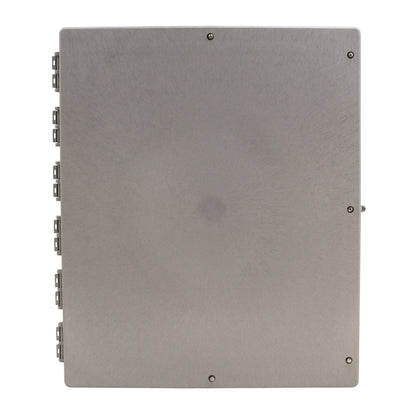

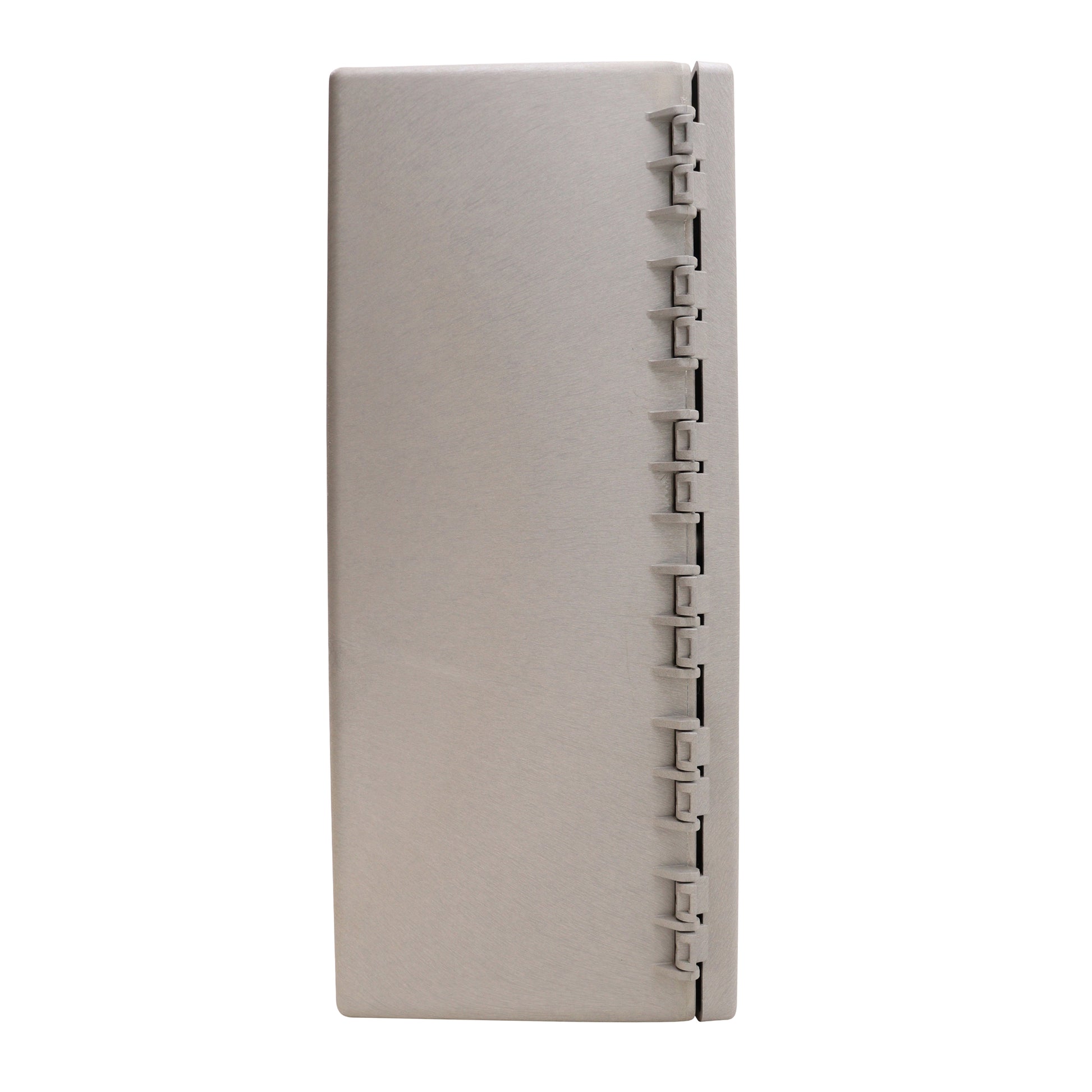

CARLON C2420B4 CIRCUIT SAFE NEMA-12 MARINE GRADE ENCLOSURE 24X20X10"

Features:

• Marine Grade Thermoplastic Construction, Hinged Screw Cover

• External Dimensions: 24.50" x 20.50" x 10.36"

• NEMA 1/3/3S/4/4X/12/13

• Wall Mount General Purpose Enclosure

• CSA, CUL, UL Listed


• One Door Type; Molded Thermoplastic Material; 20.5 Inch; 24.5 Inch; UL (Canada and Us), CSA Approval; Feet Mounting; NEMA 1/2/3/3S/4/4X/12/13 Enclosure; Hinged, Screw-on Cover Type; Indoor/Outdoor Service Type; NP2420, NP2420P Back Panel; Application Instrument Case, Junction and Terminal Boxes, Control and Switching Enclosures, Splice and Pull Boxes, Starter, Pushbutton and Transformer Housings, Meter and Transformer Cabinets; Depth With Cover 10.36 Inch; Includes Brass Screw Insert; Back , 1/4 Inch PVC (NP2420P); Panel Size 17 Inch W X 21 Inch H; Temperature Rating -40 to 185 Deg F. JIC ENCLOSURE ASSEMBLY WITH MEDIUM HINGED OPAQUE COVER, INTERNAL DIMENSIONS LENGTH 21.25 INCHES, WIDTH 17.25 INCHES, DEPTH 8.28 INCHES, EXTERNAL DIMENSIONS LENGTH 24.50 INCHES, WIDTH 20.50 INCHES, DEPTH 10.36 INCHES

Color: Gray

Condition: New

Dims: 21.50-Inches x 24.00-Inches x 10.00-Inches (Length Width Height)

Model: C2420B4

Package quantity: 1
