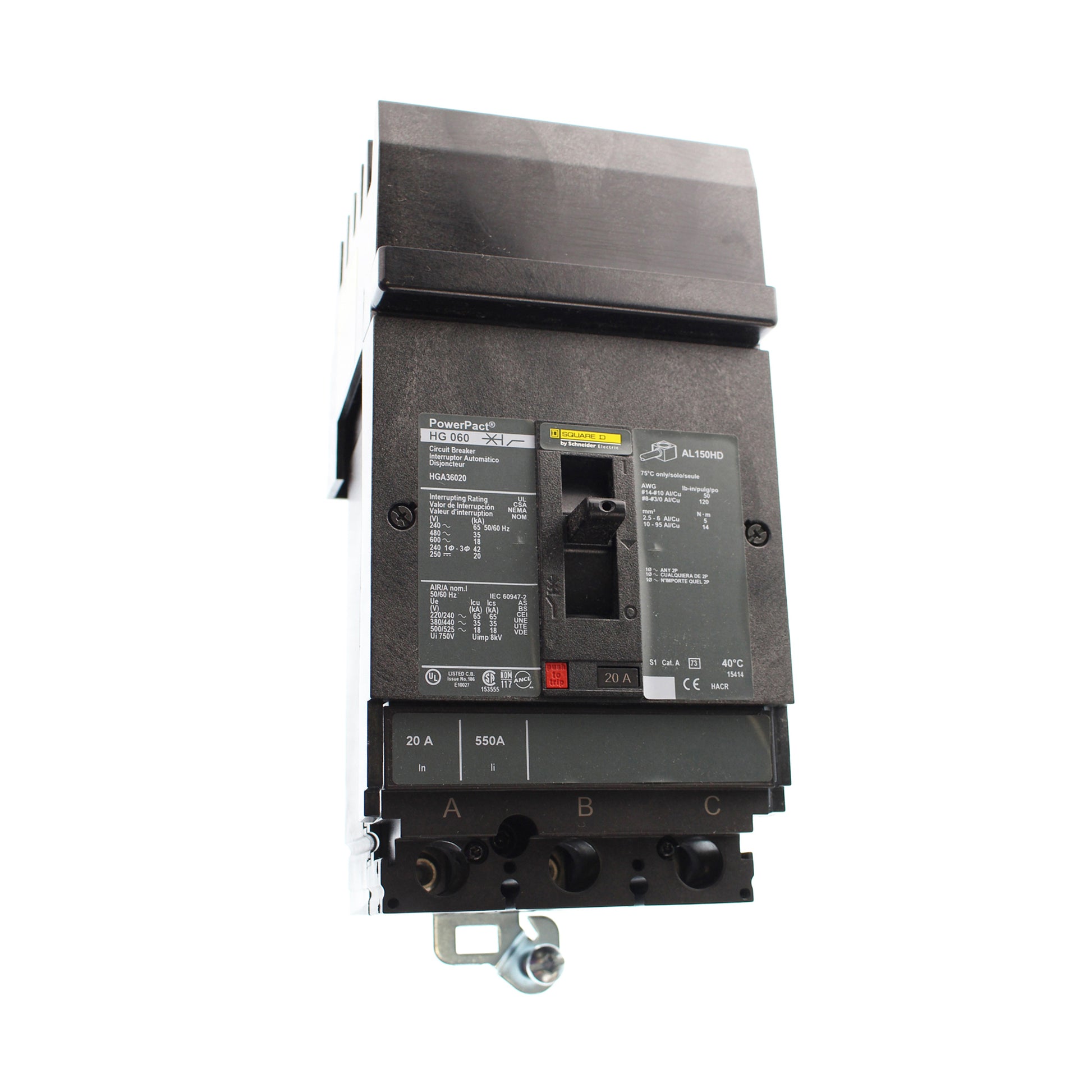

SQUARE D HGA36020 POWERPACT CIRCUIT BREAKER, 600-VOLT, 3-POLE, 20-AMP, 18KAIC

Features:

• Dimension: 4.120 Inch Width x 3.440 Inch Depth x 6.400 Inch Height

• PowerPact Molded Case Circuit Breaker

• 20 Amps

• 600 Volt AC

• 3-Pole, 20-Amps, 600-Volts


• Schneider Electric/Square D PowerPact® HGA 3-Pole Molded case circuit breaker has H-frame. It provides thermal magnetic protection and has I-line style plug-in type connection. It has a trip rating of 350 - 750 Amps. It has a current rating of 20 Amps, voltage rating of 600 VAC, 250 VDC. It provides protection from overloading and short circuit. ABC-Phase circuit breaker has interrupting rate of 18 kilo-Amps at 600 VAC, 20 kilo-Amps at 250 VDC. It can accommodate aluminum/copper wires of size 14 - 3/0 AWG and has line/load side lug for convenient connection. It measures 4.120 Inch x 3.440 Inch x 6.400 Inch. Circuit breaker is UL listed/CSA certified/IEC rated and meets NOM/Fed. Specs W-C-375B/GEN standards.

Color: Black

Condition: New

Dims: 10-Inches x 4.5-Inches x 4.6-Inches (Length Width Height)

Model: HGA36020

Package quantity: 1

VWA: 600-Volt 20-Amps
