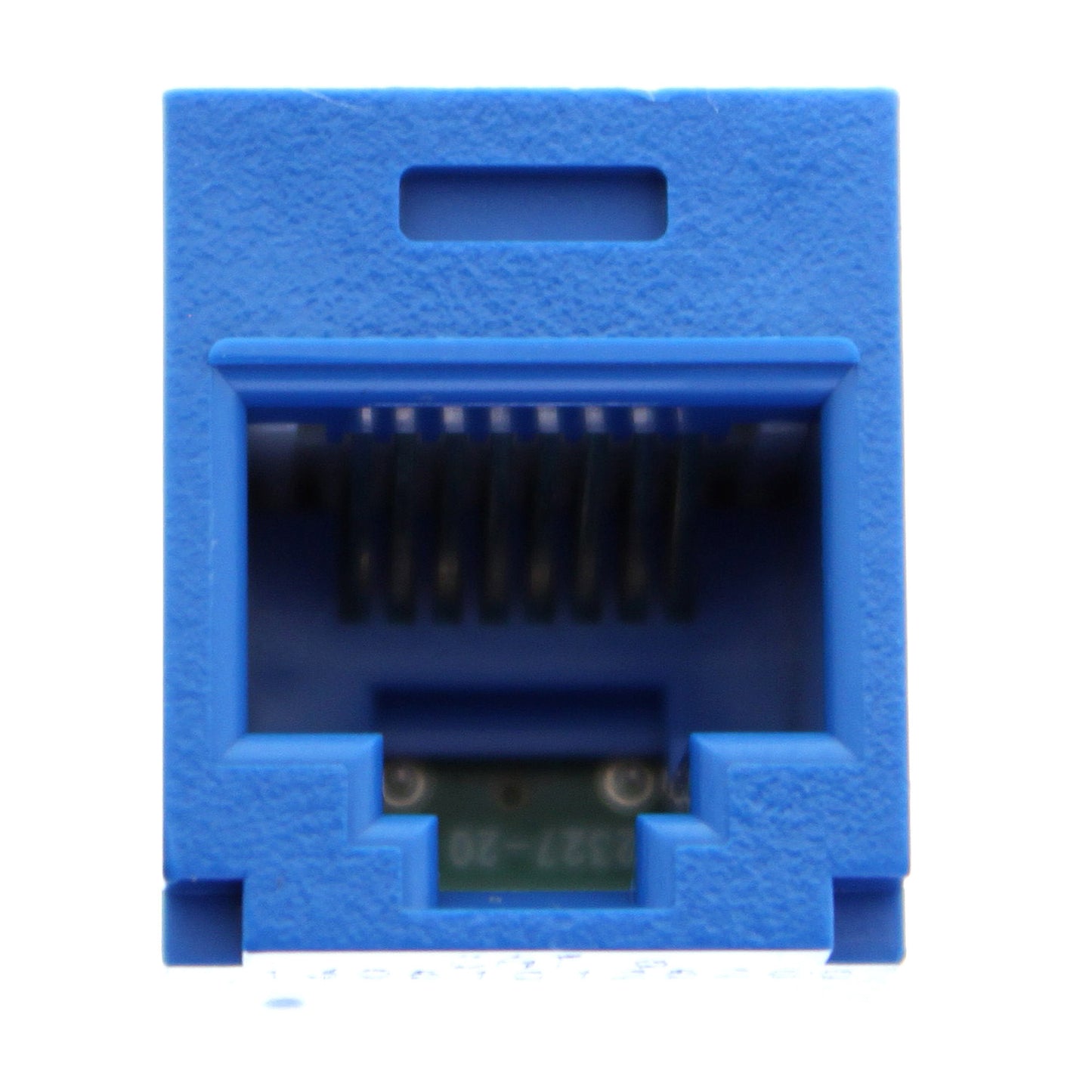

PANDUIT CJ688TGBU MINI-COM TX6 8-POSITION UNIVERSAL UTP RJ45 JACK MODULE

Features:

• Mini-Com TX6 UTP Jack Module with Enhanced Giga TX Termination Style

• 100% tested for top NEXT and RL performance and individually serialized for traceability

• Plated with 50 micro Inch of gold for superior performance

• Improved termination cap conductor retention slots simplify jack module termination


• Mini-Com TX6 PLUS UTP Jack Modules are a component of the TX6 PLUS UTP Copper Cabling System. This end-to-end system is interoperable and backwards compatible, providing design flexibility to protect network investments well into the future. With certified performance to the ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards, this system is ideal for today's high performance workstation applications. With certified performance to the ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Edition 2.1 standards, these systems will support the following applications: Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM; Token Ring 4/16; Digital video and broadband/baseband analog video; Voice over Internet Protocol (VoIP)

Color: Blue

Condition: New

Dims: 1.5-Inches x 0.8-Inches x 0.6-Inches (Length Width Height)

Model: CJ688TGBU

Package quantity: 1
