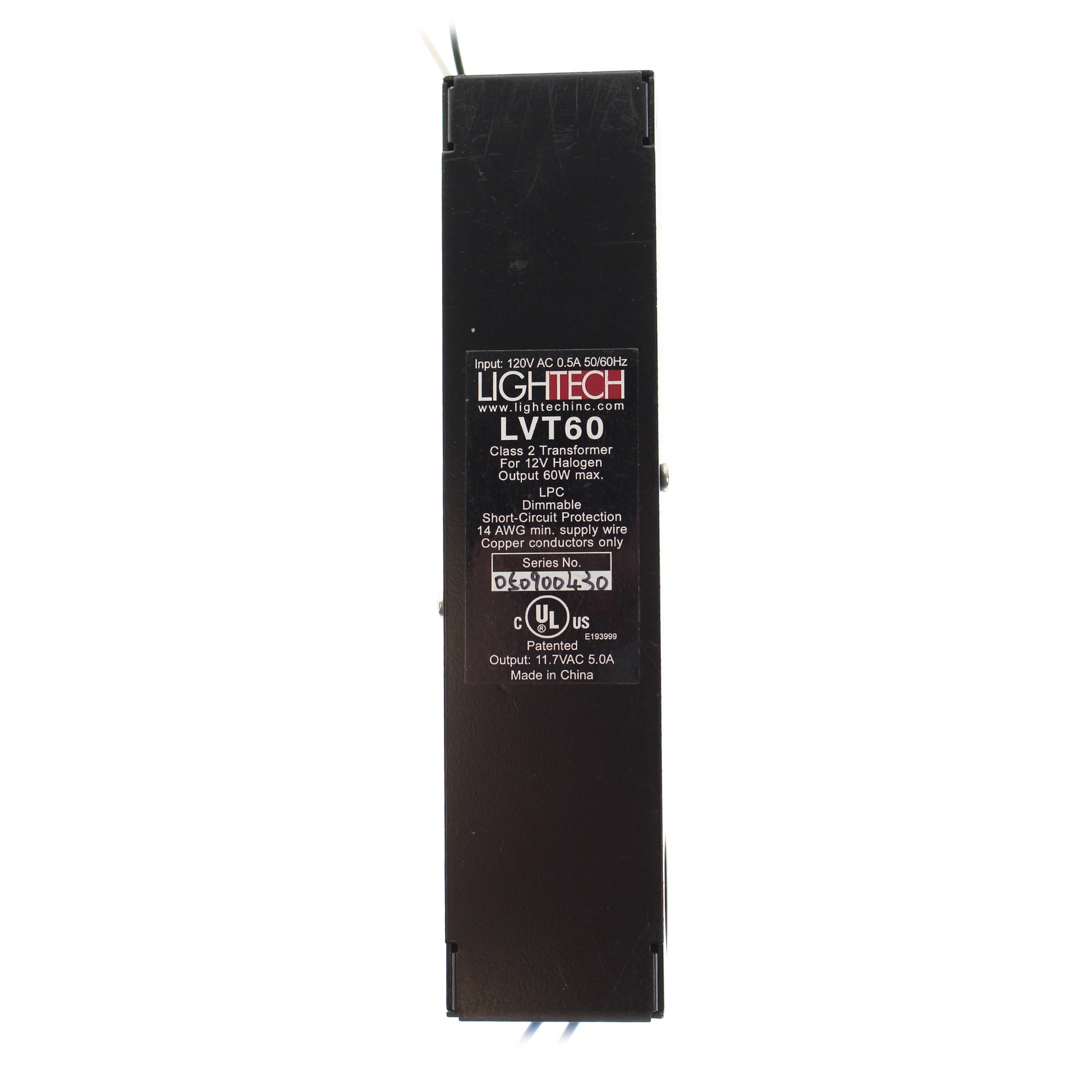

LIGHTECH LVT60 LOW-VOLTAGE DIMMABLE TRANSFORMER, 120V-IN, 12VAC @ 60W OUT
LIGHTECH LVT60 LOW-VOLTAGE DIMMABLE TRANSFORMER, 120V-IN, 12VAC @ 60W OUT
$5900
Save $20.45
Request Special Pricing
Couldn't load pickup availability
Product information
ENCLOSED HOUSING Dimensions 6 1/2" x 1 3/8" x 1 1/2" Weight 3 ounces Lead wire length 6" T 40°C Max. case temp. 90°C Max. ambient temp. 50°C Output wire - Blue - 14AWG 200°C Input wire - White/Black - 18AWG 150°C Aluminum casing Maximum load 60W Minimum load w/o dimmer 10W Minimum load with dimmer 20W Input 120V 60Hz Output at max. load 11.75V 40kHz Input current at max. load 0.5A Output current at max. load 5A Power factor min. 0.95 DimmableFeatures:
- Class 2 Transformer
- For 12V Halogen
- Dimmable Short-Circuit Protection
- 14 AWG min supply wire
- 120V AC, 0.5A, 50/60 Hz
- ENCLOSED HOUSING Dimensions 6 1/2" x 1 3/8" x 1 1/2" Weight 3 ounces Lead wire length 6" T 40°C Max. case temp. 90°C Max. ambient temp. 50°C Output wire - Blue - 14AWG 200°C Input wire - White/Black - 18AWG 150°C Aluminum casing Maximum load 60W Minimum load w/o dimmer 10W Minimum load with dimmer 20W Input 120V 60Hz Output at max. load 11.75V 40kHz Input current at max. load 0.5A Output current at max. load 5A Power factor min. 0.95 Dimmable
Color: Black
Condition: New
Dims: 1.50-Inches x 1.50-Inches x 6.50-Inches (Length Width Height)
Model: LVT60
Package quantity: 1
VWA: 12-Volt 60-Watts
